350588-1
| Manufacturer | |
| Description | Conn Power HDR 15 POS 6.35mm Solder ST Thru-Hole 15 Terminal 1 Port Universal MATE-N-LOK Connectors CONN HEADER 15POS VERT .250 TIN Pin & Socket Connectors 15P PIN HEADER 92VO Conn Power HDR 15 POS 6.35mm Solder ST Thru-Hole 15 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 15Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 15P UMNL PIN HDR ASSY V2 NATL |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | Leadfree Defin | Wave solder capable to 240°C / Wave solder capable to 260°C / Wave solder capabl |
| Standard Number | UL | RoHSELV Compliance | RoHS compliant / ELV compliant |
| UL Flammability Rating | UL 94V-2 | Approval Agency Marking | 是 |
| Material Flammability Rating | UL 94V-2 | ||
Electrical
| Voltage | 600.0 | Voltage Rating | 600 V |
| Voltage - Supply | 600 | Current Rating (Max) | 19 |
| Voltage - Supply (Min) | 600VAC | Current - Output High, Low | No |
Mechanical
| Color | Natural | Pitch | 6.35 mm |
| Height | 14.73 mm | Sealed | Not Sealed |
| Packaging | Bulk | Row Spacing | 0.250" (6.35mm) |
| Termination | Solder | Contact Type | Pin |
| Mounting Type | Through Hole | Connector Type | Header |
| Contact Finish | Tin | Fastening Type | Positive Lock |
| Mounting Style | Through Hole | Number of Pins | 15 |
| Number of Rows | 3 | Package / Case | Receptacle |
| Connector Style | Plug | Contact Material | Phosphor Bronze |
| Housing Material | Nylon | Package Quantity | 50 |
| Panel Mount Type | 通孔 - 焊接 | Primary Material | Phosphor Bronze |
| Termination Style | Solder | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 15 | Contact Termination | Through Hole |
| Number of Positions | 15 | Row Spacing - Mating | 6.35 |
| Center Contact Finish | 6.35 | Compatible Shell Size | 与插头护套插接（使用插座端子） |
| Mounting Hole Diameter | 带有 | Contact Finish - Mating | 预镀锡 |
| Contact Layout, Typical | Matrix | Termination Post Length | 5.97 |
| Contact Finish Thickness | 2.54 µm [ 100 µin ] | Recovered Wall Thickness | 3.18 |
| Contact Material - Mating | Pre-Tin | Static Discharge Shielding | 不带 |
| Jacket (Insulation) Thickness | 1.27 µm [ 50 µin ] | ||
Product Info
| Type | Power | Gender | HDR |
| Series | Universal MATE-N-LOK | Sealable | No |
| Product Type | Connector | Number of Ports | 1 Port |
| Other Specifications | Printed Circuit Board | Application Specifics | Power |
| Assembly Configuration | Without | Number of Positions Loaded | All |
Environmental
| Mating Cycles | With | Temperature - Test | 标准件 - 非灼热丝 |
| Operating Temperature | -40 – 105 °C [ -40 – 221 °F ] | Thermal Resistance of Package | 1.57 mm [ .062 in ] |
Documents & Media
Similar Parts
1-480710-1
te connectivity / amp
Conn Housing PL 15 POS 6.35mm Crimp ST Cable Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 15POS UNIV-M-N-L BROWN Power to the Board PLUG 15P BROWN Conn Housing PL 15 POS 6.35mm Crimp ST Cable Mount Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 15Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 15P UMNL PLUG HSG BRN
1-480710-8
te connectivity / amp
Conn Housing PL 15 POS 6.35mm Crimp ST Cable Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 15POS UNIV-M-N-L GRAY
1-480710-3
te connectivity / amp
Conn Housing PL 15 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 15POS UNIV-M-N-L ORNG
350736-1
te connectivity / amp
Conn Housing PL 15 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 15POS 94V-0 UNI-MATE 15 way white plug housing Pin & Socket Connectors PLUG HOUSE 15 POS Conn Housing PL 15 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 15Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG HOUSING, 15WAY Connector,SoftShell;UniversalMATE-N-LOK;15;Plug;Nylon;White;19A Plug; wire-board; male/female; w/o terminals; 6.35mm; PIN:15; 600V Crimp housing Pitch6.35 mm Poles 15 MATE-N-LOK Universal, 350736-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 3 行 6.35mm 节距 15 路 直 公 压接连接器外壳 15P UMNL PLUG HSG
1-350849-5
te connectivity / amp
Conn Power RCP 15 POS 6.35mm ST Cable Mount 15 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN TEST CAP 15POS UNIV M-N-L

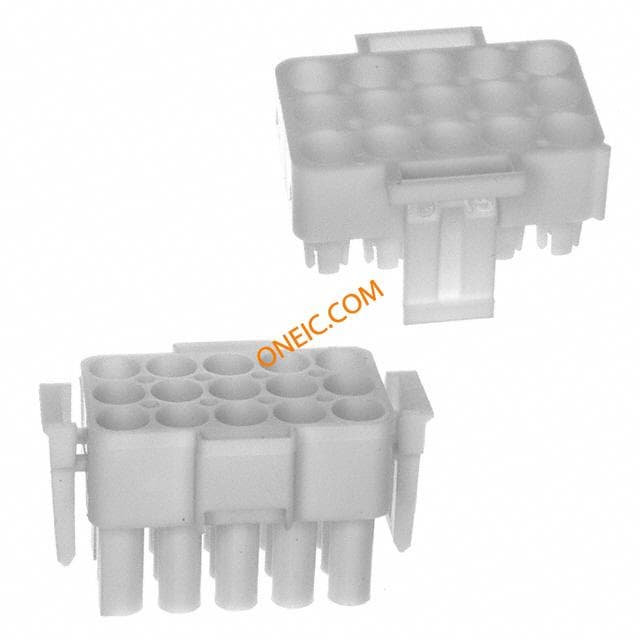

770023-1
te connectivity / amp
Conn Housing PL 15 POS 6.35mm ST Bulk .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 15POS UMNL-II (2PC) Housing,plug,kit,Mate-n-lokII,15Way Pin & Socket Connectors 15 MATRIX PLUG Conn Housing PL 15 POS 6.35mm ST Bulk Product Highlights:HousingUniversal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 15Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Connector,SoftShell;UniversalMATE-N-LOKII;15;Plug;Nylon;White;31A Crimp housing Pitch6.35 mm Poles 15 MATE-N-LOK Universal, 770023-1, TE Connectivity TE Connectivity Universal MATE-N-LOK II 系列 3 行 6.35mm 节距 15 路 直 公 压接连接器外壳 15P UMNLII IN-LNE PLUG HSG KIT
1-480710-9
te connectivity / amp
Conn Housing PL 15 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL PLUG 15POS 94V-2 BLK Pin & Socket Connectors 15P PLG HSG BLK Conn Housing PL 15 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 15Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Universal MATE-N-LOK 15 Position Free Hanging Pin or Socket Housing Connector 15P UMNL PLUG HSG BLK
1-480710-0
te connectivity / amp
Conn Housing PL 15 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 15POS 94V-2 UNI-MATE Housing,plug,free hanging,15way Pin & Socket Connectors PLUG HOUSE 15 POS Conn Housing PL 15 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 15Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG HOUSING, 15WAY Connector,SoftShell;UniversalMATE-N-LOK;15;Plug;Nylon;Black;19A Plug; wire-board; male/female; w/o terminals; 6.35mm; PIN:15; 600V Crimp housing Pitch6.35 mm Poles 15 MATE-N-LOK Universal, 1-480710-0, TE Connectivity 15P UMNL PLUG HSG NATL

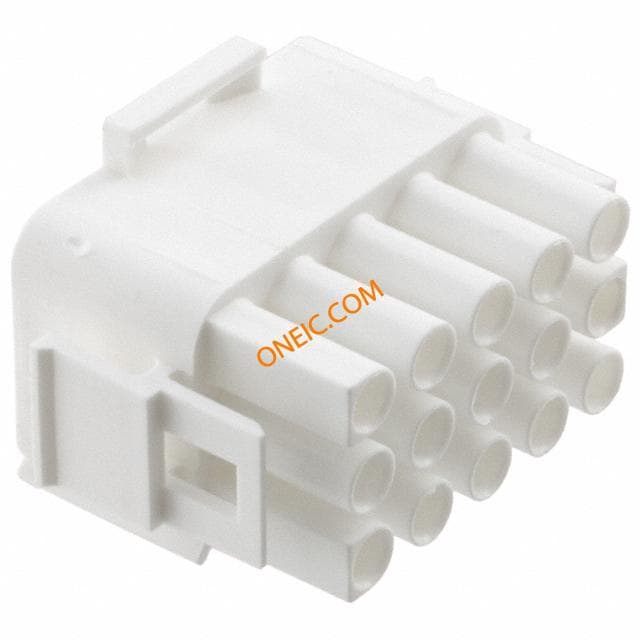

350736-4
