1-480710-1
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Power to the Board | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | CSA File Number | LR7189 |
| Standard Number | CSA, UL | CSA Certification | Certified |
| UL Flammability Rating | UL 94V-2 | Approval Agency Marking | 是 |
Electrical
| Voltage Rating | 600 V | Voltage - Supply | 600 |
| Current Rating (Max) | 36 A | ||
Mechanical
| Color | Brown | Pitch | 6.35 mm |
| Sealed | Not Sealed | Packaging | Bulk |
| Body Color | 褐色 | Wire Gauge | 10-30 AWG |
| Row Spacing | 0.250" (6.35mm) | Contact Type | Male or Female |
| Mounting Type | Straight | Connector Type | Plug |
| Contact Finish | Without | Fastening Type | Latch Lock |
| Number of Rows | 3 | Package / Case | Plug |
| Height (Inches) | 27.43 | Housing Material | Nylon |
| Package Quantity | 1 | Number of Contacts | 15 |
| Contact Termination | Crimp | Number of Positions | 15 |
| Compatible Shell Size | 适当的通用 MATE-N-LOK 母端或公端 | Contact Layout, Typical | 矩阵 |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Product Type | Plug Housings |
| Assembly Configuration | Without | ||
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | - 55 C to + 125 C |
Documents & Media
Online Document
Similar Parts

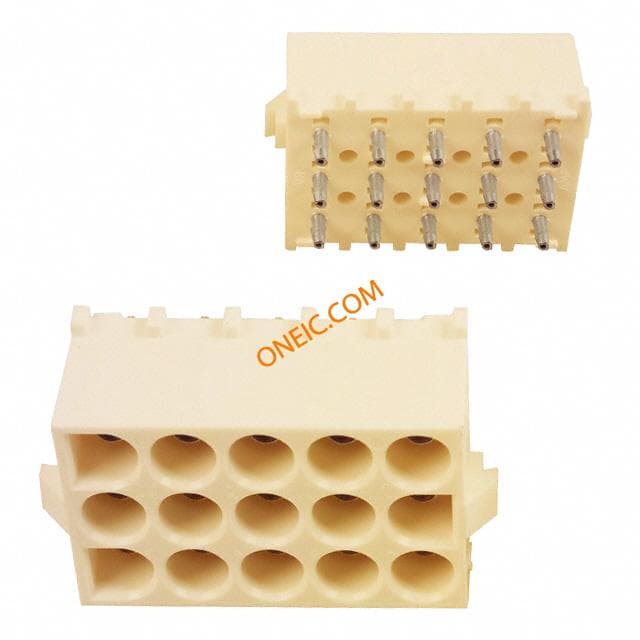

641975-1
te connectivity / amp
$11.3174
Details
350765-4
te connectivity / amp
$9.9824
Details
1-350849-5
te connectivity / amp
Details
643430-1
te connectivity / amp
$20.0797
Details
1-350714-1
te connectivity / amp
Details
350830-4
te connectivity / amp
$48.0353
Details
350588-1
te connectivity / amp
$15.7080
Details
350434-4
te connectivity / amp
$41.9560
Details
350434-1
te connectivity / amp
$6.3920
Details
350714-1
te connectivity / amp
$11.5600
Details
1-480711-1
te connectivity / amp
$2.4806
Details
1-480711-5
te connectivity / amp
Details
1-480711-8
te connectivity / amp
Details
643429-1
te connectivity / amp
$10.4802
Details

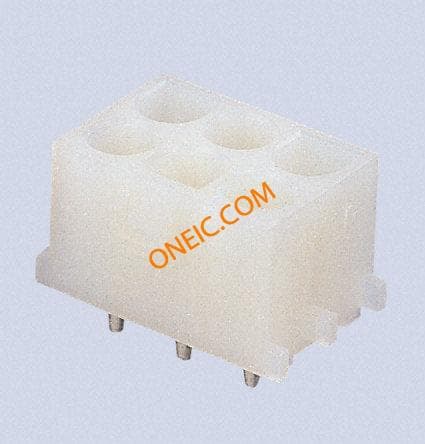

350714-4
