3-644382-3
| Manufacturer | |
| Description | Conn IDC Connector F 3 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 3POS 20AWG MTA-156 03P MTA156 QUAD ASSY W/TB LF 03P MTA156 QUAD ASSY W/TB LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP |
| Category |
Business
| Standard Pack | 1 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Mechanical
| Color | Black | Pitch | 3.96 mm |
| Packaging | Bulk | Shrouding | No |
| Wire Type | Discrete or Ribbon Cable | Cable Exit | 90° |
| Wire Gauge | 20 AWG | Termination | IDT |
| Contact Type | Female Socket | Polarization | Polarizing Tab |
| 2nd Connector | With | Housing Color | Black |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Closed End |
| Contact Finish | Bright Tin | Fastening Type | Locking Ramp |
| Number of Rows | 1 | Connector Usage | Receptacle |
| Locking Feature | Locking Ramp | Contact Material | High Conductivity Copper Alloy |
| Housing Material | Nylon | Mounting Feature | Without |
| Package Quantity | 500 | Panel Mount Type | Without |
| Cable Termination | IDC | Mating Orientation | With |
| Number of Contacts | 3 | Number of Positions | 3 |
| Contact Finish Thickness | 80µin (2.03µm) | Small Diameter Recovered | No |
| Wire Gauge or Range - mm2 | 0.5-0.6² [20] | ||
Product Info
| Note | Mates with tin-plated square posts only | Type | IDC Connector |
| Gender | F | Features | Closed End, Polarizing Key |
| Manufacturer | AMP | Product Type | MTA-156 Connectors |
| Connection Type | Wire | Number of Positions Omitted | None |
Similar Parts
3-641208-3
te connectivity / amp
Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 3POS .156 30 GOLD TE Connectivity MTA-156 Series 3.96mm Pitch 3 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings FRCTN LK HDR STR 3P Square post gold Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole Product Highlights:3 PositionsWith ContactsHousing Gender = Header - PinContact Gender = PinMTA-156 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-156HEADERGOLD,03PMTA156HDRASSYFLSTLF TE Connectivity MTA-156 系列 3.96mm节距 3路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 03P MTA156 HDR ASSY FL ST LF
640445-3
te connectivity / amp
Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 3POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 3 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings FRCTN LK HDR STR 3P Square post tin Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 3Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, VERTICAL, 0.156", 3WAY Connector,MTA-156;Male;3;CopperAlloy;7;600;0.156in.;Polyester;White Connector: wire-board; Series: MTA-156; 3.96mm; male; socket; PIN:3 Pin header straight 3P, 640445-3, TE Connectivity TE Connectivity MTA-156 系列 3.96mm节距 3路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 03P MTA156 HDR ASSY FL/STR SN
644749-8
te connectivity / amp
Conn Unshrouded Header HDR 8 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 3POS VERT .156 TIN Headers & Wire Housings 156IDCW HDR 1X08P VRT T/H Conn Unshrouded Header HDR 8 POS 3.96mm Solder ST Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 08P MTA156 HDR ASSY STR SQ SN
641208-3
te connectivity / amp
Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT .156 3POS 30AU Headers & Wire Housings FRCTN LK HDR STR 3P Square post gold Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 3Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA156 HDR ASSY FL ST 30AU
643067-3
te connectivity / amp
Connector Accessories 3 POS Strain Relief Closed End Cover Nylon White MTA, CST and SL Accessories CONN STRAIN RELIEF COVER 3POS Headers & Wire Housings STRAIN RLF COVER 3P Closed End Connector Accessories 3 POS Strain Relief Closed End Cover Nylon White Product Highlights:Strain Relief CoversWithout Panel AttachmentCover Style = Closed EndNumber of Positions = 3Used For MTA-156 ConnectorsSearch Keywords:Keying plug type, PCB, Wire-to-Board, .050 Centerline, IDC, Discrete Wire Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CLOSED END STRAIN RELIEF COVER, NYLON DustCover,ClosedEnd;MTA-156Connectors;Nylon;3;ClosedEnd;AMP Cover with strain relief 3P, 643067-3, TE Connectivity 03P MTA156 MOLDED COVER
640389-3
te connectivity / amp
Conn Wire to Board HDR 3 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 3POS .156 TIN Headers & Wire Housings FRCTN LK HDR RA 3P Square post tin Conn Wire to Board HDR 3 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 3Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, RIGHT ANGLE, 0.156", 3WAY Connector,MTA-156;Male;3;CopperAlloy;7;600;0.156in.;Polyester;White TE Connectivity MTA-156 系列 3.96mm节距 3路 (1排) 直角 PCB 针座, 焊接端接, 7A , 通孔 03P MTA156 HDR ASSY SQ R/A F/L
644749-3
te connectivity / amp
Conn Unshrouded Header HDR 3 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 3POS .156 STR TIN Headers & Wire Housings 03P MTA156 HDR ASSY Conn Unshrouded Header HDR 3 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 3Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA156 HDR ASSY STR SQ SN
644759-3
te connectivity / amp
Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 3POS VERT .156 GOLD Headers & Wire Housings 3P MTA156 HEADER
644752-3
te connectivity / amp
Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 3POS .156 TIN Headers & Wire Housings 03P MTA156 HDR ASSY Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole Product Highlights:Connector3 PositionsConnector Type = Header - PinMTA-156 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 3POS, 3.96MM MTA-156HEADER-TIN,03PMTA156HDRASSYSQSTRF/L 03P MTA156 HDR ASSY SQ STR F/L
641210-3
te connectivity / amp
Conn Wire to Board HDR 3 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .156 3POS 30AU Headers & Wire Housings FRCTN LK HDR RA 3P Square post gold Conn Wire to Board HDR 3 POS 3.96mm Solder RA Thru-Hole Product Highlights:3 PositionsPreloadedHousing Gender = Header - PinContact Gender = PinMTA-156 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA156 HRD FL RA FB 30AU
640385-3
te connectivity / amp
Conn Unshrouded Header HDR 3 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 3POS .156 TIN Headers & Wire Housings FLAT HEADER R.A. 3P Square post tin Conn Unshrouded Header HDR 3 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 3Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA156 HDR ASSY SQ R/A
640383-3
te connectivity / amp
Conn Unshrouded Header HDR 3 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 3POS .156 TIN Headers & Wire Housings FLAT HEADER STRT 3P Square post tin Conn Unshrouded Header HDR 3 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 3Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONN, HEADER, 3WAY, 0.156IN 03P MTA156 HDR ASSY STR SQ SN

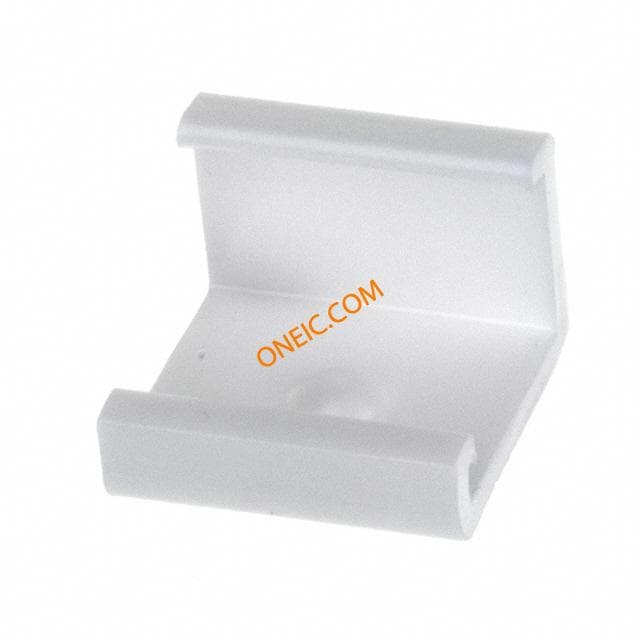

640551-3
