点击放大查看
644749-3
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 3 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 3POS .156 STR TIN Headers & Wire Housings 03P MTA156 HDR ASSY Conn Unshrouded Header HDR 3 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 3Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA156 HDR ASSY STR SQ SN |
| Category |
Business
| Other Names | 6447493 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 2000 |
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | CSA File Number | LR7189 |
| Standard Number | CSA, UL | CSA Certification | Certified |
| UL Flammability Rating | UL 94V-0 | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 600 V | Voltage - Supply | 600 |
| Current Rating (Max) | 7 A | ||
Mechanical
| Color | Natural | Pitch | 3.96 mm |
| Height | 13.34 mm [ .525 in ] | Length | 11.89 mm [ .468 in ] |
| Sealed | Not Sealed | Packaging | Bulk |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Through Hole | Connector Type | Header, Unshrouded |
| Contact Finish | Tin | Contact Timing | Without |
| Mounting Style | 不带 | Number of Pins | 3 |
| Number of Rows | 1 | Package / Case | Plug |
| Plating - Body | Nickel | Insert Material | 铜合金 |
| Contact Material | Copper Alloy | Housing Material | Polyester |
| Package Quantity | 1 | Panel Mount Type | 通孔 - 焊接 |
| Termination Style | Through Hole | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 3 | Number of Positions | 3 |
| Compatible Shell Size | MTA .156 连接器组件 | Mounting Hole Diameter | 不带 |
| Contact Finish - Mating | 锡 | Contact Layout, Typical | 直插式 |
| Contact Length - Mating | 0.400" (10.16mm) | Termination Post Length | 4.45 mm |
| Static Discharge Shielding | 不带 | ||
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Series | MTA-156 | Product Type | Headers |
| Application Specifics | Wire-to-Board | Number of Positions Loaded | All |
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] |
Documents & Media
Similar Parts
3-644783-3
te connectivity / amp
Conn IDC Connector F 3 POS 3.96mm IDT RA Cable Mount T/R MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 3POS 22AWG .156 RED Headers & Wire Housings 03P MTA156 ASSY ON 03P MTA156 ASSY ON TAPE LF
3-640606-3
te connectivity / amp
Conn IDC Connector F 3 POS 3.96mm IDT RA Cable Mount Headers & Wire Housings FEED THRU WO TAB 3P Red 22 AWG MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3POS 22AWG MTA156 03P MTA156 CONN ASSY 22AWG LF 03P MTA156 CONN ASSY 22AWG LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
640601-3
te connectivity / amp
Conn IDC Connector F 3 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3POS 22AWG MTA156 Headers & Wire Housings FEED THRU WO TAB 3P L.R. red 22 AWG Conn IDC Connector F 3 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 ConnectorsNumber of Positions = 3Mating Type = ReceptacleConnector Type = Feed ThruWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA156 CONN ASSY 22AWG RED
640606-3
te connectivity / amp
Conn IDC Connector F 3 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3POS 22AWG MTA156 Headers & Wire Housings FEED THRU WO TAB 3P Red 22 AWG Conn IDC Connector F 3 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 ConnectorsNumber of Positions = 3Mating Type = ReceptacleConnector Type = Feed ThruWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA156 CONN ASSY 22AWG RED
3-640601-3
te connectivity / amp
Conn IDC Connector F 3 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3POS 22AWG MTA156 Headers & Wire Housings FEED THRU WO TAB 3P L.R. red 22 AWG Conn IDC Connector F 3 POS 3.96mm IDT RA Cable Mount Product Highlights:3 PositionsPreloadedHousing Gender = PlugContact Gender = ReceptacleConnector Style = Feed ThroughSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 3POS, 3.96MM 03P MTA156 CONN ASSY 22AWG LF
640430-3
te connectivity / amp
Conn IDC Connector F 3 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3POS 26AWG MTA156 Headers & Wire Housings 03P MTA156 CONN ASSY 26AWG BLU Conn IDC Connector F 3 POS 3.96mm IDT RA Cable Mount Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA156 CONN ASSY 26AWG BLU
643818-3
te connectivity / amp
Conn IDC Connector F 3 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3POS 20AWG MTA156 Headers & Wire Housings CLOSED WITH TABS 3P L.R. yellow 20 AWG Conn IDC Connector F 3 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 ConnectorsNumber of Positions = 3Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA156 CONN ASSY 20AWG YEL

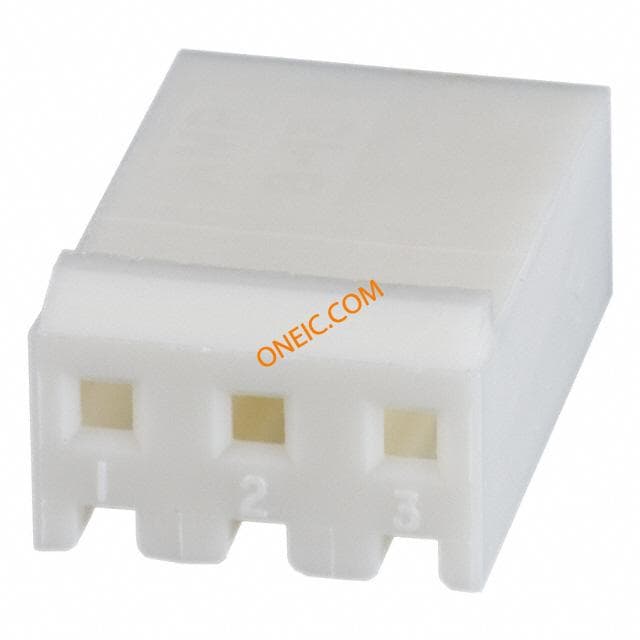

640250-3
