3-640440-8
| Manufacturer | |
| Description | Conn IDC Connector F 8 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 8POS 22AWG MTA100 8 way MTA cable mount skt,2.54mm 22awg Headers & Wire Housings CLOSED W/O TABS 8P RED TIN 22AWG Conn IDC Connector F 8 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 8Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board Application, Wire-to-Wire ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HOUSING, 22AWG, 8WAY IDCReceptacle,Closed-EndWithoutPolarizingTab,22AWG,Red,8pos. Connector: wire-board; MTA-100; plug; female; PIN:8; tinned; 2.54mm Cable socket, straight 8P, 3-640440-8, TE Connectivity TE Connectivity MTA-156 系列 8路 2.54mm节距 直角 电缆安装 母 IDC 连接器 08P MTA100 CONN ASSY 22AWG RED |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | Approval Agency | :CSA, UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-2 |
Electrical
| Range deg/s | :TE - MTA-100 Series | Voltage Rating | 250 V ac |
| Switch Function | Ramp Lock | Contact Resistance | 6 mohm |
| Voltage - Rated AC | 250 | Current Rating (Max) | 5A |
| Voltage - Supply (Min) | 250VAC | Contact Rating (Current) | :4A |
Mechanical
| Color | Red | Depth | 6.99 mm |
| Pitch | 2.54 mm | Height | 13.21 mm |
| Weight | 0.002 | Packaging | Bulk |
| Shrouding | No | Wire Type | Discrete or Ribbon Cable |
| Cable Exit | 90° | Wire Gauge | 22 AWG |
| Termination | IDT | Contact Type | Female Socket |
| Lead Spacing | :2.54mm | Pitch - Post | 2.54mm |
| 2nd Connector | With | Body Material | polyamide |
| Housing Color | Red | Mounting Type | Free Hanging (In-Line) |
| Angle of Throw | Straight | Connector Type | Closed End |
| Contact Finish | Tin Over Nickel | Fastening Type | Locking Ramp |
| Mounting Style | Wire | Number of Rows | 1 |
| Package / Case | :Thermoplastic | Connector Usage | Receptacle |
| Contact Material | Copper Alloy | Housing Material | Nylon |
| Length - Overall | 20.32 mm | Mounting Feature | Without |
| Package Quantity | Loose Piece | Panel Mount Type | Without |
| Primary Material | InterconnectSystem | Cable Termination | IDC |
| Connector - Cable | plug | Pin Hole Diameter | 0.1" |
| Termination Style | IDC | 1st Contact Gender | Socket (Female) |
| Color - Connectors | :Red | Mating Orientation | Without |
| Number of Contacts | 8 | Contact Termination | :IDC / IDT |
| Insulation Diameter | 0.06"(Wire) | Number of Positions | 8 |
| Contact Layout, Typical | 2.54 [0.100] | Contact Finish Thickness | 80µin (2.03µm) |
| Small Diameter Recovered | No | Wire Gauge or Range - mm2 | 0.3-0.4² [22] |
| Contact Material - Plating | tinned | 1st Connector Mounting Type | :PC Board |
| 1st Connector Mounting Feature | 1x8 | ||
Product Info
| Spg | 1 | Type | IDC Connector |
| Gender | F | Series | MTA-100 |
| Features | Closed End | Manufacturer | AMP |
| Product Type | MTA-100 Connectors | Adapter Series | MTA-100 |
| Connection Type | Wire | Number of Units | 1 |
| Tool Type Feature | 59803-1 | Number of Positions Omitted | None |
Environmental
| Operating Temperature | +105°C | ||
Documents & Media
Similar Parts
3-647009-8
te connectivity / amp
Conn IDC Connector F 8 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 8POS 24AWG .100 WHITE
3-647011-8
te connectivity / amp
Conn IDC Connector F 8 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 8POS 28AWG .100 GREEN
640453-8
te connectivity / amp

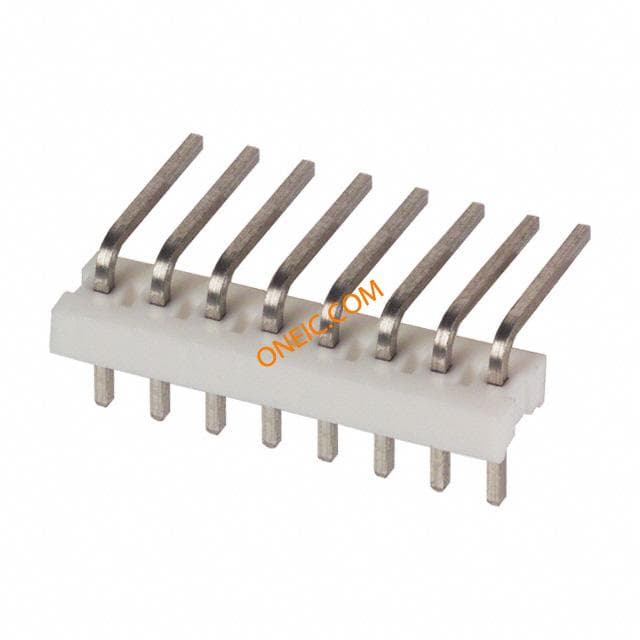

Conn Unshrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 8POS .100 TIN TE Connectivity MTA-100 Series 2.54mm Pitch 8 Way 1 Row Right Angle PCB Header, Solder Termination, 5A Headers & Wire Housings FLAT HEADER 8P Right Angle Post tin Conn Unshrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 8Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER, 8WAY, 0.1IN Header;MTA-100;8;250VAC;Polyester;Tin;CopperAlloy;0.100in.;Tin;AMP TE Connectivity MTA-100 系列 2.54mm节距 8路 (1排) 直角 PCB 针座, 焊接端接, 5A , 通孔 08P MTA100 HDR ASSY SQ R/A
641212-8
te connectivity / amp
Conn Unshrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 8POS R/A .100 30GOLD Headers & Wire Housings 08P MTA100 HDR ASSY PL RA 30AU MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:Connector8 PositionsConnector Type = Header - PinMTA-100 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
641216-8
te connectivity / amp
Conn Wire to Board HDR 8 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .100 8POS 30AU Headers & Wire Housings FRICTION LCK HDR 8P R.A. Post gold Conn Wire to Board HDR 8 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 8Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 08P MTA100 HDR ASSY FL/RA 30AU
643606-7
te connectivity / amp
Conn Wire to Board HDR 8 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 8POS VERT .100 TIN
3-641215-8
te connectivity / amp
Conn Wire to Board HDR 8 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 8POS .100 30AU Header Vert 8 way Pin MTA-100 Headers & Wire Housings FRICTION LCK HDR 8P Straight Post gold Conn Wire to Board HDR 8 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 8Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 8POS, 2.54MM MTA-100HEADERGOLD,08PMTA100HDRASSYFL/ST30AU TE Connectivity MTA-100 系列 2.54mm节距 8路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 08P MTA100 HDR ASSY FL/ST 30AU
641127-8
te connectivity / amp
Conn Wire to Board HDR 8 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 8POS R/A .100 15GOLD
2-644861-8
te connectivity / amp
Conn Shrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings HDR 08P VRT SHROUD MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 8POS .100 TIN Header 8 way pin 2.54mm MTA-100 Conn Shrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 8POS, 2.54MM Header8waypin2.54mmMTA-100 TE Connectivity MTA-100 系列 8路 2.54mm节距 公 IDC 连接器 , 通孔 08P MTA100 SHRD HDR,W/O PEG SN
641214-8
te connectivity / amp
Conn Wire to Board HDR 8 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .100 8POS 30AU Conn Wire to Board HDR 8 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 8Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline Spacing
644875-8
te connectivity / amp
Conn Wire to Board HDR 8 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 8POS R/A .100 TIN Headers & Wire Housings 08P MTA100 HDR ASSY F/L SP BND 08P MTA100 HDR ASSY F/L,SP BND 08P MTA100 HDR ASSY F/L,SP BND Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
640455-8
te connectivity / amp

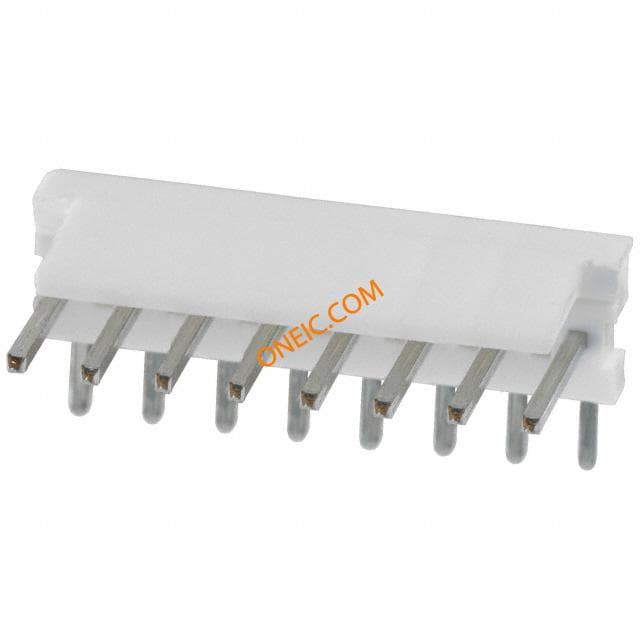

Conn Wire to Board HDR 8 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 8POS .100 TIN Headers & Wire Housings POLARIZED HEADER 8P Right Angle Post tin Conn Wire to Board HDR 8 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 8Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP TE Connectivity MTA-100 系列 2.54mm节距 8路 (1排) 直角 PCB 针座, 焊接端接, 5A , 通孔 08P MTA100 HDR ASSY SQ R/A POL
