3-647009-8
| Manufacturer | |
| Description | Conn IDC Connector F 8 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 8POS 24AWG .100 WHITE |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-2 |
Electrical
| Voltage - Rated AC | 250 | ||
Mechanical
| Color | White | Pitch | 2.54 mm |
| Packaging | Bulk | Shrouding | No |
| Wire Type | Discrete or Ribbon Cable | Wire Gauge | 24 AWG |
| Termination | IDT | Contact Type | Male Pin |
| 2nd Connector | Without | Housing Color | White |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Closed End |
| Contact Finish | Gold Over Nickel | Number of Rows | 1 |
| Connector Usage | Receptacle | Contact Material | Copper Alloy |
| Housing Material | Nylon | Mounting Feature | Without |
| Panel Mount Type | Without | Cable Termination | IDC |
| Mating Orientation | Without | Number of Contacts | 8 |
| Number of Positions | 8 | Contact Layout, Typical | 2.54 [0.100] |
| Contact Finish Thickness | 30µin (0.76µm) | Small Diameter Recovered | No |
| Wire Gauge or Range - mm2 | 0.2² [24] | ||
Product Info
| Type | IDC Connector | Gender | F |
| Features | Closed End | Manufacturer | AMP |
| Product Type | MTA-100 Connectors | Connection Type | Wire |
| Number of Positions Omitted | None | ||
Similar Parts
3-640440-8
te connectivity / amp
Conn IDC Connector F 8 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 8POS 22AWG MTA100 8 way MTA cable mount skt,2.54mm 22awg Headers & Wire Housings CLOSED W/O TABS 8P RED TIN 22AWG Conn IDC Connector F 8 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 8Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board Application, Wire-to-Wire ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HOUSING, 22AWG, 8WAY IDCReceptacle,Closed-EndWithoutPolarizingTab,22AWG,Red,8pos. Connector: wire-board; MTA-100; plug; female; PIN:8; tinned; 2.54mm Cable socket, straight 8P, 3-640440-8, TE Connectivity TE Connectivity MTA-156 系列 8路 2.54mm节距 直角 电缆安装 母 IDC 连接器 08P MTA100 CONN ASSY 22AWG RED
640442-8
te connectivity / amp
Conn IDC Connector F 8 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 8POS 26AWG MTA100 Headers & Wire Housings CLOSED W/O TABS 8P blue tin 26 AWG Conn IDC Connector F 8 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:Connector8 PositionsConnector Type = ReceptacleConnector Style = Closed EndMTA-100 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 08P MTA100 CONN ASSY BLU
3-640442-8
te connectivity / amp
Conn IDC Connector F 8 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 8POS 26AWG MTA100 Headers & Wire Housings CLOSED W/O TABS 8P blue tin 26 AWG Conn IDC Connector F 8 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 8Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HOUSING, 26AWG, 8WAY 08PMTA100CONNASSYBLU 08P MTA100 CONN ASSY BLU

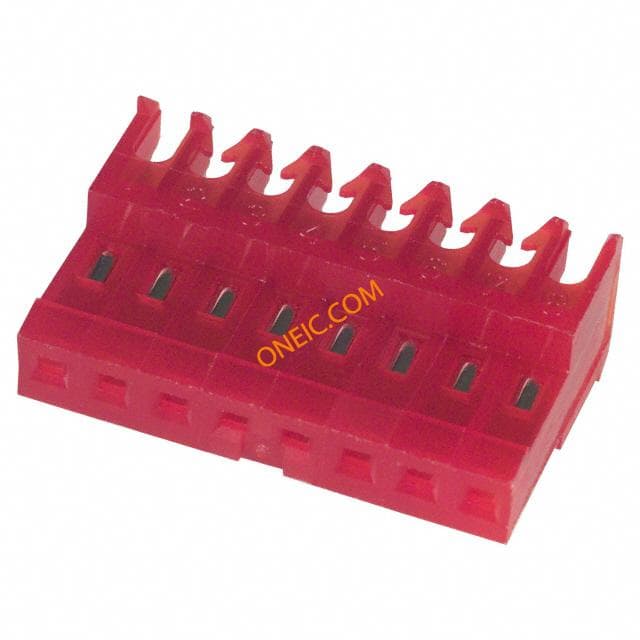

3-640620-8
