3-640252-1
| Manufacturer | |
| Description | Contact SKT Crimp ST Cable Mount Strip MTA, CST, CST-100 II and SL Contacts CONN SOCKET 18-24AWG SL156 TIN Contact 18-24awg brass H/F Strip Headers & Wire Housings SKT 24-18 BR/SN Reel of 7000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:SL-156 ContactsWire Termination Type = CrimpBright Tin Contact Mating Area Plating MaterialWire Size = 0.9-0.2² [18-24] mm² [AWG]Used For SL-156 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CONTACT, FEMALE, 24AWG CONTACT, CRIMP, SOCKET, 24-18AWG, REEL CONTACT,SL-156,18-24AWG,CRIMP TE Connectivity SL-156 系列 母 压接接线端子, 压接, 镀锡镀镍触点 045 POST CONT 0126PTPBR |
| Category |
Business
| Other Names | A31395CT | Part # Aliases | 3-640252-1 |
| Product Category | Headers & Wire Housings | Standard Package | 7,000 |
| Factory Pack Quantity | 7 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
Electrical
| Voltage Rating | 250 V | Contact Resistance | 3mΩ |
| Current Rating (Max) | 4 A | Voltage - Supply (Min) | 250VAC |
Mechanical
| Depth | 3.56 mm | Pitch | 3.96 mm |
| Weight | 0.001 | Material | :Brass |
| Packaging | Tape & Reel (TR) | Wire Gauge | 0.9-0.2² [18-24] |
| Termination | Crimp | Contact Type | Signal |
| Housing Color | Not Required | Mounting Type | Straight |
| Pin or Socket | Socket | Connector Type | Connector Headers and PCB Receptacles |
| Contact Finish | Bright Tin Over Nickel | Mounting Style | Cable |
| Plating - Body | :Bright Tin | Insertion Force | High Force |
| Operating Force | High | Contact Material | Brass |
| Housing Material | Not Required | Package Quantity | Strip |
| 1st Contact Gender | Socket (Female) | Number of Contacts | Not Required |
| Contact Termination | Crimp | Insulation Diameter | 2.79 [0.110] |
| Contact Finish Thickness | 80µin (2.03µm) | Wire Gauge or Range - AWG | :24AWG |
| Wire Gauge or Range - mm2 | :0.9mm² | Diameter - Outside, Non-Expanded | :2.79mm |
Product Info
| Note | Recommended for 1 thru 12 position housings. | Type | Contact |
| Gender | SKT | Series | SL-156 |
| CAD Drawing | 3D CAD Model | Product Type | SL-156 Contacts |
| For Use With/Related Products | SL-156 Housings | ||
Environmental
| Operating Temperature | +105°C | ||
Documents & Media
Similar Parts
770849-2
te connectivity / amp
Conn Housing RCP 2 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 2POS W/RAMP SL156 2 w housing with polarising tabs Headers & Wire Housings 2P RECP HSG SL-156 Conn Housing RCP 2 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 2Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 2POS, 3.96MM 02PSL156HSGW/LCKRMP&TABS TE Connectivity SL-156 系列 3.96mm 节距 2 路 直 母 电缆安装 压接连接器外壳 02P SL156 HSG W/LCK RMP & TABS
770981-9
te connectivity / amp
Conn Housing RCP 9 POS 3.96mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers 09P SL156 HSG W/LR,W/O #3,4,7 Headers & Wire Housings 09P SL156 HSG W/LR W/O #3 4 7 MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:SL-156 HousingsNumber of Positions = 9Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
1-770996-2
te connectivity / amp
Connector Accessories SL-156 Housings 12 POS 3.96mm Receptacle MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 12POS .156 W/TABS Headers & Wire Housings 12P SL 156HSG W/TABS W/O LR Connector Accessories SL-156 Housings 12 POS 3.96mm Receptacle Product Highlights:SL-156 HousingsNumber of Positions = 12Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 12P SL 156 HSG W/TABS W/O LR
640251-6
te connectivity / amp
Conn Housing RCP 6 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECPT 6POS W/O RAMP SL-156 Headers & Wire Housings SL-156 HOUSING 6P Conn Housing RCP 6 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 6Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 6POS, 3.96MM SL-156POSTCONHG,06PSL156HSGW/OLCKRAMP 06P SL156 HSG W/O LCK RAMP
1-640250-8
te connectivity / amp
Conn Housing RCP 18 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 18 POS W/RAMP SL-156 Headers & Wire Housings SL156 HSG W/LCK RMP Conn Housing RCP 18 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 Housings18 PositionsMating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 18P SL156 HSG W/LCK RAMP NATL
1-770849-3
te connectivity / amp
Conn Housing RCP 13 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 13POS W/RAMP SL156 Headers & Wire Housings HSG REC 1X13C STD RAMP/TAB Conn Housing RCP 13 POS 3.96mm Crimp ST Cable Mount Product Highlights:Housing13 PositionsHousing Type = ReceptacleSL-156 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 13P SL156 HSG W/LCK RMP & TABS
1-640251-4
te connectivity / amp
Conn Housing RCP 14 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 14POS W/O RAMP SL156 Headers & Wire Housings 14P RECEPTACLE Conn Housing RCP 14 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 14Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 14P SL156 HSG W/O LCK RAMP
770849-8
te connectivity / amp
Conn Housing RCP 8 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 8POS W/RAMP SL156 Headers & Wire Housings SL156 RECPT HSG 8P Conn Housing RCP 8 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 8Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 8POS, 3.96MM 08PSL156HSGW/LCKRMP&TABS 08P SL156 HSG W/LCK RMP & TABS
770849-6
te connectivity / amp
Conn Housing RCP 6 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS W/RAMP SL156 6w housing with polarising tabs Headers & Wire Housings 06P SL156 HSG W/LCK Conn Housing RCP 6 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 6Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 6POS, 3.96MM 06PSL156HSGW/LCKRMP&TABS TE Connectivity SL-156 系列 3.96mm 节距 6 路 直 母 电缆安装 压接连接器外壳 06P SL156 HSG W/LCK RMP & TABS
647402-3
te connectivity / amp

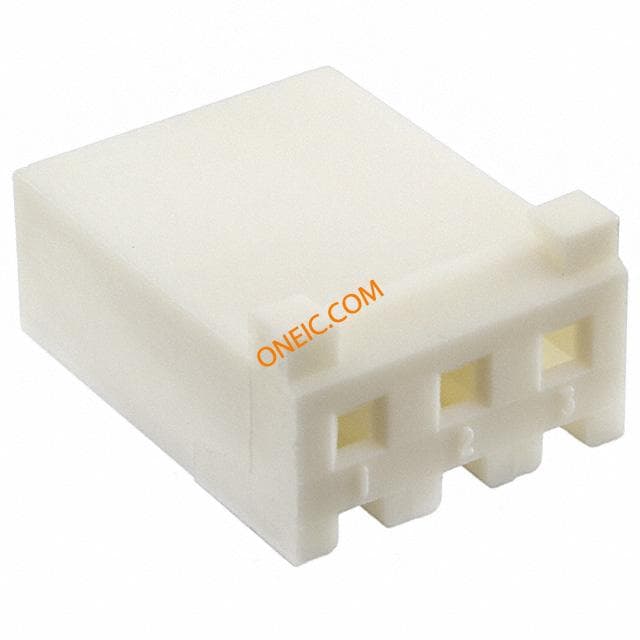

Conn Housing RCP 3 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers 03P SL156 HSG W/RMP&TABS,OVSZ Headers & Wire Housings 3P HSG W/RMP&TABS OVSZ SL156 Conn Housing RCP 3 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 3Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
