770849-6
| Manufacturer | |
| Description | Conn Housing RCP 6 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS W/RAMP SL156 6w housing with polarising tabs Headers & Wire Housings 06P SL156 HSG W/LCK Conn Housing RCP 6 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 6Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 6POS, 3.96MM 06PSL156HSGW/LCKRMP&TABS TE Connectivity SL-156 系列 3.96mm 节距 6 路 直 母 电缆安装 压接连接器外壳 06P SL156 HSG W/LCK RMP & TABS |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 500 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366910 |
| Leadfree Defin | Not relevant for lead free process | Approval Agency | CSA,UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Range deg/s | :TE - SL-156 Series | Switch Function | Locking Ramp |
| Current Rating (Max) | 10/Contact A | ||
Mechanical
| Color | Natural | Depth | 16.76mm |
| Pitch | 3.96 mm | Length | 23.7mm |
| Weight | 0.002 | Packaging | Bulk |
| Shrouding | No | Cable Exit | 180° |
| Wire Gauge | 18-24 AWG | Contact Type | Female Socket |
| Polarization | Polarizing Tab | 2nd Connector | With |
| Housing Color | White | Mounting Type | Straight |
| Angle of Throw | Straight | Connector Type | Crimp |
| Contact Finish | 3.96 [0.156] | Fastening Type | Locking Ramp |
| Mounting Style | Free Hanging | Number of Rows | 1 |
| Connector Usage | Receptacle | Locking Feature | Locking Ramp |
| Contact Material | :- | Housing Material | Nylon |
| Length - Overall | 23.7 mm | Mounting Feature | Without |
| Package Quantity | 500 | Panel Mount Type | Without |
| Primary Material | WiretoBoard | Pin Hole Diameter | 0.156" |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Mating Orientation | With | Number of Contacts | 6 |
| Contact Termination | Crimp | Insulation Diameter | Standard |
| Number of Positions | 6 | ||
Product Info
| Note | Recommended contact: Part No. 640252-1,-2 and Part No. 770476-1,-2. | Type | Housing |
| Gender | RCP | Series | SL-156 |
| Features | Polarizing Key | CAD Drawing | 3D CAD Model |
| Manufacturer | AMP | Product Type | SL-156 Housings |
| Application Specifics | Wire-to-Board | For Use With/Related Products | Wire-to-Board Economy Power Connector |
Environmental
| Operating Temperature | -55C to 105C | ||
Documents & Media
Similar Parts
640445-6
te connectivity / amp

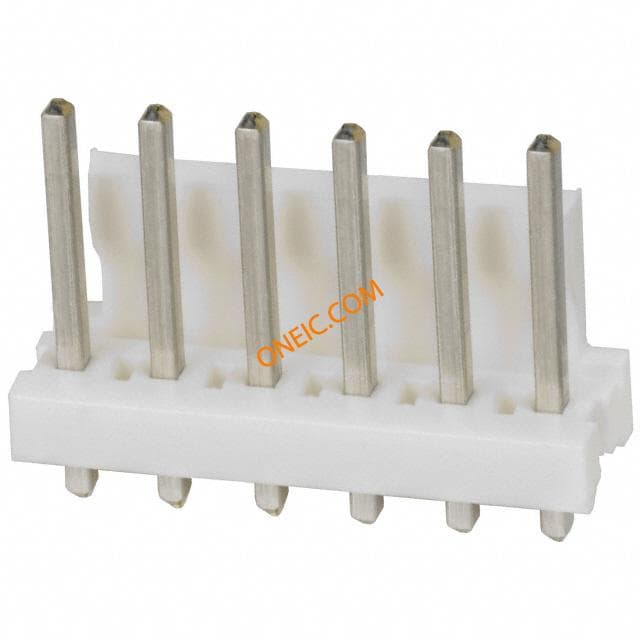

Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 6POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 6 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings FRCTN LK HDR STR 6P Square post tin Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, VERTICAL, 0.156", 6WAY Connector,MTA-156;Male;6;CopperAlloy;7;600;0.156in.;Polyester;White Connector: wire-board; Series: MTA-156; 3.96mm; male; socket; PIN:6 Pin header straight 6P, 640445-6, TE Connectivity TE Connectivity MTA-156 系列 3.96mm节距 6路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 06P MTA156 HDR ASSY FL/STR SN
3-641208-6
te connectivity / amp
Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 6POS .156 30 GOLD Headers & Wire Housings FRCTN LK HDR STR 6P Square post gold Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole Product Highlights:Connector6 PositionsConnector Type = Header - PinMTA-156 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 6POS, 3.96MM MTA-156HEADERGOLD,06PMTA156HDRASSYFLSTLF 06P MTA156 HDR ASSY FL ST LF
641210-6
te connectivity / amp
Conn Wire to Board HDR 6 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .156 6POS 30AU Headers & Wire Housings FRCTN LK HDR RA 6P Square post gold Conn Wire to Board HDR 6 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA156 HRD FL RA FB 30AU
644751-6
te connectivity / amp

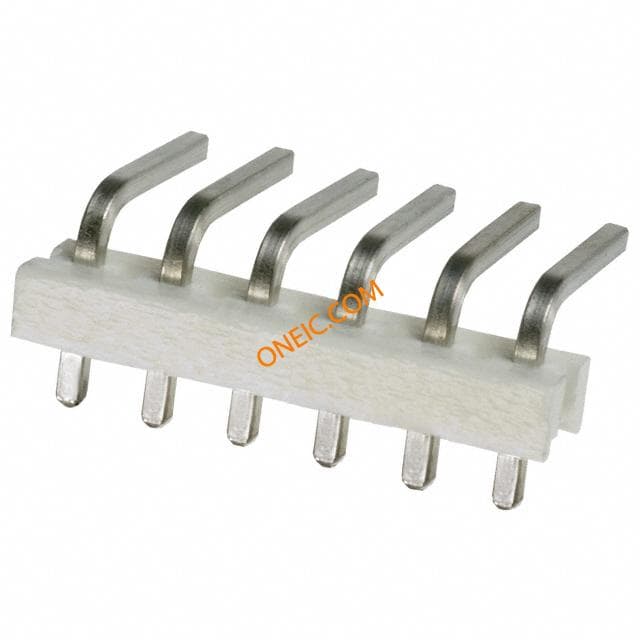

Conn Unshrouded Header HDR 6 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 6POS .156 TIN Headers & Wire Housings 6P HDR ASSY R/A 06P MTA156 HDR ASSY R/A
640383-6
te connectivity / amp

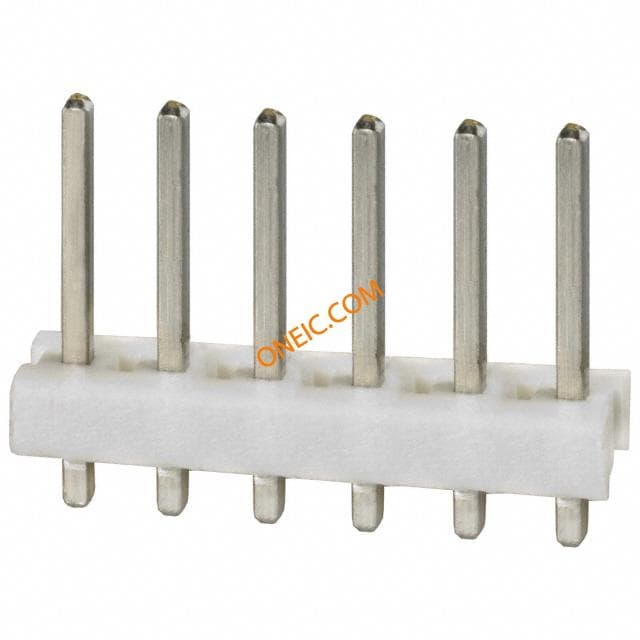

Conn Unshrouded Header HDR 6 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 6POS .156 TIN Headers & Wire Housings FLAT HEADER STRT 6P Square post tin Conn Unshrouded Header HDR 6 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Connector,MTA-156;Male;6;CopperAlloy;7;600;0.156in.;Polyester;White 06P MTA156 HDR ASSY STR SQ SN
644753-6
te connectivity / amp
Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 6POS .156 TIN Headers & Wire Housings HDR 06P VRT F-LOCK RD Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA156 HDR ASSY RN STR F/L
641208-6
te connectivity / amp
Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT .156 6POS 30AU Headers & Wire Housings FRCTN LK HDR STR 6P Square post gold Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA156 HDR ASSY FL ST 30AU
3-641120-6
te connectivity / amp
Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 6POS VERT .156 GOLD Headers & Wire Housings 06P MTA156 HDR ASSY FL/ST LF Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA156 HDR ASSY FL/ST LF
641121-6
te connectivity / amp
Conn Wire to Board HDR 6 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 6POS R/A .156 15GOLD Headers & Wire Housings 06P MTA156 HDR ASSY FL/RA 15AU Conn Wire to Board HDR 6 POS 3.96mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
644611-6
te connectivity / amp
Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 6POS .156 TIN Headers & Wire Housings 06P MTA156 HDR POL STR WO PEGS 06P MTA156 HDR POL STR WO PEGS 06P MTA156 HDR POL STR WO PEGS Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
640385-6
te connectivity / amp
Conn Unshrouded Header HDR 6 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 6POS .156 TIN Headers & Wire Housings FLAT HEADER R.A. 6P Square post tin Conn Unshrouded Header HDR 6 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA156 HDR ASSY SQ R/A
644759-6
te connectivity / amp
Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole Headers & Wire Housings 6P HEADER ASSY MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 6POS VERT .156 GOLD
640389-6
te connectivity / amp
Conn Wire to Board HDR 6 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 6POS .156 TIN Headers & Wire Housings FRCTN LK HDR RA 6P Square post tin Conn Wire to Board HDR 6 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, RIGHT ANGLE, 0.156", 6WAY Connector,MTA-156;Male;6;CopperAlloy;7;600;0.156in.;Polyester;White Pin strip 90° 6P, 640389-6, TE Connectivity TE Connectivity MTA-156 系列 6路 3.96mm节距 (1排) 直角 PCB 针座 , 焊接端接, 7A, 通孔 06P MTA156 HDR ASSY SQ R/A F/L
644767-6
te connectivity / amp
Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 6POS VERT .156 GOLD 06P MTA156 HDR ASSY FL ST 15AU 06P MTA156 HDR ASSY FL ST 15AU Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
640388-6
te connectivity / amp
Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 6POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 6 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings FRCTN LK HDR STR 6P Round post tin Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, 3.96MM, 6WAY HEADER,MTA-156,6POSITION,3.96MM,FRICTIONLOCK TE Connectivity MTA-156 系列 3.96mm节距 6路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 06P MTA156 HDR ASSY RN STR F/L
3-641210-6
te connectivity / amp
Conn Wire to Board HDR 6 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .156 6POS 30AU Headers & Wire Housings FRCTN LK HDR RA 6P Square post gold Conn Wire to Board HDR 6 POS 3.96mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA156 HRD FL RA FB 30AU
640384-6
te connectivity / amp

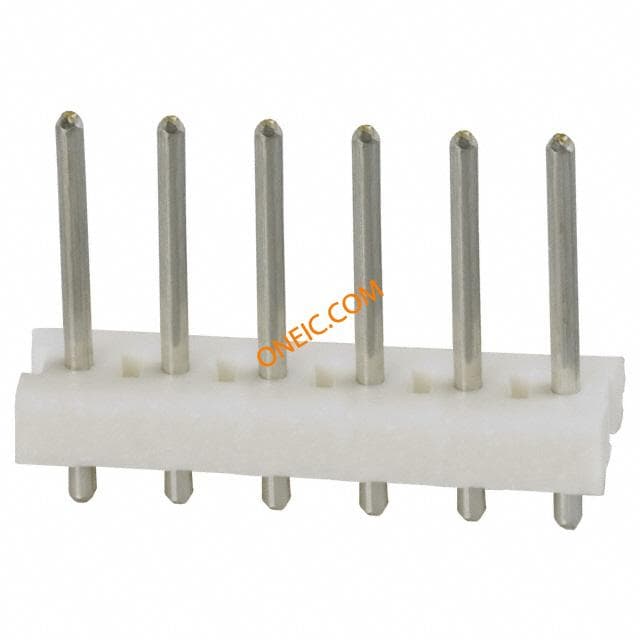

Conn Unshrouded Header HDR 6 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 6POS .156 TIN Headers & Wire Housings FLAT HEADER STRT 6P Round post tin Conn Unshrouded Header HDR 6 POS 3.96mm Solder ST Thru-Hole Product Highlights:6 PositionsWith ContactsHousing Gender = Header - PinContact Gender = PinMTA-156 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA156 HDR ASSY STR RND SN
