1-770849-8
| Manufacturer | |
| Description | Conn Housing RCP 18 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HOUSING RCPT CRIMP 18POS Headers & Wire Housings RCPT CRIMP 18 POS SL156 Conn Housing RCP 18 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 18Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP SL-156 18 Position Locking Ramp Female Socket Crimp Receptacle Housing Connector 18P SL156 HSG W/LCK RMP & TABS |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 2 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 已获认证 |
| Leadfree Defin | Not relevant for lead free process | UL File Number | E28476 |
| CSA File Number | LR 7189 | Standard Number | CSA, UL |
| CSA Certification | Certified | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage - Supply | 250 VAC | Connector Impedance | 压接 |
| Current Rating (Max) | 6.5 | Connector - Voltage Input | Crimp |
Mechanical
| Color | Natural | Pitch | 3.96 mm |
| Packaging | Bulk | Shrouding | No |
| Body Color | 自然 | Cable Exit | 180° |
| Wire Gauge | 18-24 AWG | Contact Form | Female Socket |
| Contact Type | Female Socket | Polarization | Polarizing Tab |
| 2nd Connector | With | Housing Color | White |
| Mounting Type | Straight | Connector Type | Crimp |
| Contact Finish | 3.96 [0.156] | Fastening Type | Locking Ramp |
| Mounting Style | 不带 | Number of Rows | 1 |
| Shell Material | 标准 | Connector Usage | Receptacle |
| Height (Inches) | .25 | Locking Feature | Locking Ramp |
| Housing Material | Nylon | Length - Overall | 2.807 |
| Mounting Feature | Without | Package Quantity | 1 |
| Panel Mount Type | Without | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Mating Orientation | With |
| Number of Contacts | 18 | Termination Finish | 不带 |
| Contact Termination | Crimp | Insulation Diameter | Standard |
| Number of Positions | 18 | Compatible Shell Size | SL .156 端子 |
| Mounting Hole Diameter | 带有 | Contact Layout, Typical | 同轴 |
| Static Discharge Shielding | 不带 | ||
Product Info
| Note | Recommended contact: Part No. 350980 and Part No. 770476 | Type | Housing |
| Gender | RCP | Series | SL-156 |
| Features | Polarizing Key | Sealable | 否 |
| Manufacturer | AMP | Product Type | SL-156 Housings |
| Output Configuration | Free Hanging (In-Line) | Application Specifics | Wire-to-Board |
Environmental
| Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] | ||
Similar Parts
3-640252-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip MTA, CST, CST-100 II and SL Contacts CONN SOCKET 18-24AWG SL156 TIN Contact 18-24awg brass H/F Strip Headers & Wire Housings SKT 24-18 BR/SN Reel of 7000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:SL-156 ContactsWire Termination Type = CrimpBright Tin Contact Mating Area Plating MaterialWire Size = 0.9-0.2² [18-24] mm² [AWG]Used For SL-156 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CONTACT, FEMALE, 24AWG CONTACT, CRIMP, SOCKET, 24-18AWG, REEL CONTACT,SL-156,18-24AWG,CRIMP TE Connectivity SL-156 系列 母 压接接线端子, 压接, 镀锡镀镍触点 045 POST CONT 0126PTPBR
640252-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip MTA, CST, CST-100 II and SL Contacts CONN SOCKET 18-24AWG SL156 TIN Headers & Wire Housings RCPT CONTACT 18-24G Contact SKT Crimp ST Cable Mount Strip Product Highlights:SL-156 ContactsWire Termination Type = CrimpPre-Tin Contact Mating Area Plating MaterialWire Size = 0.9-0.2² [18-24] mm² [AWG]Used For SL-156 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CONTACT, CRIMP, RECEPTACLE, 24-18AWG CONTACT, CRIMP, SOCKET, 24-18AWG, REEL CONTACT,RECEPTACLE,SL-156,18-24AWG,CRIMP SL-156 RECEPTACLE
640707-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece MTA, CST, CST-100 II and SL Contacts CONN SOCKET 18-24AWG SL156 TIN Contact Crimp Receptacle 24-18AWG SL-156 Headers & Wire Housings CRIMP CONTACT SL156 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SL-156 ContactsWire Termination Type = CrimpBright Tin Contact Mating Area Plating MaterialWire Size = 0.9-0.2² [18-24] mm² [AWG]Used For SL-156 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP SL-156POSTCONNLP,SL156RECEPTACLELP TE Connectivity SL-156 系列 母 压接接线端子, 压接, 镀锡触点 SL 156 RECEPTACLE LP
770476-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip MTA, CST, CST-100 II and SL Contacts CONN SOCKET 18-24AWG SL156 TIN Contact SKT Crimp ST Cable Mount Strip Product Highlights:SL-156 ContactsWire Termination Type = CrimpBright Tin Contact Mating Area Plating MaterialWire Size = 0.9-0.2² [18-24] mm² [AWG]Used For SL-156 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP SL-156POSTCONNST,SL156RECPT,SNNI/PHBZ SL156 RECPT, SNNI/PHBZ
1-641208-8
te connectivity / amp
Conn Wire to Board HDR 18 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 18POS .156 30AU Headers & Wire Housings 18P MTA156 HDR ASSY FL ST 30AU Conn Wire to Board HDR 18 POS 3.96mm Solder ST Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 18P MTA156 HDR ASSY FL ST 30AU
3-770476-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip MTA, CST, CST-100 II and SL Contacts CONN SOCKET 18-24AWG SL156 TIN Contact 18-24awg phosphor D/W Strip Headers & Wire Housings SKT 24-18 PHBR/SN Reel of 5500 Contact SKT Crimp ST Cable Mount Strip Product Highlights:SL-156 ContactsWire Termination Type = CrimpBright Tin Contact Mating Area Plating MaterialWire Size = 0.9-0.2² [18-24] mm² [AWG]Used For SL-156 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CONTACT, MTA, 24-18AWG CONTACT,RECEPTACLE,SL-156,18-24AWG,CRIMP Contact; female; 0.2÷0.9mm2; SL-156; tinned; crimped; tape; 3.96mm TE Connectivity SL-156 系列 母 压接接线端子, 压接, 镀锡镀镍触点 SL156 RECPT, SNNI/PHBZ

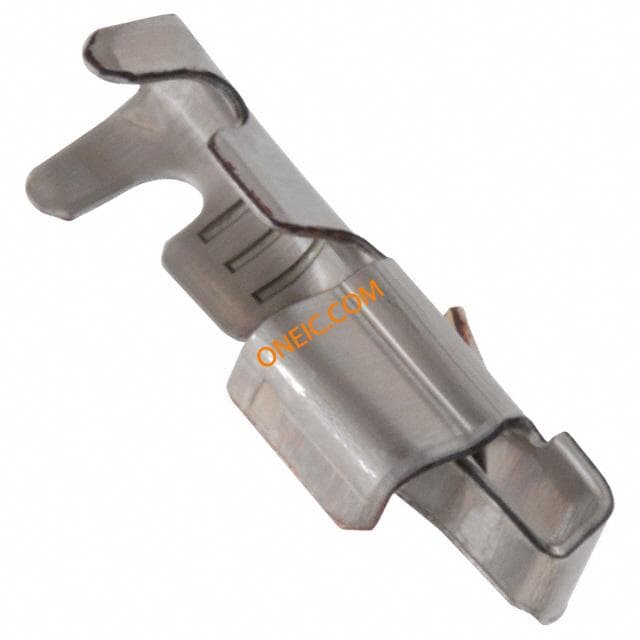

770476-2
