282080-1
| Manufacturer | |
| Description | Conn Housing PL 2 POS 6mm Crimp ST Superseal 1.5 Series CONN PLUG 2POS 1.5 SERIES BLACK Superseal 1.5 2 way plug housing Jones Plugs & Sockets 2P RECEPTACLE Conn Housing PL 2 POS 6mm Crimp ST Product Highlights:HousingNumber of Positions = 2Housing Type = PlugSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring SOCKET HOUSING, CIRCULAR, 2 WAY Superseal1.52wayplughousing Connector: wire-wire; Superseal 1.5; plug; female; PIN:2; IP67 Crimp housing 6 mm Poles 2 Superseal, 282080-1, TE Connectivity TE Connectivity AMP Superseal 1.5 系列 2路 电缆安装 黑色 母 连接器 , 压接端接 AMP SUPERSEAL 1.5 SERIES 2P PL |
| Category |
Business
| Product Category | Jones Plugs & Sockets | Standard Package | Bulk |
| Factory Pack Quantity | 800 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | DIN 40050, IEC 529 |
| Tariff No | 85369010 | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | ||
Electrical
| Voltage Rating | 24V DC | Voltage - Breakdown | :1500V |
| Voltage - Secondary | Red | Current Rating (Max) | 14A |
| Insulation Resistance | :200Mohm | Voltage - Supply (Min) | 24VDC |
| Connector - Voltage Input | w/o terminals | ||
Mechanical
| Color | Yellow | Depth | 32.2mm |
| Pitch | 6 mm | Width | 15.3mm |
| Height | 9.3mm | Length | :28mm |
| Weight | 0.002 | Material | Polyamide 6.6 Glass Filled |
| Packaging | Bulk | Wire Gauge | 16-20 AWG |
| Termination | Crimp | Contact Type | Female Socket |
| Housing Color | Black | Mounting Type | Straight |
| Shell Plating | Silicon Rubber | Connector Type | Plug |
| Fastening Type | Latch Lock | Number of Rows | 1 |
| Package / Case | Plug | Locking Feature | lock |
| Material - Body | :Nylon (Polyamide) | Housing Material | Polyamide 6.6 GF |
| Length - Overall | 17.3 mm | Package Quantity | 500 |
| Primary Material | Connector | Size / Dimension | see |
| Connector - Cable | plug | Color - Connectors | Black |
| Number of Contacts | 2 | Contact Termination | Crimp |
| Number of Positions | 2 | Diameter - Outside, Non-Expanded | :2.4mm |
Product Info
| Spg | 1600 | Note | Contacts Not Provided |
| Type | Housing | Gender | PL |
| Series | Super Seal | Manufacturer | SUPERSEAL1.5Series |
| Product Type | Housing | Adapter Series | Superseal 1.5 |
| Number of Units | 1 | For Use With/Related Products | :Superseal 1.5 Series Connectors |
Environmental
| Ingress Protection | IP67 | Operating Temperature | +125°C |
Documents & Media
Similar Parts
281934-2
te connectivity / amp
Connector Accessories Seal Protector Silicon Rubber Yellow Superseal 1.5 Series WIRE SEAL Superseal 1.5 yellow wire seal,1.8-2.4mm Heavy Duty Power Connectors SINGLE WIRE SEAL Connector Accessories Seal Protector Silicon Rubber Yellow Product Highlights:Seal ProtectorWire Insulation Diameter = 1.80 - 2.39 mmSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring WIRE SEAL, YELLOW Superseal1.5yellowwireseal,1.8-2.4mm Seal for wire; Superseal 1.5; Colour: yellow; 1.8÷2.4mm Gasket yellow yellow, 281934-2, TE Connectivity TE Connectivity Superseal 1.5系列 黄色 硅橡胶 电线密封, 适用于Superseal连接器 SINGLE WIRE SEAL
58583-1
te connectivity / amp
Hand Tool Assembly And Die Assembly Crimpers PROCRIMP HT&D SUPRSE TOOL HAND CRIMP SUPRSEAL W/DIE IP67 AMP superseal crimp tool Connector Accessories Crimp Terminals Hand Tool With Die Set Pro-Crimper Assembly CRIMP TOOL, SUPERSEAL Crimper;Ratchet;20-16AWG;SUPERSEAL1.5SeriesContacts;58583-2Die;PRO-CRIMPER Tool: for crimping; 0,5÷1,5mm2; Series: Superseal 1.5 Crimping tool, 58583-1, TE Connectivity TE Connectivity Pro-Crimper III 系列 Superseal 压接工具 , 适用于0.35 → 1.5 mm² 线规格 PROCRIMP HT&D SUPRSEAL 1.5 SER
282110-1
te connectivity / amp

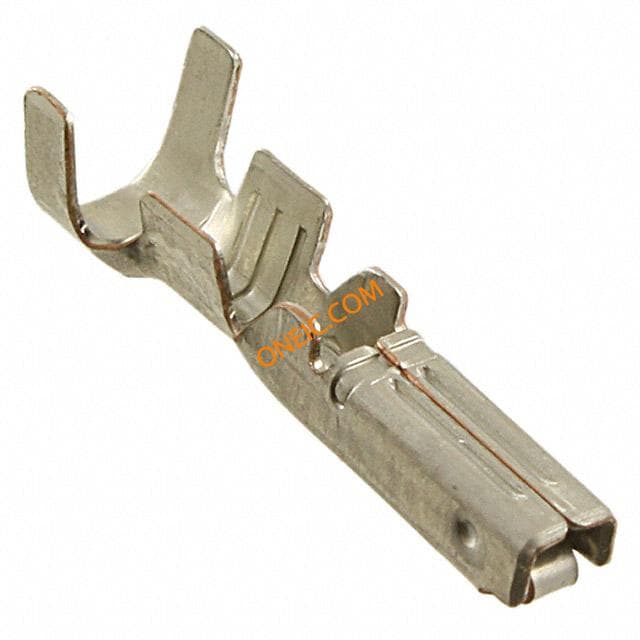

Contact SKT Crimp ST Cable Mount Strip Superseal 1.5 Series CONN SOCKET 15-18AWG TIN Crimp receptacle,F,pre-tin,15.5-18awg Heavy Duty Power Connectors RECEPTACLE CONTACT Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Type = ReceptacleWire Range = 0.75-1.50² [18.5-15.5] mm [AWG]Wire Insulation Diameter = 1.80 - 3.30 mmStripSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring CONTACT, CRIMP RECEPTACLE CONTACT, SOCKET, 18-15AWG CONTACT, CRIMP, SOCKET, 18-15AWG, REEL Contact; female; 0.75÷1.5mm2; 16÷20AWG; Superseal 1.5; tinned TE Connectivity AMP Superseal 1.5 系列 母 压接接线端子, 压接, 镀锡触点 MINI MIC RCPT CONTACT
282104-2
te connectivity / amp
Conn Housing RCP 2 POS 6mm Crimp ST Cable Mount Superseal - Connectors CONN TAB HOUSING 2POS GREY Superseal 1.5 2 way cap housing gray Jones Plugs & Sockets 1.5 SERIES 2P CA AMP SUPERSEAL 1.5 SERIES 2P CA AMP SUPERSEAL 1.5 SERIES 2P CA Search Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring Superseal1.52wayreceptaclehousing TE Connectivity AMP Superseal 1.5 系列 1 行 6mm 节距 2 路 直 母 电缆安装 PCB 连接器外壳
282104-3
te connectivity / amp
Conn Housing RCP 2 POS 6mm Crimp ST Cable Mount Superseal - Connectors CONN TAB HOUSING 2POS GREEN Automotive Connectors AMP SUPERSEAL 1.5 SER 2P CA AMP SUPERSEAL 1.5 SERIES 2P CA
183035-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Automotive Connectors MINI MIC RCPT CONT. ACT.LP Superseal 1.5 Series CONN SOCKET 20-22AWG TIN CRIMP Superseal 1.5 socket crimp contact Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = ReceptacleWire Range = 0.30-0.60² [22-20] mm [AWG]Wire Insulation Diameter = 1.40 - 1.70 mmLoose PieceSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring CRIMP SOCKET, 22-20A SUPERSEALMINIMICRCPTCONT.ACT.LP Contact; female; 0.35÷0.5mm2; 20÷22AWG; Superseal 1.5; tinned Crimp socket Female 22...20 AWG, 183035-1, TE Connectivity TE Connectivity Superseal 1.5 系列 触点, 使用于插头外壳 MINI MIC RCPT CONT.ACT.LP
282087-1
te connectivity / amp

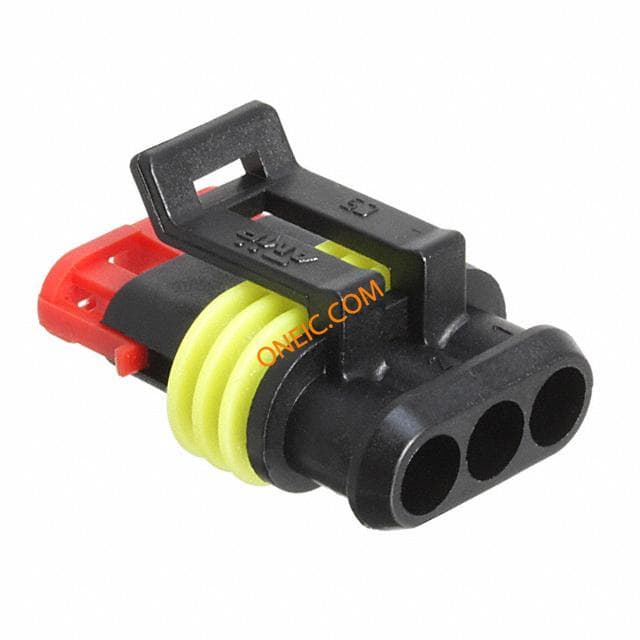

Conn Housing PL 3 POS 6mm Crimp ST Superseal 1.5 Series CONN PLUG 3POS 1.5 SERIES BLACK Superseal 1.5 3 way plug housing Automotive Connectors HSG PLG 1X03C F/H Conn Housing PL 3 POS 6mm Crimp ST Product Highlights:HousingNumber of Positions = 3Housing Type = PlugSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring SOCKET HOUSING, 3WAY Superseal1.53wayplughousing Connector: wire-wire; Superseal 1.5; plug; female; PIN:3; IP67 Crimp housing 6 mm Poles 3 Superseal, 282087-1, TE Connectivity TE Connectivity AMP Superseal 1.5 系列 6mm 节距 3 路 直 公 PCB 壳体 AMP SUPERSEAL 1.5 SERIES 3P PL
183024-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Terminals AMP MINI MIC TAB L.P. Superseal 1.5 Series CONN PIN 15-18AWG TIN CRIMP Superseal 1.5 tab crimp contact Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = TabWire Range = 0.75-1.50² [18.5-15.5] mm [AWG]Wire Insulation Diameter = 1.80 - 3.30 mmLoose PieceSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring CRIMP PIN, TAB, 20-15AWG Superseal1.5tabcrimpcontact Contact; male; 0.75÷1.5mm2; 16÷20AWG; Superseal 1.5; tinned; 14A Crimp pin Male 18...15 AWG, 183024-1, TE Connectivity TE Connectivity AMP Superseal 1.5 系列 公 压接接线端子, 压接, 镀锡触点 MINI MIC TAB L.P.
281934-4
te connectivity / amp
Connector Accessories Seal Protector Silicon Rubber Green Superseal 1.5 Series RUBBER PLUG Superseal 1.5 green wire seal,1.4-1.7mm Jones Plugs & Sockets HSG ACC:WIRE SEAL GRN Connector Accessories Seal Protector Silicon Rubber Green Product Highlights:Seal ProtectorWire Insulation Diameter = 1.40 - 1.70 mmSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring Superseal1.5greenwireseal,1.4-1.7mm Seal for wire; Superseal 1.5; Colour: green; 1.4÷1.7mm Gasket green green, 281934-4, TE Connectivity TE Connectivity AMP Superseal 1.5系列 绿色 硅橡胶 电线密封, 适用于Superseal连接器 SINGLE WIRE SEAL
282403-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Superseal 1.5 Series CONN MINI MIC SOCKET 22-20AWG Contact,crimp,recpt,MIC mini,22-20 awg Power to the Board S-SEAL SKT 22-20 BR/SN Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Type = ReceptacleWire Range = 0.30-0.60² [22-20] mm [AWG]Wire Insulation Diameter = 1.40 - 1.70 mmStripSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring CONTACT, SOCKET, 22-20 AWG CONTACT, CRIMP, SOCKET, 22-20AWG, REEL Contact,crimp,recpt,MICmini,22-20awg Contact; female; 0.35÷0.5mm2; 20÷22AWG; Superseal 1.5; tinned TE Connectivity 压接插座 , 镀锡触芯 MINI MIC SRS REC CONT
282079-2
te connectivity / amp

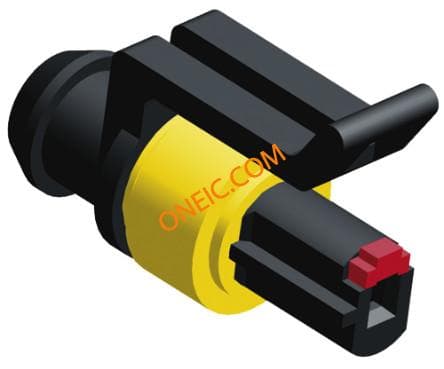

Conn Housing PL 1 POS Crimp ST Superseal 1.5 Series CONN PLUG 1POS 1.5 SERIES BLACK Superseal 1.5 1 way plug housing Jones Plugs & Sockets HSG PLG 1X01C F/H Conn Housing PL 1 POS Crimp ST Product Highlights:HousingNumber of Positions = 1Housing Type = PlugSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring SOCKET HOUSING, 1WAY Superseal1.51wayplughousing Connector: wire-wire; Superseal 1.5; plug; female; PIN:1; IP67 Crimp housing 0 mm Poles 1 Superseal, 282079-2, TE Connectivity TE Connectivity AMP Superseal 1.5 系列 1 路 直 公 PCB 壳体 AMP SUPERSEAL 1.5 SERIES 1P PL
