282104-2
| Manufacturer | |
| Description | Conn Housing RCP 2 POS 6mm Crimp ST Cable Mount Superseal - Connectors CONN TAB HOUSING 2POS GREY Superseal 1.5 2 way cap housing gray Jones Plugs & Sockets 1.5 SERIES 2P CA AMP SUPERSEAL 1.5 SERIES 2P CA AMP SUPERSEAL 1.5 SERIES 2P CA Search Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring Superseal1.52wayreceptaclehousing TE Connectivity AMP Superseal 1.5 系列 1 行 6mm 节距 2 路 直 母 电缆安装 PCB 连接器外壳 |
| Category |
Business
| Standard Pack | 1,500 | Product Category | Jones Plugs & Sockets |
| Standard Package | Bulk | Factory Pack Quantity | 1500 |
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant / ELV compliant | ||
Electrical
| Voltage Rating | 24 V | Voltage - Supply | 24 |
| Connector Impedance | 否 | Voltage - Secondary | Red |
| Current Rating (Max) | 14 A | ||
Mechanical
| Color | Gray | Depth | 42mm |
| Pitch | 6 mm | Width | 19.8mm |
| Height | 42 mm [ 1.654 in ] | Length | 13.8mm |
| Material | Polyamide 6.6 Glass Filled | Packaging | Bulk |
| Cable Exit | 否 | Orientation | 直 |
| Contact Type | Tab | Housing Color | Gray |
| Mounting Type | Straight | Connector Type | Receptacle |
| Fastening Type | Locking Ramp | Number of Rows | 1 |
| Terminal Style | Yes | Connector Style | Receptacle |
| Locking Feature | Integrated in Housing | Housing Material | Polyamide 6.6 GF |
| Mounting Feature | No | Package Quantity | 1,500 |
| Primary Material | Receptacle | Connector - Cable | No |
| 1st Contact Gender | Tab | Number of Contacts | 2 |
| Contact Termination | Crimp | Number of Positions | 2 |
| Pin Size - Above Flange | 1.5 mm [ .059 in ] | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | Super Seal |
| Polarity | 是 | Sealable | 否 |
| Preloaded | No | Serviceable | Yes |
| Manufacturer | AMP | Product Type | Connector |
| Other Specifications | GEN | Application Specifics | Signal |
| For Use With/Related Products | Plug Housing | ||
Environmental
| Operating Temperature | -40 – 125 °C [ -40 – 257 °F ] | ||
Documents & Media
Similar Parts
282080-1
te connectivity / amp
Conn Housing PL 2 POS 6mm Crimp ST Superseal 1.5 Series CONN PLUG 2POS 1.5 SERIES BLACK Superseal 1.5 2 way plug housing Jones Plugs & Sockets 2P RECEPTACLE Conn Housing PL 2 POS 6mm Crimp ST Product Highlights:HousingNumber of Positions = 2Housing Type = PlugSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring SOCKET HOUSING, CIRCULAR, 2 WAY Superseal1.52wayplughousing Connector: wire-wire; Superseal 1.5; plug; female; PIN:2; IP67 Crimp housing 6 mm Poles 2 Superseal, 282080-1, TE Connectivity TE Connectivity AMP Superseal 1.5 系列 2路 电缆安装 黑色 母 连接器 , 压接端接 AMP SUPERSEAL 1.5 SERIES 2P PL
282465-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Superseal 1.5 Series CONN TAB 13-15AWG TIN Contact male 15-13AWG MIC Superseal Automotive Connectors MINI MIC TAB CONTACT Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactContact Type = TabWire Range = 1.50-2.50² [15.5-13.5] mm [AWG]Wire Insulation Diameter = 3.30 mmStripSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring TE Connectivity AMP Superseal 1.5 系列 公 压接接线端子, 压接, 镀锡触点 MINI MIC TAB CONTACT >1,5-
282080-3
te connectivity / amp
AMP SUPERSEAL 1.5 SERIES 2P PL Superseal - Connectors CONN PLUG 2POS 1.5 SERIES GREEN Jones Plugs & Sockets 1.5 SERIES 2P PL Conn Housing PL 2 POS 6mm Crimp ST Cable Mount Conn Housing PL 2 POS 6mm Crimp ST Cable Mount Search Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring

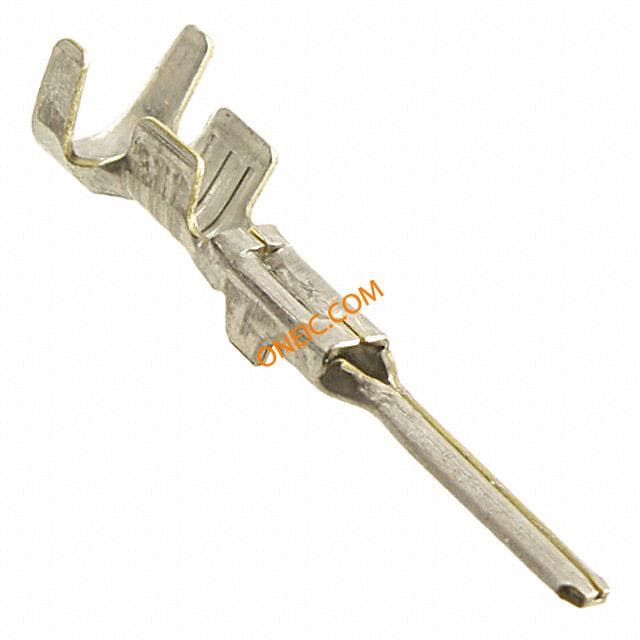

282109-1
