183024-1
| Manufacturer | |
| Description | Contact PIN Crimp ST Cable Mount Loose Piece Terminals AMP MINI MIC TAB L.P. Superseal 1.5 Series CONN PIN 15-18AWG TIN CRIMP Superseal 1.5 tab crimp contact Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = TabWire Range = 0.75-1.50² [18.5-15.5] mm [AWG]Wire Insulation Diameter = 1.80 - 3.30 mmLoose PieceSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring CRIMP PIN, TAB, 20-15AWG Superseal1.5tabcrimpcontact Contact; male; 0.75÷1.5mm2; 16÷20AWG; Superseal 1.5; tinned; 14A Crimp pin Male 18...15 AWG, 183024-1, TE Connectivity TE Connectivity AMP Superseal 1.5 系列 公 压接接线端子, 压接, 镀锡触点 MINI MIC TAB L.P. |
| Category |
Business
| Product | Tab Terminals | Product Category | Terminals |
| Standard Package | Bulk | Factory Pack Quantity | 5000 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
Electrical
| Current Rating (Max) | :14A | ||
Mechanical
| Pitch | Not Required mm | Height | 4.7 mm |
| Weight | 0.028 | Material | Brass |
| Packaging | Bulk | Insulation | Not Insulated |
| Wire Gauge | 18-15 | Termination | Crimp |
| Contact Type | Power | Mounting Type | Straight |
| Pin or Socket | Tab | Stud/Tab Size | 0.25 in |
| Connector Type | Connector Power | Contact Finish | Pre-Tin |
| Mounting Style | Cable | Package / Case | in bulk |
| Contact Material | Brass | Housing Material | Not Required |
| Length - Overall | 23mm | Package Quantity | Loose Piece |
| Connector - Cable | contact | Termination Style | Crimp |
| 1st Contact Gender | :Pin | Number of Contacts | 1 POS |
| Contact Termination | Crimp | Insulation Diameter | 1.80 â 3.30 [0.071 â 0.130] |
| Wire Gauge or Range - AWG | :18AWG | Wire Gauge or Range - mm2 | 0.75-1.50² [18.5-15.5] |
| Contact Material - Plating | tinned | Diameter - Outside, Non-Expanded | :3.3mm |
Product Info
| Spg | 5000 | Type | Contact |
| Gender | PIN | Series | Super Seal |
| CAD Drawing | 3D CAD Model | Manufacturer | SUPERSEALSeries |
| Product Type | Contact | Adapter Series | Superseal 1.5 |
| Number of Ports | 1 Port | Number of Units | 10 |
| Tool Type Feature | 58583-1, 9-1579007-1 | For Use With/Related Products | :Super Seal 1.5 Series Connectors |
Environmental
| Operating Temperature | -40C to 125C | Operating Temperature - Junction | 125C |
Documents & Media
Similar Parts
58583-1
te connectivity / amp
Hand Tool Assembly And Die Assembly Crimpers PROCRIMP HT&D SUPRSE TOOL HAND CRIMP SUPRSEAL W/DIE IP67 AMP superseal crimp tool Connector Accessories Crimp Terminals Hand Tool With Die Set Pro-Crimper Assembly CRIMP TOOL, SUPERSEAL Crimper;Ratchet;20-16AWG;SUPERSEAL1.5SeriesContacts;58583-2Die;PRO-CRIMPER Tool: for crimping; 0,5÷1,5mm2; Series: Superseal 1.5 Crimping tool, 58583-1, TE Connectivity TE Connectivity Pro-Crimper III 系列 Superseal 压接工具 , 适用于0.35 → 1.5 mm² 线规格 PROCRIMP HT&D SUPRSEAL 1.5 SER
183035-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Automotive Connectors MINI MIC RCPT CONT. ACT.LP Superseal 1.5 Series CONN SOCKET 20-22AWG TIN CRIMP Superseal 1.5 socket crimp contact Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = ReceptacleWire Range = 0.30-0.60² [22-20] mm [AWG]Wire Insulation Diameter = 1.40 - 1.70 mmLoose PieceSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring CRIMP SOCKET, 22-20A SUPERSEALMINIMICRCPTCONT.ACT.LP Contact; female; 0.35÷0.5mm2; 20÷22AWG; Superseal 1.5; tinned Crimp socket Female 22...20 AWG, 183035-1, TE Connectivity TE Connectivity Superseal 1.5 系列 触点, 使用于插头外壳 MINI MIC RCPT CONT.ACT.LP
539635-1
te connectivity / amp
Assembly Tools, AMP MCP Interconnection System Crimpers ERGO CRIMP HD TOOL TOOL HAND ERGOCRIMP CPC series 1 ergo crimp tool frame Crimp Tool CRIMP TOOL, 0.5-2.1MM FRAME W/OUT DIE Crimper;Ratchet;22-10AWG;SOLISTRANDSplices/Terminals;539662-2Die Crimp tool without insert, 539635-1, TE Connectivity TE Connectivity ERGOCRIMP 系列 压接工具框架 ERGOCRIMP HAND TOOL
58583-2
te connectivity / amp
Specialty Hand Tools Easier On The Hand And Precise On The Crimp Punches & Dies PROCRIMP DIE SUPERSEAL 1.5 SER TOOL DIE PROCRIMP SUPERSEAL DIE, SDE, SUPER SEAL, 1.5 SERIES Crimp insert for Superseal, 58583-2, TE Connectivity PROCRIMP DIE SUPERSEAL 1.5 SER
539773-2
te connectivity / amp

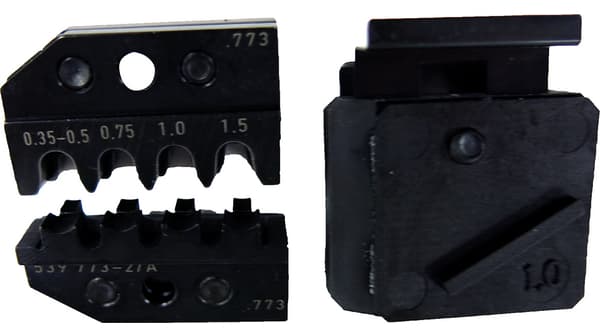

DIE FUER MINI MIC Punches & Dies DIE FUER MINI MIC TOOL DIE SET 0.35-1.5MM Crimping dies, 539773-2, TE Connectivity
