213500-1
| Manufacturer | |
| Description | Conn Housing RCP 8 POS 8mm ST Pin & Socket Connectors RECPT 8 POWER Metrimate Connectors CONN RECEPT 8 POS METRIMATE Conn Housing RCP 8 POS 8mm ST Product Highlights:HousingDrawer Connector ConfigurationDrawer Style = PowerNumber of Positions = 8ReceptacleSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, RECPT HSG,8 POWER,METRIMATE |
| Category |
Business
| Other Names | 2135001 | Product Category | Pin & Socket Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | UL Rating | 已认证, 获得认可 |
| Leadfree Defin | Wave solder capable to 240°C / Wave solder capable to 260°C / Wave solder capabl | UL File Number | E28476 |
| CSA File Number | LR16455 | Standard Number | CSA, UL |
| RoHSELV Compliance | RoHS compliant / ELV compliant | Approval Agency Marking | 是 |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage | 600.0 | Voltage Rating | 600 V |
| Voltage - Supply | 600 | Current Rating (Max) | 14 A |
| Voltage - Supply (Min) | 600VAC | ||
Mechanical
| Color | Black | Depth | 41.02 mm |
| Pitch | 8 mm | Width | 54.61 |
| Height | 30.78 mm | Length | 56.26 |
| Packaging | Bulk | Body Color | 黑色 |
| Cable Type | 绞线 | Size - Body | .031 – .091 in, .8 – 2.3 mm |
| 2nd Connector | Without | Housing Color | Black |
| Mounting Type | Straight | Connector Type | Housing |
| Mounting Style | Panel | Number of Rows | 3 |
| Connector Style | Drawer | Connector Usage | Drawer |
| Height (Inches) | 30.78 | Housing Material | Polyester |
| Length - Overall | 54.61 mm | Mounting Feature | Without |
| Package Quantity | 1 | Panel Mount Type | 带有 |
| Termination Style | Solder | 1st Contact Gender | Socket (Female) |
| Connector - Sensor | Without | Number of Contacts | 8 |
| Number of Positions | 8 | Center Contact Finish | 5.08 |
| Compatible Shell Size | 插头外壳 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | Metrimate |
| Features | Mating Guide | Coded, Keyed | No |
| Manufacturer | AMP | Product Type | Receptacle Housings |
| Drawer Quantity | Power | Other Specifications | No |
Environmental
| Operating Temperature | -55C to 130C | ||
Documents & Media
Similar Parts

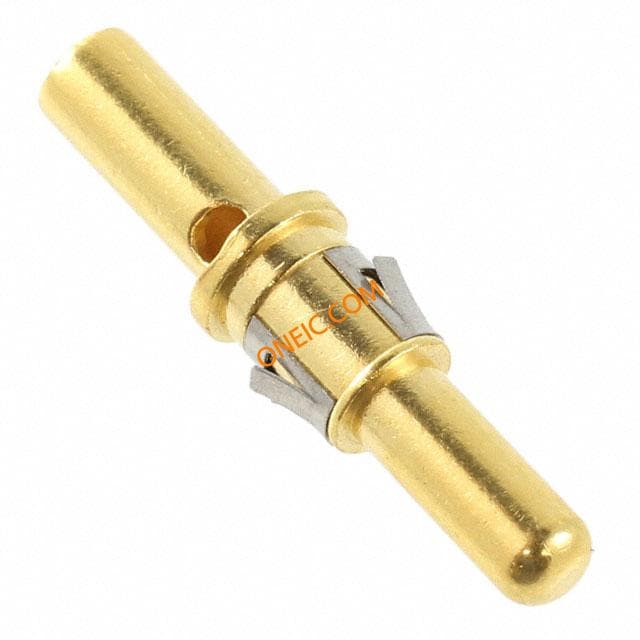

193534-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN PWR 12-14AWG CRIMP GOLD Pin & Socket Connectors PIN ASSY POWER 12- PIN ASSY, POWER ,12-14 AWG
213499-1
te connectivity / amp
Conn Housing PL 8 POS 5.08mm ST Metrimate Connectors CONN PLUG 8 POS METRIMATE BLACK TE Connectivity 5.08mm 8 Way 3 Row Straight Male Multiway Connector Pin & Socket Connectors PLUG 8 POWER Conn Housing PL 8 POS 5.08mm ST Product Highlights:HousingDrawer Connector ConfigurationDrawer Style = PowerNumber of Positions = 8PlugSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, HOUSING, PLUG, PANEL, 8WAY PLUG HSG,8 POWER METRIMATE

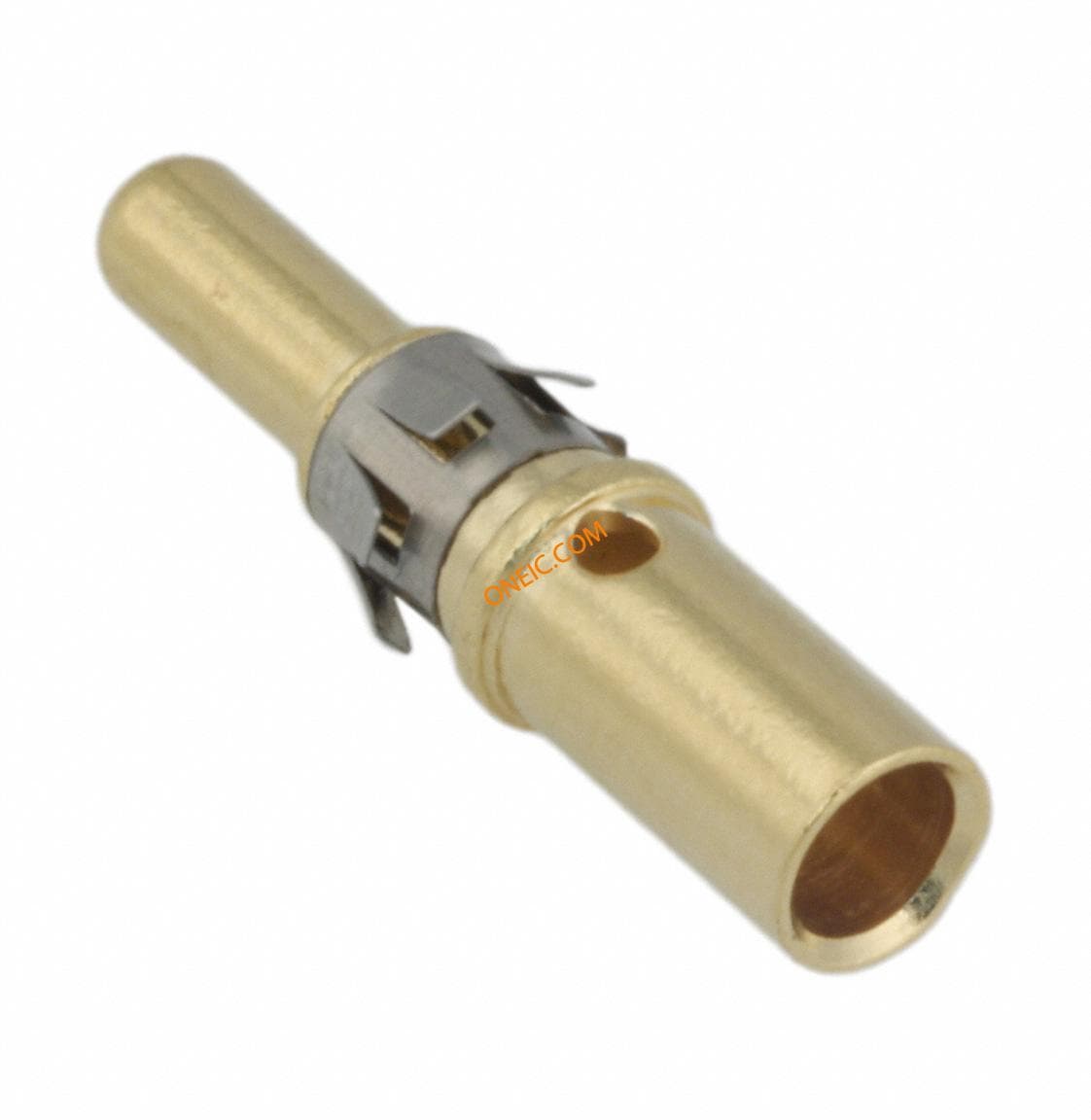

193642-1
