193534-1
| Manufacturer | |
| Description | Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN PWR 12-14AWG CRIMP GOLD Pin & Socket Connectors PIN ASSY POWER 12- PIN ASSY, POWER ,12-14 AWG |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL File Number | E28476 |
| Standard Number | CSA, UL | ||
Electrical
| Current - Output | 56 | Current Rating (Max) | 56 A |
Mechanical
| Plating | Gold | Material | Copper Alloy |
| Packaging | Bulk | Insulation | Without |
| Wire Gauge | 12-14 AWG | Termination | Crimp |
| Contact Form | Straight | Contact Type | Power |
| Mounting Type | 压接 | Pin or Socket | Pin |
| Terminal Size | 8 | Cable Diameter | 3831 – 6529 |
| Connector Type | Connector Circular | Contact Finish | Gold Over Nickel |
| Plating - Body | Nickel | Insert Material | 铜合金 |
| Contact Material | Copper Alloy | Package Quantity | 1000 |
| Termination Style | Crimp | 1st Contact Gender | Pin (Male) |
| Contact Termination | Crimp | Plating - Thickness | 30µin (0.76µm) |
| Compatible Shell Size | Metrimate 连接器 | Contact Mating Finish | 金 |
| Contact Finish - Mating | 金 | Pin Size - Above Flange | 3.4 mm [ .13 in ] |
| Contact Finish Thickness | .76 µm [ 30 µin ] | Jacket (Insulation) Thickness | 1.25 µm [ 50 µin ] |
Product Info
| Note | 接合对象为料号 193535。 | Type | Power |
| Gender | PIN | Series | Multimate |
| Features | Standard Not Hot Pluggable | Product Type | Receptacle Housings |
| Application Specifics | Power | ||
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -55 – 125 °C [ -67 – 257 °F ] |
Documents & Media
Similar Parts
213500-1
te connectivity / amp
Conn Housing RCP 8 POS 8mm ST Pin & Socket Connectors RECPT 8 POWER Metrimate Connectors CONN RECEPT 8 POS METRIMATE Conn Housing RCP 8 POS 8mm ST Product Highlights:HousingDrawer Connector ConfigurationDrawer Style = PowerNumber of Positions = 8ReceptacleSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, RECPT HSG,8 POWER,METRIMATE

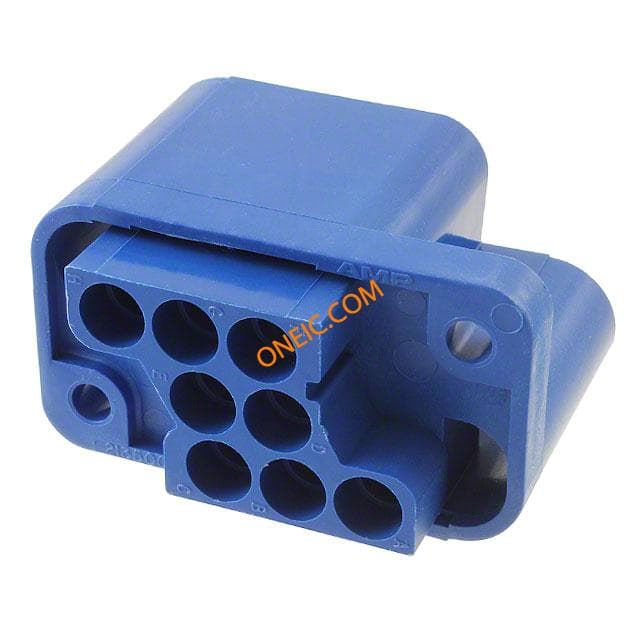

213500-3
