213499-1
| Manufacturer | |
| Description | Conn Housing PL 8 POS 5.08mm ST Metrimate Connectors CONN PLUG 8 POS METRIMATE BLACK TE Connectivity 5.08mm 8 Way 3 Row Straight Male Multiway Connector Pin & Socket Connectors PLUG 8 POWER Conn Housing PL 8 POS 5.08mm ST Product Highlights:HousingDrawer Connector ConfigurationDrawer Style = PowerNumber of Positions = 8PlugSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, HOUSING, PLUG, PANEL, 8WAY PLUG HSG,8 POWER METRIMATE |
| Category |
Business
| Other Names | 2134991 | Product Category | Pin & Socket Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Wave solder capable to 240°C / Wave solder capable to 260°C / Wave solder capabl | RoHSELV Compliance | RoHS compliant / ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage | 600.0 | Voltage Rating | 600 V ac |
| Current Rating (Max) | 14A | ||
Mechanical
| Color | Black | Pitch | 5.08 mm |
| Height | 30.78mm | Weight | 0.02 |
| Packaging | Bulk | 2nd Connector | Without |
| Housing Color | Black | Mounting Type | Straight |
| Connector Type | Housing | Mounting Style | Panel |
| Number of Rows | 3 | Connector Style | Drawer |
| Connector Usage | Drawer | Locking Feature | :Screw |
| Material - Body | :Glass Filled Polyester | Housing Material | Polyester GF |
| Mounting Feature | Without | Termination Style | Solder |
| 1st Contact Gender | Pin (Male) | Connector - Sensor | Without |
| Number of Contacts | 8 | Number of Positions | 8 |
| Center Contact Finish | 5.08 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Series | Metrimate |
| Features | Guide Pin | Coded, Keyed | No |
| Manufacturer | AMP | Product Type | Housing |
| Drawer Quantity | Power | Other Specifications | No |
| For Use With/Related Products | :Matrimate Pin Contacts | ||
Documents & Media
Similar Parts
213500-1
te connectivity / amp
Conn Housing RCP 8 POS 8mm ST Pin & Socket Connectors RECPT 8 POWER Metrimate Connectors CONN RECEPT 8 POS METRIMATE Conn Housing RCP 8 POS 8mm ST Product Highlights:HousingDrawer Connector ConfigurationDrawer Style = PowerNumber of Positions = 8ReceptacleSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, RECPT HSG,8 POWER,METRIMATE
193643-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONTACT SKT 10AWG CRIMP GOLD Pin & Socket Connectors SOCKET HIGH CURRENT 10-12 AWG Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketHigh CurrentGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 5.00-6.00² [10] mm [AWG]Copper Alloy Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts SKTASSY.,POWER,#10-12AWG SKT ASSY. ,POWER, #10-12 AWG

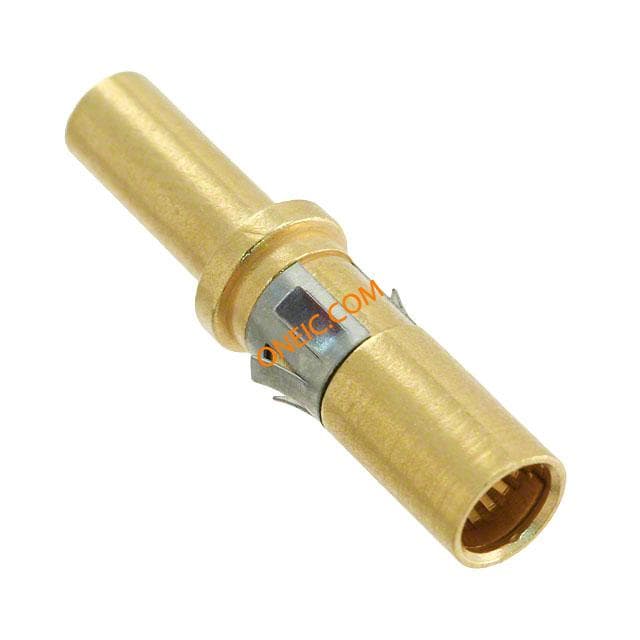

193535-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SKT PWR 12-14AWG CRIMP GOLD Pin & Socket Connectors SKT ASSY. ,POWER #12-14 AWG 193535-1 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketHigh CurrentGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 2.00-3.00² [14-12] mm [AWG]Copper Alloy Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts SKT ASSY. ,POWER, #12-14 AWG

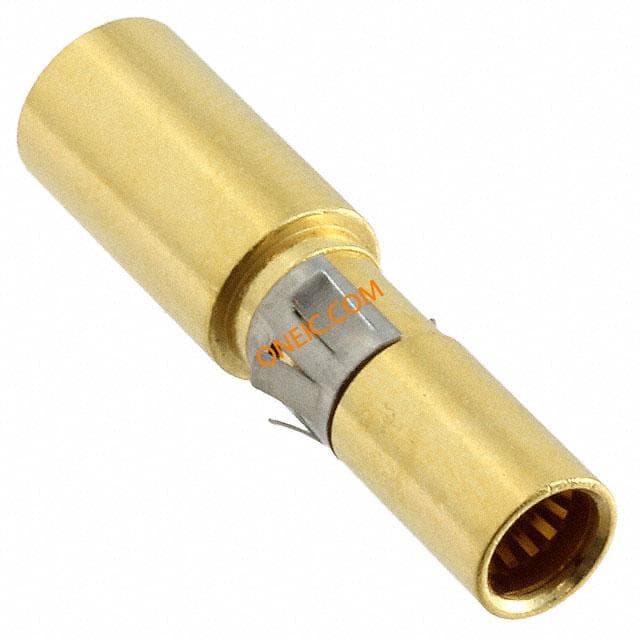

193458-1
