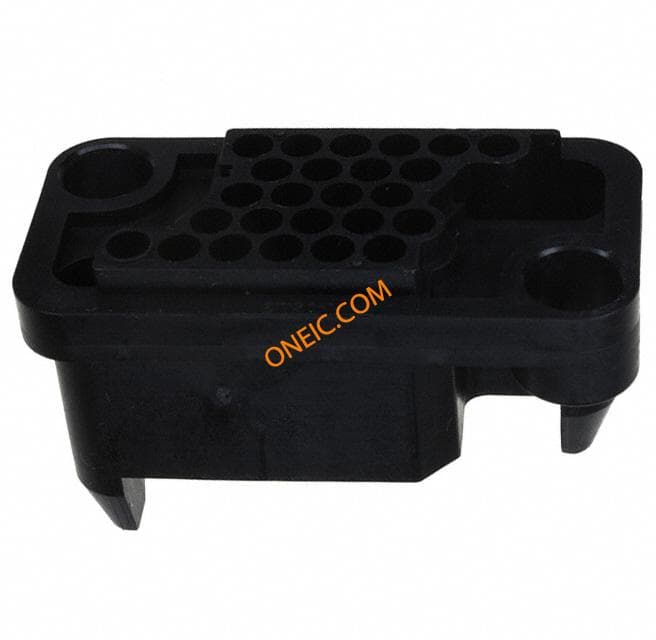

211149-1
| Manufacturer | |
| Description | Conn Housing RCP 25 POS 5.08mm ST Metrimate Connectors CONN RECEPT 25 POS METRIMATE Housing Drawer 25 way Pin Metrimate Pin & Socket Connectors 25P PIN HOUSING Conn Housing RCP 25 POS 5.08mm ST Product Highlights:HousingDrawer Connector ConfigurationDrawer Style = StandardNumber of Positions = 25ReceptacleSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, CONNECTOR, RECEPT 25 CONNECTOR,SOFTSHELL,METRIMATE,RECEPTACLE,25POSITION,STANDARDDRAWER TE Connectivity Metrimate 系列 5 行 5.08mm 节距 25 路 直 母 压接连接器外壳 PIN HSG,25 POSN,METRIMATE |
| Category |
Business
| Other Names | 2111491 | Product Category | Pin & Socket Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 196 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Wave solder capable to 260°C / Wave solder capable to 240°C / Wave solder capabl | RoHSELV Compliance | RoHS compliant / ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage | 600.0 | Voltage Rating | 600 V |
| Current Rating (Max) | 14 A | Voltage - Supply (Min) | 600VAC |
Mechanical
| Color | Black | Depth | 40.77mm |
| Pitch | 5.08 mm | Width | 30.78mm |
| Height | 30.78 mm | Length | 62.53mm |
| Weight | 0.039 | Packaging | Bulk |
| Contact Type | Pin | 2nd Connector | Without |
| Housing Color | Black | Mounting Type | Straight |
| Connector Type | Housing | Mounting Style | Panel |
| Number of Rows | 5 | Connector Style | Drawer |
| Connector Usage | Drawer | Housing Material | Polyester |
| Length - Overall | 62.53 mm | Mounting Feature | Without |
| Primary Material | InterconnectSystem | Color - Connectors | :Black |
| Connector - Sensor | Without | Number of Contacts | 25 |
| Number of Positions | 25 | Center Contact Finish | 5.08 |
Product Info
| Note | Positions 1 & 25 should not be used with ground pin. | Type | Housing |
| Gender | RCP | Series | Metrimate |
| Features | Mating Guide | Coded, Keyed | No |
| Manufacturer | AMP | Product Type | Housing |
| Drawer Quantity | Standard | Other Specifications | No |
| For Use With/Related Products | PCB Connector | ||
Environmental
| Operating Temperature | -55C to 130C | ||
