2106091-5
| Manufacturer | |
| Description | Conn Wire to Board RCP 6 POS 1.5mm Solder ST SMD LED Interconnects CONN HEADER 6POS T/H SMD 1.5MM Lighting Connectors 6P INVERTED SMT THRU BOARD 2106091-5 Conn Wire to Board RCP 6 POS 1.5mm Solder ST SMD Search Keywords:Thru-board connector, Through-board connector, SMT thru-board connector, SMT connector, Inverted SMT, Inverted connector, LED connector, lighting connector, light connector, LED, LED lights, Thruboard, Thru board, Through board, Through-board, Throughboard CONNECTOR, HERMAPHRODITIC, 6WAY Header, straight Pitch1.5 mm Poles 6 Mini-CT, 2106091-5, TE Connectivity 6 pos Inverted Thru Board SMT Header |
| Category |
Business
| Product | Connectors | Other Names | A99874CT |
| Product Category | Lighting Connectors | Standard Package | Tape & Reel |
| Factory Pack Quantity | 1350 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85412100 |
| UL File Number | E28476 | Material Flammability Rating | UL 94 V-0 |
Electrical
| Range deg/s | :- | Voltage Rating | 70 V |
| Current Rating (Max) | 3.0 | Voltage - Supply (Min) | 50.0 |
Mechanical
| Pitch | 1.5 mm | Width | 7.25 |
| Length | 15.11 | Sealed | No |
| Weight | 0.01 | Material | :High Temp. Thermoplastic |
| Packaging | Tape & Reel (TR) | Tail Type | In-line |
| Cable Type | Discrete Wire | Termination | Solder |
| Contact Type | Pin | Lead Spacing | :1.5mm |
| Mounting Type | Boardlock(s) | Connector Type | Header |
| Contact Finish | Tin Over Nickel | Number of Rows | 1 |
| Plating - Body | Matte Tin-Lead over Nickel | Connector Style | Inverted |
| Height (Inches) | 6.9 | Contact Material | Copper Alloy |
| Housing Material | Thermoplastic | Make Before Break | No |
| Termination Style | Surface Mount | Color - Connectors | :Natural |
| Number of Contacts | 6 | Contact Termination | :Surface Mount Right Angle |
| Number of Positions | 6 | Center Contact Finish | 1.5 |
| Length - Post (Mating) | 2.4 | Contact Finish Thickness | 4.0 |
Product Info
| Type | Wire to Board | Gender | RCP |
| Series | SlimSeal | Features | Board Lock |
| Direction | Inverted | Coded, Keyed | No |
| Measurement Type | 6.9 | Other Specifications | Yes |
| Application Specifics | Through Board | Number of Positions Loaded | All |
Environmental
| Mating Cycles | Without | Operating Temperature | :105°C |
Similar Parts
353908-6
te connectivity / amp
Conn Housing RCP 6 POS 1.5mm Crimp ST Box 1.5mm AMP Mini CT CONN RCPT HSNG 6POS 1.5MM CRIMP Receptacle housing, 1.5mm,6 way,Mini-CT Headers & Wire Housings RCPT 6 POS WHT MINI CRIMP 1.5mm Conn Housing RCP 6 POS 1.5mm Crimp ST Box Product Highlights:Receptacle HousingConnector Type = CrimpNumber of Positions = 6Without Panel AttachmentNumber of Rows = 1Search Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, Receptaclehousing,1.5mm,6way,Mini-CT TE Connectivity AMP Mini CT 系列 1 行 1.5mm 节距 6 路 直 母 PCB 壳体 CT REC HSG 6P CRIMP TYPE WHITE
2106091-1
te connectivity / amp
Conn Wire to Board RCP 2 POS 1.5mm Solder ST SMD Lighting Connectors 2P INVERTED SMT THRU BOARD LED Interconnects CONN HEADER 2POS T/H SMD 1.5MM TE Connectivity 1.5mm 2 Way 1 Row Straight Lighting Connectors Surface Mount Wire to Board Conn Wire to Board RCP 2 POS 1.5mm Solder ST SMD Product Highlights:Product Category = Connectors - Printed Circuit BoardProduct Classification = Connectors - SpecialtyConnectorConnector Type = InvertedHermaphroditicSearch Keywords:Thru-board connector, Through-board connector, SMT thru-board connector, SMT connector, Inverted SMT, Inverted connector, LED connector, lighting connector, light connector, LED, LED lights, Thruboard, Thru board, Through board, Through-board, Throughboard CONNECTOR, HERMAPHRODITIC, 2WAY Connector,inverted,SMT,MiniCT,2Way,Wht Header, straight Pitch1.5 mm Poles 2 Mini-CT, 2106091-1, TE Connectivity TE Connectivity 2路 直 1.5mm节距 表面贴装 印刷电路板插座, 线对板 2 pos Inverted Thru Board SMT Header
2058943-5
te connectivity / amp
Cable Assembly 0.159m 24AWG 6 POS Mini CT SKT Bag Lighting Connectors 6 POS MINI CT C/A CABLE ASSY MINI CT 6POS Receptacle cable assembly,6 way, Mini-CT Cable Assembly 0.159m 24AWG 6 POS Mini CT SKT Bag Search Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, CABLE ASSBLY, 6IN, 6WAY Receptaclecableassembly,6way,Mini-CT 2058943-5 Series 6 Position Single Row Inverted SMT Thru Board Connector Cable assembly Pitch1.5 mm Poles 6 Mini-CT, 2058943-5, TE Connectivity TE Connectivity 158.8mm长 连接器电缆组件 3 A Cable Assembly Mini CT 6 pos.

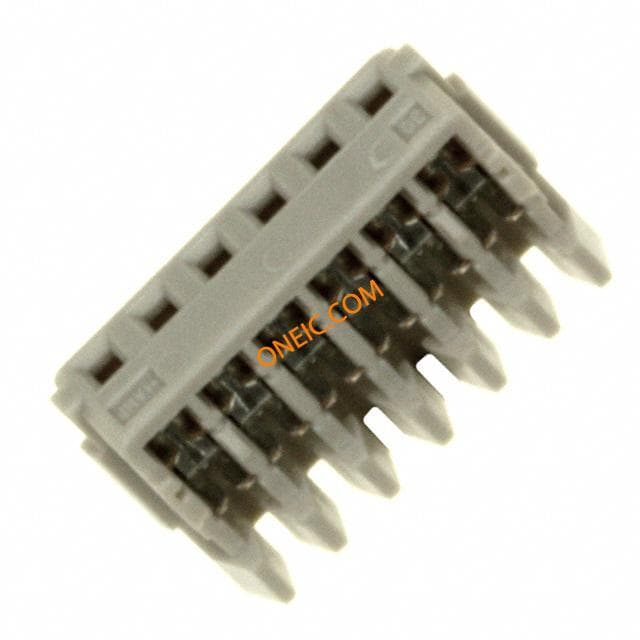

353293-6
