353293-6
| Manufacturer | |
| Description | Conn IDC Connector RCP 6 POS 1.5mm IDT ST Cable Mount Bag/Box 1.5mm AMP Mini CT CONN RCPT 6POS 1.5MM 28-26AWG Receptacle assembly,MT,1.5mm,6W, Mini-CT Headers & Wire Housings RCPT 6 POS GRY MINI 1.5mm Conn IDC Connector RCP 6 POS 1.5mm IDT ST Cable Mount Bag/Box Product Highlights:Receptacle AssemblyConnector Type = MT (Mass Termination)Number of Positions = 6Without Panel AttachmentTerminate To WireSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, Receptacleassembly,MT,1.5mm,6W,Mini-CT TE Connectivity AMP Mini CT 系列 6路 1.5mm节距 母 IDC 连接器 , 电缆安装 MINI CT MT REC ASSY 6P GRAY |
| Category |
Business
| Tradename | COMMON TERMINATION | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 1000 |
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 50 V ac/dc | Switch Function | Without |
| Connector Impedance | 刺破式压接 (IDC) | Current Rating (Max) | 2A |
Mechanical
| Color | Gray | Pitch | 1.5 mm |
| Packaging | Bulk | Wire Type | Discrete |
| Cable Type | Discrete | Wire Gauge | 26-28 AWG |
| Orientation | 直 | Termination | IDT |
| Contact Form | Female Socket | Contact Type | Female Socket |
| Mounting Type | No | Connector Type | MT (Mass Termination) |
| Contact Finish | Tin Over Nickel | Number of Rows | 1 |
| Contact Material | Phosphor Bronze | Housing Material | Nylon GF |
| Package Quantity | Loose Piece | Panel Mount Type | Without |
| Termination Rows | IDC | Cable Termination | IDC |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 6 | Insulation Diameter | 0.80 â 0.95 [0.032 â 0.037] |
| Number of Positions | 6 | Mounting Hole Diameter | 带有 |
| Center Contact Material | 1.50 [0.059] | Wire Gauge or Range - mm2 | 0.08-0.15² [28-26] |
Product Info
| Type | IDC Connector | Gender | RCP |
| Series | Mini CT | Features | Closed End |
| CAD Drawing | 3D CAD Model | Main Purpose | Closed End |
| Product Type | Receptacle Assembly | Connection Type | Wire |
| Output Configuration | Free Hanging (In-Line) | ||
Environmental
| Operating Temperature | +105°C | ||
Similar Parts
937317-1
te connectivity / amp
MIMI CT PISTOL TOOL Hand Tools PISTOL GRIP MINI CT TOOL PUNCH MINI CT PISTOL GRIP MINI CT Pistol Tool

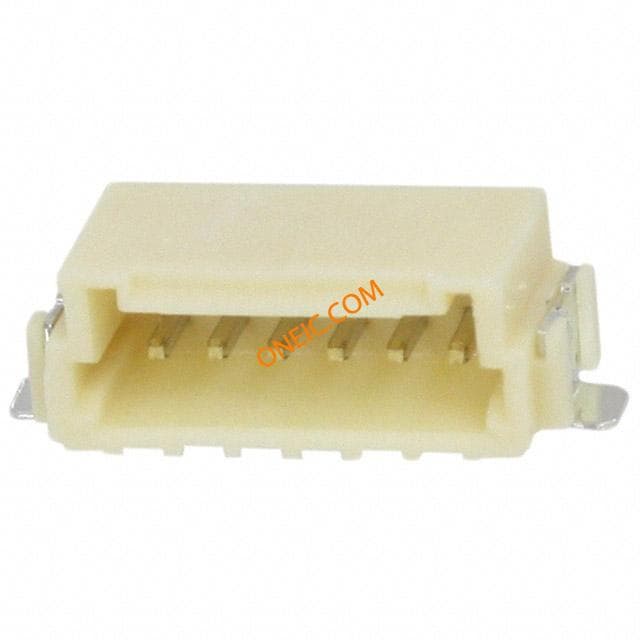

292228-6
te connectivity / amp
Conn Shrouded Header HDR 6 POS 1.5mm Solder RA SMD T/R 1.5mm AMP Mini CT CONN HEADER 6POS R/A SMD TIN Headers & Wire Housings 1.5 MINI CT SGL H Conn Shrouded Header HDR 6 POS 1.5mm Solder RA SMD T/R Product Highlights:ConnectorWire-to-BoardApplies To Printed Circuit Board1.50 mm CenterlineHeaderSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, 1.5 MINI CT SGL H SMT W/O BOSS

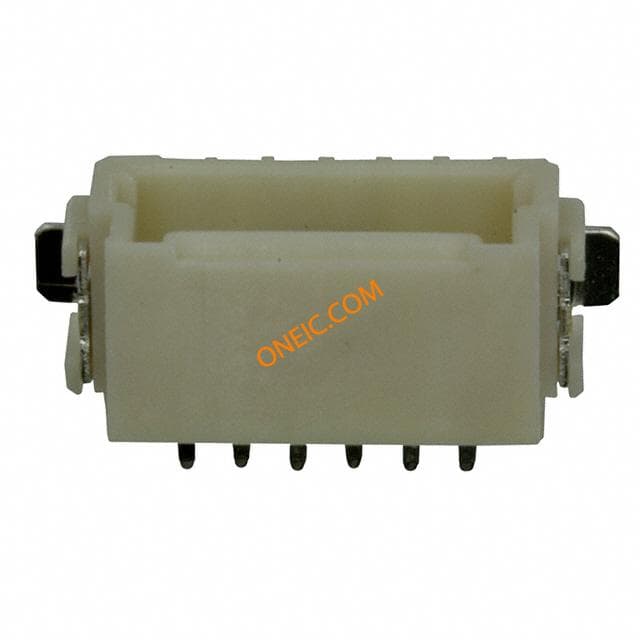

292227-6
te connectivity / amp
Conn Shrouded Header HDR 6 POS 1.5mm Solder RA SMD Embossed Tape 1.5mm AMP Mini CT CONN HEADER 6POS R/A SMD TIN Headers & Wire Housings 6P SMT HDR R/A MINI 1.5mm Conn Shrouded Header HDR 6 POS 1.5mm Solder RA SMD Embossed Tape Product Highlights:Post HeaderConnector Type = DIPNumber of Positions = 6Without Panel AttachmentTerminate To Printed Circuit BoardSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, WIRE-BOARD CONNECTOR HEADER, 6POS, 1.5MM 1.5 MINI CT SGL H SMT W BOSS 6
2106091-5
te connectivity / amp
Conn Wire to Board RCP 6 POS 1.5mm Solder ST SMD LED Interconnects CONN HEADER 6POS T/H SMD 1.5MM Lighting Connectors 6P INVERTED SMT THRU BOARD 2106091-5 Conn Wire to Board RCP 6 POS 1.5mm Solder ST SMD Search Keywords:Thru-board connector, Through-board connector, SMT thru-board connector, SMT connector, Inverted SMT, Inverted connector, LED connector, lighting connector, light connector, LED, LED lights, Thruboard, Thru board, Through board, Through-board, Throughboard CONNECTOR, HERMAPHRODITIC, 6WAY Header, straight Pitch1.5 mm Poles 6 Mini-CT, 2106091-5, TE Connectivity 6 pos Inverted Thru Board SMT Header

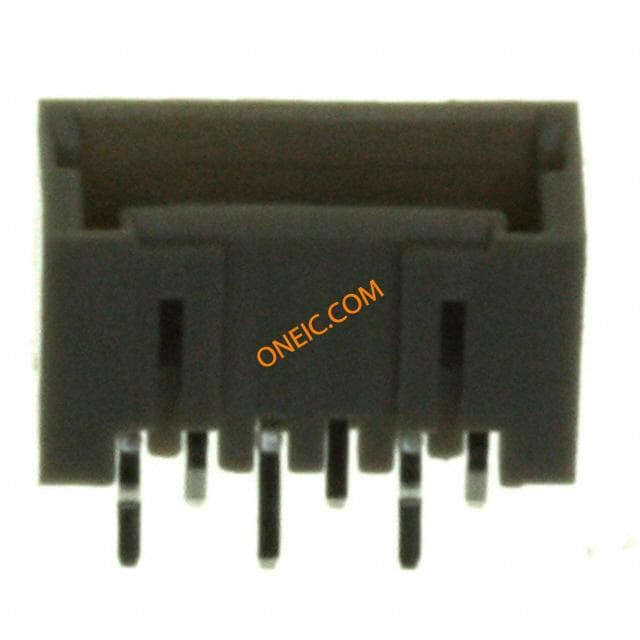

292207-6
te connectivity / amp
Conn Shrouded Header HDR 6 POS 1.5mm Solder ST Thru-Hole Loose Piece 1.5mm AMP Mini CT CONN HEADER 6POS VERT 1.5MM TIN TE Connectivity 292207 Series 1.5mm Pitch 6 Way 1 Row Straight PCB Header, Solder Termination Headers & Wire Housings 6P DIP HDR VT MINI NAT 1.5mm Conn Shrouded Header HDR 6 POS 1.5mm Solder ST Thru-Hole Loose Piece Search Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, Headerplug,PCB,1.5mm,6way,vert.,Mini-CT TE Connectivity AMP Mini CT 系列 1.5mm节距 6路 (1排) 直 PCB 针座, 焊接端接 , 通孔 MINI CT SGL DIP V 6P NAT

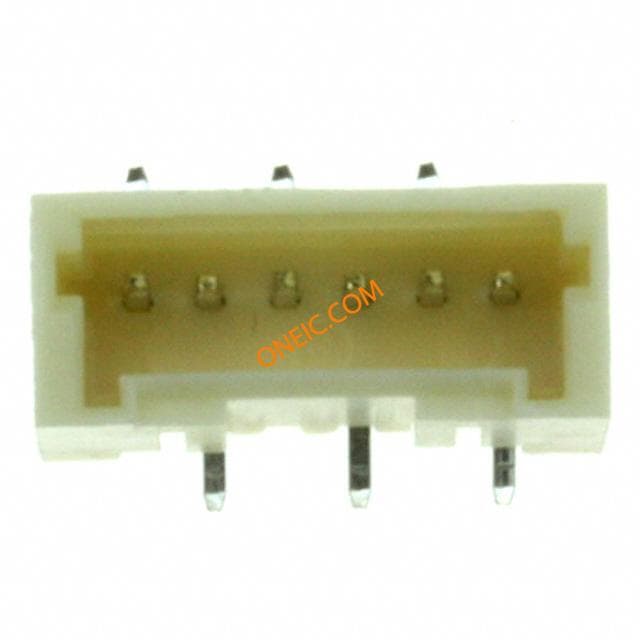

292230-6
