2106091-1
| Manufacturer | |
| Description | Conn Wire to Board RCP 2 POS 1.5mm Solder ST SMD Lighting Connectors 2P INVERTED SMT THRU BOARD LED Interconnects CONN HEADER 2POS T/H SMD 1.5MM TE Connectivity 1.5mm 2 Way 1 Row Straight Lighting Connectors Surface Mount Wire to Board Conn Wire to Board RCP 2 POS 1.5mm Solder ST SMD Product Highlights:Product Category = Connectors - Printed Circuit BoardProduct Classification = Connectors - SpecialtyConnectorConnector Type = InvertedHermaphroditicSearch Keywords:Thru-board connector, Through-board connector, SMT thru-board connector, SMT connector, Inverted SMT, Inverted connector, LED connector, lighting connector, light connector, LED, LED lights, Thruboard, Thru board, Through board, Through-board, Throughboard CONNECTOR, HERMAPHRODITIC, 2WAY Connector,inverted,SMT,MiniCT,2Way,Wht Header, straight Pitch1.5 mm Poles 2 Mini-CT, 2106091-1, TE Connectivity TE Connectivity 2路 直 1.5mm节距 表面贴装 印刷电路板插座, 线对板 2 pos Inverted Thru Board SMT Header |
| Category |
Business
| Product | Inverted Hermaphroditic Connectors | Other Names | A99870CT |
| Product Category | Lighting Connectors | Standard Package | Tape & Reel |
| Factory Pack Quantity | 2250 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| UL File Number | E28476 | Material Flammability Rating | UL 94 V-0 |
Electrical
| Range deg/s | :- | Voltage Rating | 50 V ac/dc |
| Current Rating (Max) | 3 A | Voltage - Supply (Min) | 50.0 |
Mechanical
| Depth | 4.7 mm | Pitch | 1.5 mm |
| Width | 7.25 | Height | 6.9 mm |
| Length | 9.11 | Sealed | No |
| Weight | 0.01 | Material | :High Temp. Thermoplastic |
| Packaging | Reel | Tail Type | In-line |
| Cable Type | Discrete Wire | Termination | Solder |
| Contact Type | Pin | Lead Spacing | :1.5mm |
| Mounting Type | Boardlock(s) | Connector Type | Header |
| Contact Finish | Tin Over Nickel | Mounting Style | SMD/SMT |
| Number of Rows | 1 | Plating - Body | Matte Tin-Lead over Nickel |
| Connector Style | Inverted | Height (Inches) | 6.9 |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Make Before Break | No | Termination Style | Solder |
| Color - Connectors | :Natural | Number of Contacts | 2 |
| Contact Termination | :Surface Mount Right Angle | Number of Positions | 2 |
| Center Contact Finish | 1.5 | Length - Post (Mating) | 2.4 |
| Contact Finish Thickness | 4.0 | ||
Product Info
| Type | Wire to Board | Gender | RCP |
| Series | SlimSeal | Features | Mates with 2058943-1 |
| Direction | Inverted | CAD Drawing | 3D CAD Model |
| Coded, Keyed | No | Measurement Type | 6.9 |
| Other Specifications | Yes | Application Specifics | Through Board |
| Number of Positions Loaded | All | ||
Environmental
| Mating Cycles | Without | Mechanical Life | New Technology: Cutting edge technology for the newest designs. |
| Operating Temperature | -40C to 105C | ||
Documents & Media
Similar Parts
353293-2
te connectivity / amp

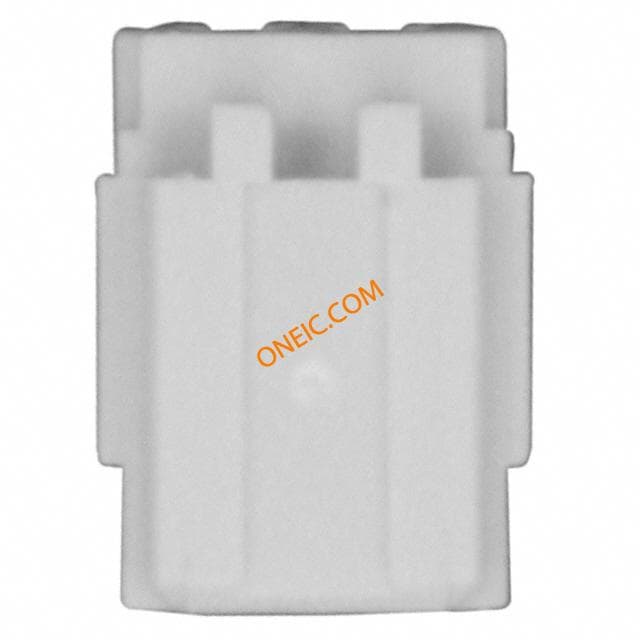

Conn IDC Connector RCP 2 POS 1.5mm IDT ST Cable Mount Bag/Box 1.5mm AMP Mini CT CONN RCPT 2POS 1.5MM 28-26AWG Receptacle assembly,MT,1.5mm,2W, Mini-CT Headers & Wire Housings RCPT 2 POS GRY MINI 1.5mm Conn IDC Connector RCP 2 POS 1.5mm IDT ST Cable Mount Bag/Box Product Highlights:Receptacle AssemblyConnector Type = MT (Mass Termination)Number of Positions = 2Without Panel AttachmentTerminate To WireSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, Receptacleassembly,MT,1.5mm,gray,2way TE Connectivity AMP Mini CT 系列 2路 1.5mm节距 母 IDC 连接器 , 电缆安装 MINI CT MT REC ASSY 2P GRAY
353908-2
te connectivity / amp

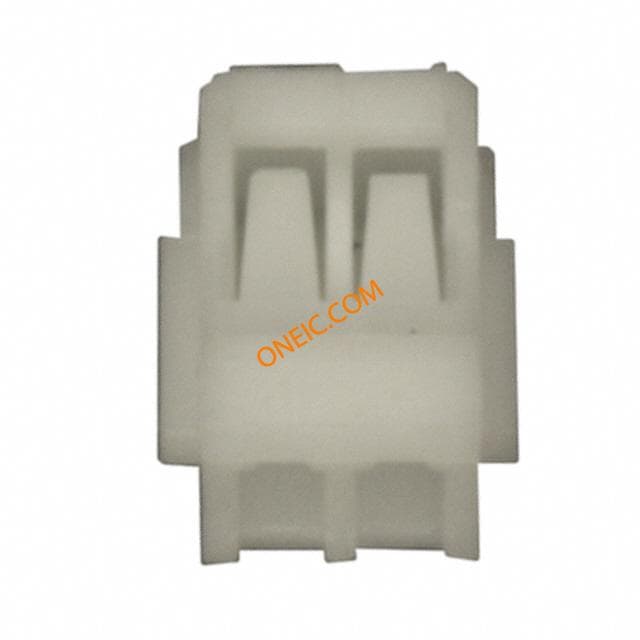

Conn Housing RCP 2 POS 1.5mm Crimp ST Box 1.5mm AMP Mini CT CONN RCPT HSNG 2POS 1.5MM CRIMP Receptacle housing,1.5mm, 2 way,Mini-CT Headers & Wire Housings RCPT 2 POS WHT MINI CRIMP 1.5mm Conn Housing RCP 2 POS 1.5mm Crimp ST Box Product Highlights:Receptacle HousingConnector Type = CrimpNumber of Positions = 2Without Panel AttachmentNumber of Rows = 1Search Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, CTRECHSG2PCRIMPTYPEWHITE TE Connectivity AMP Mini CT 系列 1.5mm 节距 2 路 直 母 PCB 壳体 CT REC HSG 2P CRIMP TYPE WHITE
2106091-5
te connectivity / amp
Conn Wire to Board RCP 6 POS 1.5mm Solder ST SMD LED Interconnects CONN HEADER 6POS T/H SMD 1.5MM Lighting Connectors 6P INVERTED SMT THRU BOARD 2106091-5 Conn Wire to Board RCP 6 POS 1.5mm Solder ST SMD Search Keywords:Thru-board connector, Through-board connector, SMT thru-board connector, SMT connector, Inverted SMT, Inverted connector, LED connector, lighting connector, light connector, LED, LED lights, Thruboard, Thru board, Through board, Through-board, Throughboard CONNECTOR, HERMAPHRODITIC, 6WAY Header, straight Pitch1.5 mm Poles 6 Mini-CT, 2106091-5, TE Connectivity 6 pos Inverted Thru Board SMT Header
2106091-4
te connectivity / amp
Conn Wire to Board RCP 5 POS 1.5mm Solder ST SMD LED Interconnects CONN HEADER 5POS T/H SMD 1.5MM Lighting Connectors 5P INVERTED SMT THRU BOARD Conn Wire to Board RCP 5 POS 1.5mm Solder ST SMD Search Keywords:Thru-board connector, Through-board connector, SMT thru-board connector, SMT connector, Inverted SMT, Inverted connector, LED connector, lighting connector, light connector, LED, LED lights, Thruboard, Thru board, Through board, Through-board, Throughboard CONNECTOR, HERMAPHRODITIC, 5WAY INVERTED,SMT,MINICT,4W 5 pos Inverted Thru Board SMT Header
2106091-3
te connectivity / amp
Conn Wire to Board RCP 4 POS 1.5mm Solder ST SMD LED Interconnects CONN HEADER 4POS T/H SMD 1.5MM Lighting Connectors 4P INVERTED SMT THRU BOARD Conn Wire to Board RCP 4 POS 1.5mm Solder ST SMD Product Highlights:Wire-to-Board1.50 mm CenterlineApplies To Printed Circuit BoardContact Current Rating, Max = 3 AOperating Voltage = 50 VACSearch Keywords:Thru-board connector, Through-board connector, SMT thru-board connector, SMT connector, Inverted SMT, Inverted connector, LED connector, lighting connector, light connector, LED, LED lights, Thruboard, Thru board, Through board, Through-board, Throughboard CONNECTOR, HERMAPHRODITIC, 4WAY 4 pos Inverted Thru Board SMT Header
2058943-1
te connectivity / amp

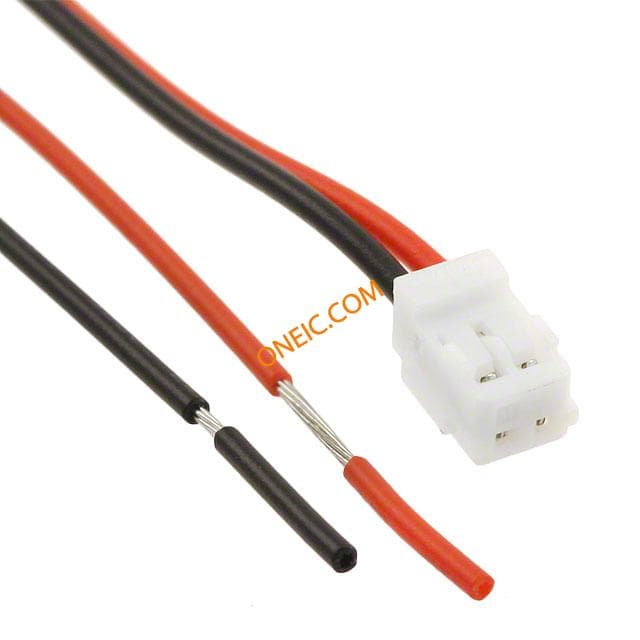

Cable Assembly 0.159m 24AWG 2 POS Mini CT Lighting Connectors 2 POS MINI CT C/A CABLE ASSY MINI CT 2POS Receptacle cable assembly,2 way, Mini-CT Cable Assembly 0.159m 24AWG 2 POS Mini CT Search Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, CABLE ASSBLY, 6IN, 2WAY Receptaclecableassembly,2way,Mini-CT 2058943-1 Series 2 Position Single Row Inverted SMT Thru Board Connector Cable assembly Pitch1.5 mm Poles 2 Mini-CT, 2058943-1, TE Connectivity TE Connectivity 158.8mm长 黑色/红色 连接器电缆组件 3 A Cable Assembly Mini CT 2 pos.
