Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 2000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | Approval Agency | CSA,UL,VDE |
| RoHSELV Compliance | RoHS compliant / ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage | 600.0 | Voltage Rating | 600 V |
| Current Rating (Max) | 14 A | Voltage - Supply (Min) | 600VAC |
Mechanical
| Color | Red | Depth | 7.85 mm |
| Pitch | 5 mm | Height | 27.5 mm |
| Length | 23.7mm | Weight | 0.00227 |
| Packaging | Bulk | Contact Type | Female Socket |
| 2nd Connector | With | Housing Color | Red |
| Mounting Type | Straight | Angle of Throw | Straight |
| Connector Type | Housing | Fastening Type | Latch Holder |
| Mounting Style | Free Hanging | Number of Rows | 1 |
| Shaft Diameter | Without | Connector Usage | In-Line |
| Locking Feature | Locking Latch | Housing Material | Thermoplastic - GF |
| Length - Overall | 23.7 mm | Mounting Feature | Without |
| Package Quantity | 100 | Primary Material | InterconnectSystem |
| Pin Hole Diameter | 0.197" | Termination Style | Crimp |
| 1st Contact Gender | Pin (Male) | Color - Connectors | :Red |
| Connector - Sensor | Without | Number of Contacts | 3 |
| Contact Termination | Crimp and Solder | Number of Positions | 3 |
| Center Contact Finish | 5.0 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Series | AMP Metrimate |
| Features | Polarizing Key | CAD Drawing | 3D CAD Model |
| Coded, Keyed | No | Manufacturer | AMP |
| Product Type | Housing | Other Specifications | No |
| For Use With/Related Products | Centerline Pin & Socket Connector, In-Line Pin & Socket Connector | ||
Environmental
| Operating Temperature | -55C to 130C | ||
Documents & Media
Online Document
Similar Parts

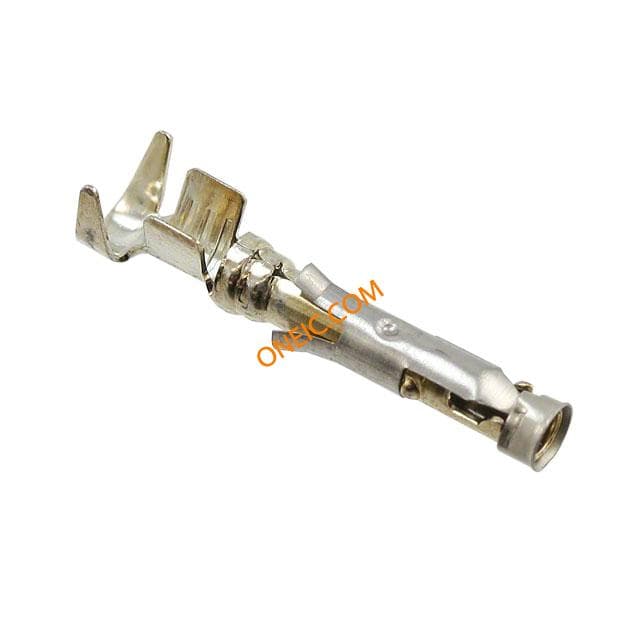

66601-1
te connectivity / amp
$2.0400
Details

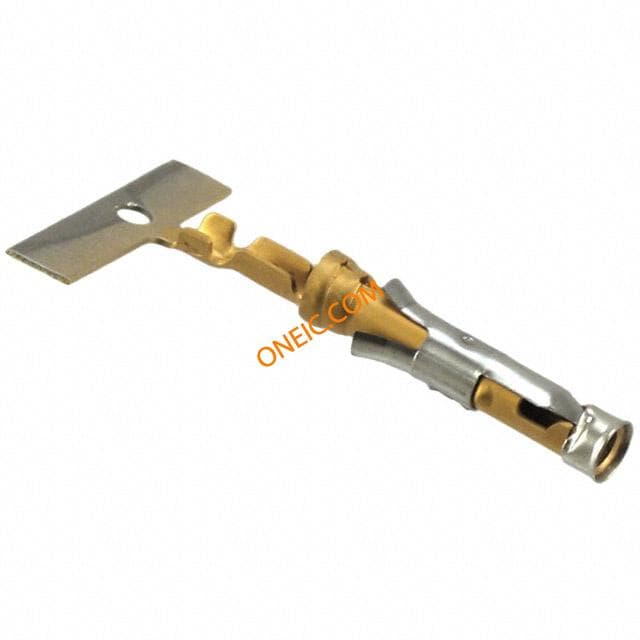

66109-4
te connectivity / amp
$5.9160
Details
66424-6
te connectivity / amp
$1.8564
Details

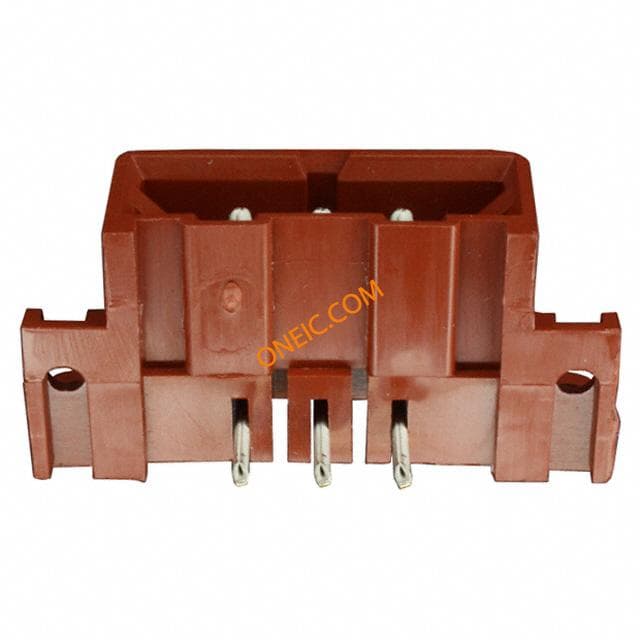

207541-6
te connectivity / amp
$78.2312
Details

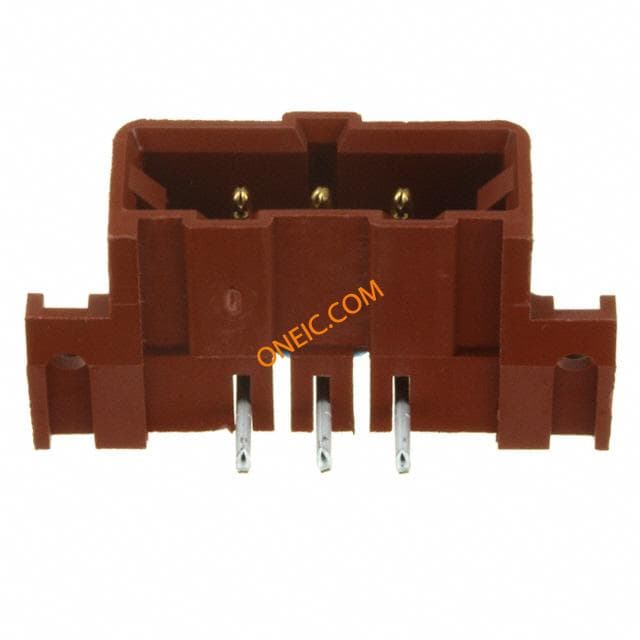

207541-7
te connectivity / amp
$55.4715
Details

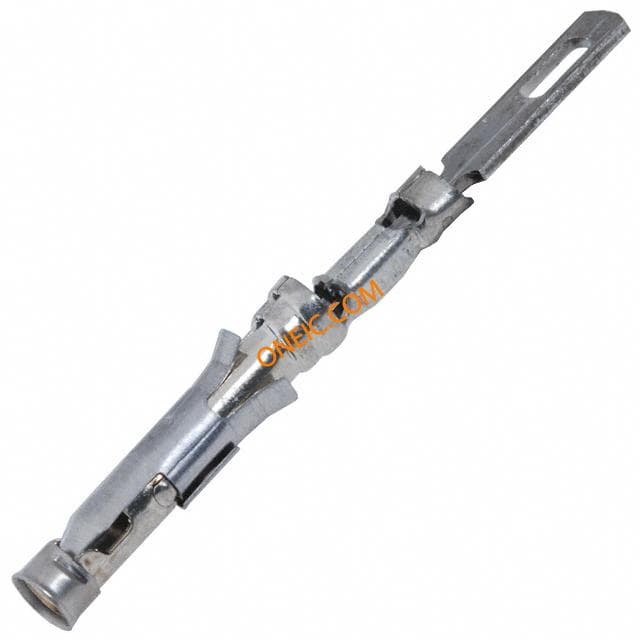

202237-5
te connectivity / amp
$8.5000
Details

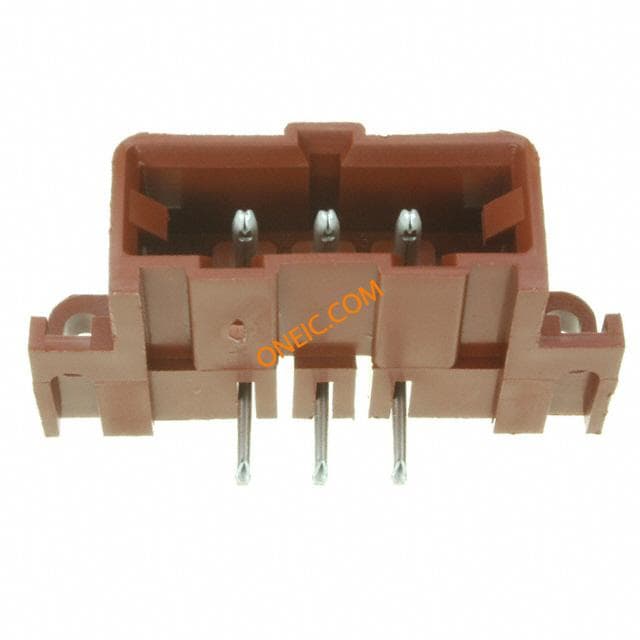

207541-3
te connectivity / amp
$107.1000
Details

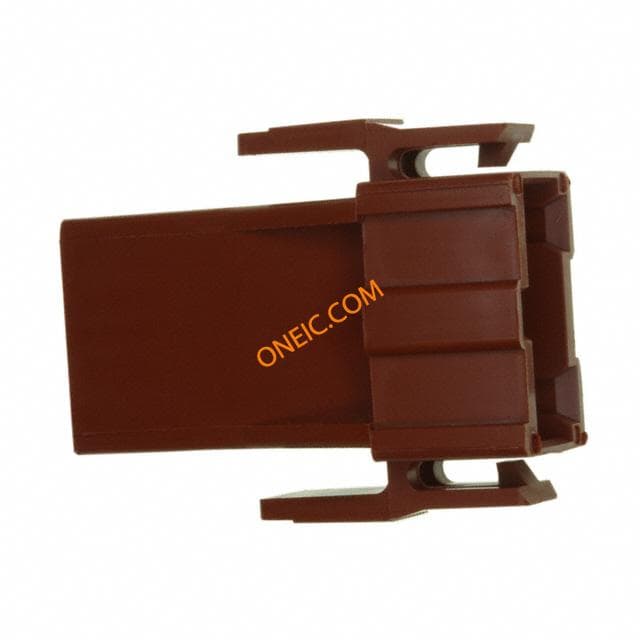

207359-1
te connectivity / amp
$7.2984
Details

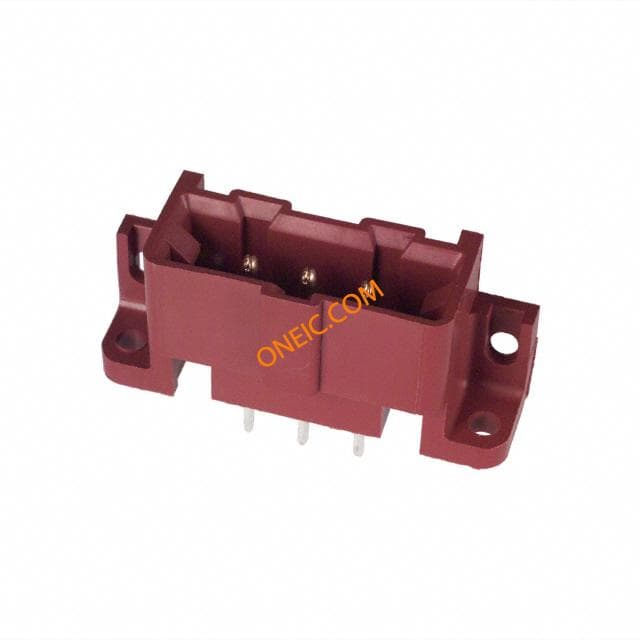

207365-3
te connectivity / amp
$117.7100
Details
207541-1
te connectivity / amp
$16.3200
Details
1-66360-2
te connectivity / amp
$4.6376
Details
1-66399-0
te connectivity / amp
$4.2180
Details

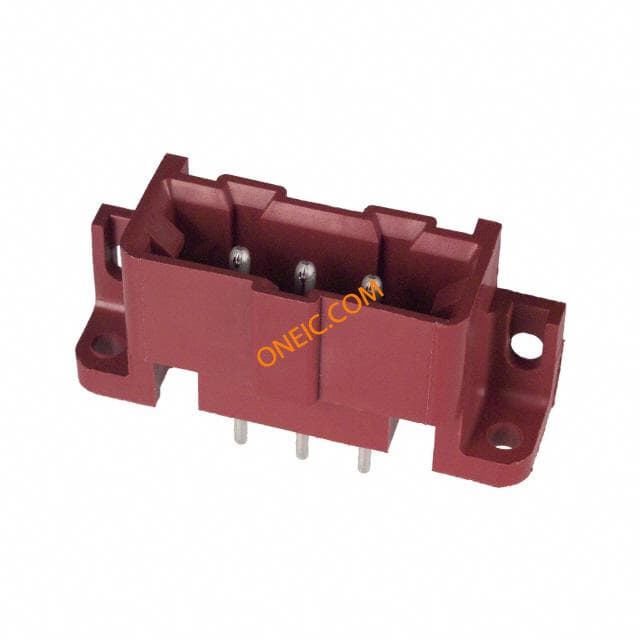

207365-1
te connectivity / amp
$78.2415
Details
66104-9
te connectivity / amp
$7.7112
Details
1-66424-1
te connectivity / amp
$6.3118
Details
207365-8
te connectivity / amp
$22.9160
Details
207365-7
te connectivity / amp
$39.1680
Details
1-66563-1
te connectivity / amp
$3.4000
Details

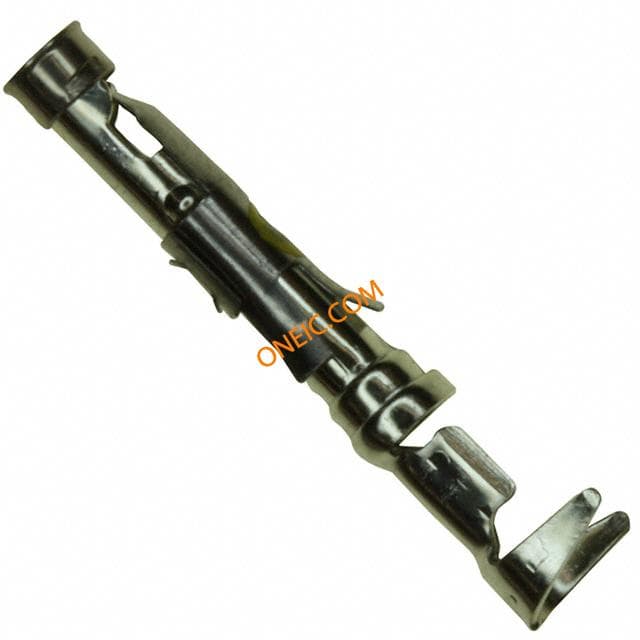

66565-7
te connectivity / amp
$4.5629
Details

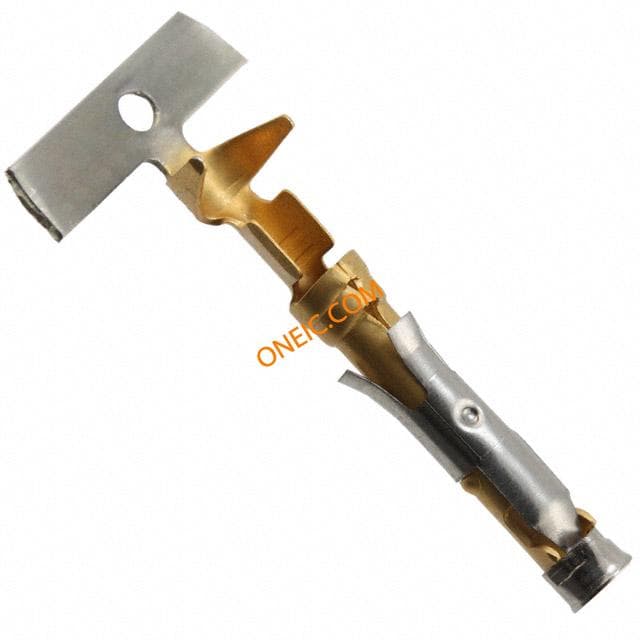

66598-9
