207359-1
| Manufacturer | |
| Description | Conn Housing RCP 3 POS 5mm ST Metrimate Connectors CONN RECEPT 3 POS METRIMATE Housing,recpt,Metrimate,1 row,3 Way Pin & Socket Connectors 3 POS CONN IN-LINE Conn Housing RCP 3 POS 5mm ST Product Highlights:HousingIn-Line Connector ConfigurationNumber of Positions = 3ReceptacleWithout Coaxial SocketSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, RECEPT HSG, 3 POSN, METRIC Housing,SoftShell;Receptacle;3;600VAC;Thermoplastic;Red;In-Line TE Connectivity Metrimate 系列 2 行 5mm 节距 3 路 直 母 压接连接器外壳 RECEPT HSG,3 POSN,METRIC |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 600 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | RoHS,ELVCompliant,ULListed |
| Tariff No | 85369010 | Leadfree Defin | Not relevant for lead free process |
| Approval Agency | CSA,UL,VDE | RoHSELV Compliance | RoHS compliant / ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage | 600.0 | Voltage Rating | 600 V |
| Current Rating (Max) | 14 A | Voltage - Supply (Min) | 600VAC |
Mechanical
| Color | Red | Depth | 33.7mm |
| Pitch | 5 mm | Width | 12.32mm |
| Height | 33.7 mm | Length | 26.25mm |
| Weight | 0.004 | Packaging | Bulk |
| Contact Type | Male Pin | 2nd Connector | With |
| Housing Color | Red | Mounting Type | Straight |
| Angle of Throw | Straight | Connector Type | Housing |
| Fastening Type | Latch Lock | Mounting Style | Free Hanging |
| Number of Rows | 2 | Shaft Diameter | Without |
| Connector Usage | In-Line | Locking Feature | Locking Tab |
| Housing Material | Thermoplastic - GF | Length - Overall | 26.25 mm |
| Mounting Feature | Without | Package Quantity | 150 |
| Primary Material | InterconnectSystem | Pin Hole Diameter | 0.197" |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Connector - Sensor | Without | Number of Contacts | 3 |
| Contact Termination | Crimp and Solder | Number of Positions | 3 |
| Center Contact Finish | 5.0 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | AMP Metrimate |
| Coded, Keyed | No | Manufacturer | AMP |
| Product Type | Housing | Configuration | In-Line |
| Other Specifications | No | For Use With/Related Products | Centerline Pin & Socket Connector, In-Line Pin & Socket Connector |
Environmental
| Operating Temperature | -55C to 130C | ||
Documents & Media
Similar Parts
207360-1
te connectivity / amp
Conn Housing PL 3 POS 5mm Crimp ST Metrimate Connectors CONN PLUG 3 POS METRIMATE Housing,plug,Metrimate,1 row,3 Way Pin & Socket Connectors 3P PLUG HOUSING Conn Housing PL 3 POS 5mm Crimp ST Product Highlights:HousingIn-Line Connector ConfigurationNumber of Positions = 3PlugWithout Coaxial SocketSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, CONN, INLINE PLUG, 3 PIN Plug,InLine,FreeHanging,3Pos TE Connectivity Metrimate 系列 5mm 节距 3 路 直 公 压接连接器外壳 PLUG HSG,3 POSN,METRIC
66103-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 20-24AWG 30 GOLD CRIMP Series1 gold plated pin contact,24-20awg Standard Circular Contacts PIN CONTACT Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 1.02 - 2.03 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 24-20 AWG, CRIMP Contact;Pin;16;Brass;Signal;Gold(30)overNickel(50);24-20AWG;Crimp Contact; male; 0.2÷0.6mm2; 20÷24AWG; Type III+; gold plated; 13A MULTIMATE Type III+ Series 24-20 AWG Discrete Wire Crimp Signal Pin Contact Crimp contact 13 A Male 20...24 AWG, 66103-4, TE Connectivity TE Connectivity Type III+ 系列 160A 公 压接端接 圆形 连接器 触芯, 24 → 20 AWG 线规格 III+ PIN,24-20,30AU/FL,LP
66406-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 26-30AWG GOLD CRIMP Contact,Pin,16,Brass,Signal,GldOverNkl Pin & Socket Connectors PIN 30-26 BR/AU SIG TYPE III Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.05-0.15 [30-26] mm [AWG]Insulation Diameter = .36 - .76 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts Contact;Pin;16;Brass;Signal;Gold(30)overNickel(50);30-26AWG;Crimp Contact; male; 0.05÷0.15mm2; 26÷30AWG; Type III+; gold plated III+ PIN,30-26,30AU/FL,LP
66106-7
te connectivity / amp
III+ PIN,26-24,15AU/FL,STRIP Multimate CONN PIN .062 24-26AWG AU CRIMP CONN PIN 24-26 AWG GOLD CRIMP Pin & Socket Connectors TYPE III + PIN 26-24 Contact PIN Crimp ST Cable Mount Strip Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinGold (15) over Nickel (50) Contact Mating Area PlatingWire Range = 0.12-0.24² [26-24] mm [AWG]Insulation Diameter = .89 - 1.40 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts
66602-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 14-18AWG GOLD CRIMP Contact male crimp 18-14AWG Multimate Standard Circular Connector PIN 18-14 AWG AU Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.79 - 3.81 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts Contact;Pin;16;Brass;Signal;Gold(30)overNickel(50);18-14AWG;Crimp MultiMate Type III+ Series 18-14 AWG Discrete Wire Crimp Signal Pin Assembly TE Connectivity Type III+ 系列 公 压接接线端子, 压接, 镀金镀镍触点 III+ PIN,18-14,30AU/FL,LP
207608-3
te connectivity / amp
Conn Wire to Board SKT 3 POS 5mm Solder RA Thru-Hole Metrimate Connectors SKT HDR ASSY,3 POSN,METRIMATE Power to the Board METRIMATE SKT HDR 3P 168
1-66106-5
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN .062 24-26AWG TIN CRIMP CONN PIN 24-26AWG TIN CRIMP Pin & Socket Connectors PIN 26-24 BR/SN SIG Contact PIN Crimp ST Cable Mount Strip Product Highlights:Contact Type = PinContact Classification = SignalType III+ SeriesBright Tin Contact Plating, Mating Area, MaterialWire Range = 0.12-0.24² [26-24] mm [AWG]Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+ PIN,26-24,TIN,STRIP
207608-7
te connectivity / amp
Conn Wire to Board SKT 3 POS 5mm Solder RA Thru-Hole Metrimate Connectors CONN HEADER SCKT 3POS R/A 30GOLD Pin & Socket Connectors SKT HDR ASSY 3P MMATE Conn Wire to Board SKT 3 POS 5mm Solder RA Thru-Hole Product Highlights:HeaderIn-Line Connector ConfigurationNumber of Positions = 3SocketWithout Coaxial SocketSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, SKT HDR ASSY,3P,MMATE
66359-9
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN .062 14-18AWG AU CRIMP CONN PIN 14-18AWG GOLD CRIMP Contact male crimp 18-14AWG Multimate Pin & Socket Connectors III+ PIN18-1415 Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinGold (15) Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+PIN,18-14,15AU/FL,STRIP Multimate Type III AWG 18 - 14 Insulated Discrete Wire Crimp Pin Contact TE Connectivity Type III+ 系列 公 压接接线端子, 压接, 镀金镀镍触点 III+ PIN,18-14,15AU/FL,STRIP
207609-7
te connectivity / amp

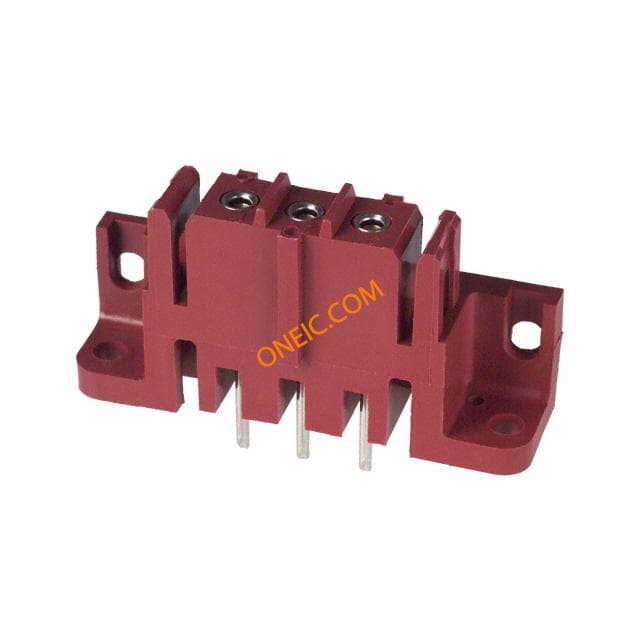

Conn Wire to Board SKT 3 POS 5mm Solder ST Panel Mount Metrimate Connectors CONN HEADER SOCKT 3POS VERT GOLD Pin & Socket Connectors 3P SOCKET HEADER GLD METRIMATE Conn Wire to Board SKT 3 POS 5mm Solder ST Panel Mount Product Highlights:HeaderIn-Line Connector ConfigurationNumber of Positions = 3SocketWithout Coaxial SocketSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, SKT HDR ASSY,3P,MMATE LF
207609-6
te connectivity / amp

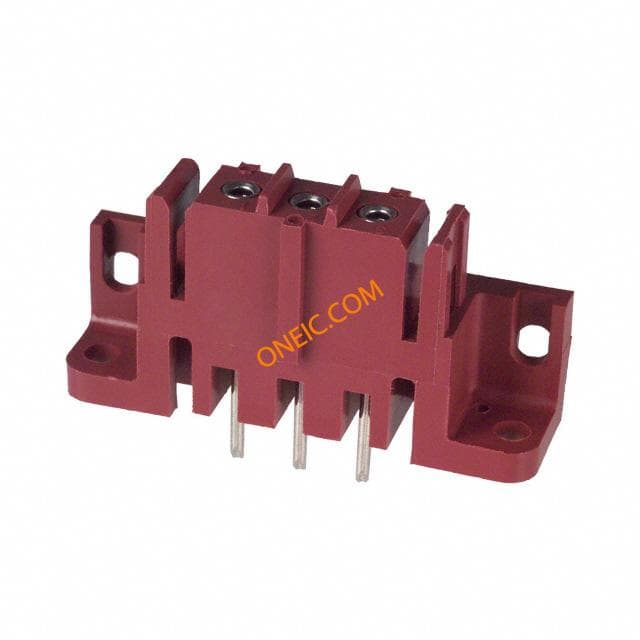

Conn Wire to Board SKT 3 POS 5mm Solder ST Thru-Hole Metrimate Connectors CONN HEADER SOCKT 3POS VERT TIN TE Connectivity AMP Metrimate Series 5mm 3 Way 1 Row Straight PCB Socket Through Hole Wire to Board Pin & Socket Connectors 3P SOCKET HEADER TIN METRIMATE Conn Wire to Board SKT 3 POS 5mm Solder ST Thru-Hole Product Highlights:HeaderIn-Line Connector ConfigurationNumber of Positions = 3SocketWithout Coaxial SocketSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, CONNECTOR, HEADER, 3WAY SOCKETHEADER3WAYPCB TE Connectivity Metrimate 系列 3路 直 5mm节距 通孔 印刷电路板插座, 线对板 SKT HDR ASSY,3 POSN,METRIMATE
