2-640623-0
| Manufacturer | |
| Description | Conn IDC Connector F 20 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers MTA CONN ASSY 28 AWG STD 20POS Headers & Wire Housings 20P MTA100 CONN ASSY F/T GRN MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:Connector Assembly20 PositionsConnector Style = ReceptacleContact Type = ReceptacleConnector Design = Feed ThroughSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 20P MTA100 CONN ASSY F/T GRN |
| Category |
Business
| Other Names | Q1137158 | Standard Pack | 250 |
| Standard Package | Bulk | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | UL Rating | 获得认可 |
| Leadfree Defin | Not relevant for lead free process | UL File Number | E28476 |
| CSA File Number | LR7189 | Standard Number | CSA, UL |
| CSA Certification | Certified | RoHSELV Compliance | Not ELV/RoHS compliant |
| Material Flammability Rating | UL 94V-2 | ||
Electrical
| Voltage Rating | 250 VAC | Voltage - Supply | 250 |
| Voltage - Rated AC | 250 | Connector Impedance | IDC |
| Current Rating (Max) | 5 | ||
Mechanical
| Color | Green | Pitch | 2.54 mm |
| Height | 7.75 mm [ .305 in ] | Length | 50.8 mm [ 2 in ] |
| Packaging | Bulk | Shrouding | No |
| Wire Type | Discrete or Ribbon Cable | Body Color | 白色 |
| Cable Exit | 90° | Cable Type | 分离式导线, 绞线 |
| Wire Gauge | 28 AWG | Termination | IDT |
| Contact Type | Female Socket | 2nd Connector | With |
| Housing Color | Green | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Feed Thru | Contact Finish | Tin-Lead Over Nickel |
| Contact Timing | Without | Fastening Type | Locking Ramp |
| Mounting Style | Wire | Number of Rows | 1 |
| Shell Material | 标准 | Connector Usage | Receptacle |
| Insert Material | 铜合金 | Contact Material | Phosphor Bronze |
| Housing Material | Nylon | Mounting Feature | Without |
| Package Quantity | Loose Piece | Panel Mount Type | Without |
| Cable Termination | IDC | Termination Style | IDC |
| 1st Contact Gender | Socket (Female) | Mating Orientation | Without |
| Number of Contacts | 20 | Termination Finish | 带有 |
| Contact Termination | Locking Lance | Insulation Diameter | 1.52 mm [ .06 in ] |
| Number of Positions | 20 | Compatible Shell Size | MTA .100 头和 MTA .100 IDC 柱形连接器 |
| Mounting Hole Diameter | 不带 | Contact Finish - Mating | 锡铅 |
| Contact Layout, Typical | 2.54 [0.100] | Surface Mount Land Size | Without |
| Contact Finish Thickness | 80µin (2.03µm) | Small Diameter Recovered | No |
| Wire Gauge or Range - mm2 | 0.08-0.09² [28] | Static Discharge Shielding | 带有 |
Product Info
| Note | 肋之间的条纹可能会减少 | Type | IDC Connector |
| Gender | F | Series | MTA-100 |
| Features | Feed Through | Sealable | 否 |
| Manufacturer | AMP | Product Type | MTA-100 Connectors |
| Connection Type | Wire | Number of Positions Omitted | None |
Environmental
| Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] | ||
Documents & Media
Similar Parts
2-641124-0
te connectivity / amp
Conn Wire to Board HDR 20 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 20PS STR .100 15GOLD Headers & Wire Housings 20P MTA100 HDR ASSY P/STR 15AU 20P MTA100 HDR ASSY P/STR 15AU 20P MTA100 HDR ASSY P/STR 15AU Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
644352-3
te connectivity / amp
Conn Unshrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole CONN HEADER 20POS VERT .100 TIN

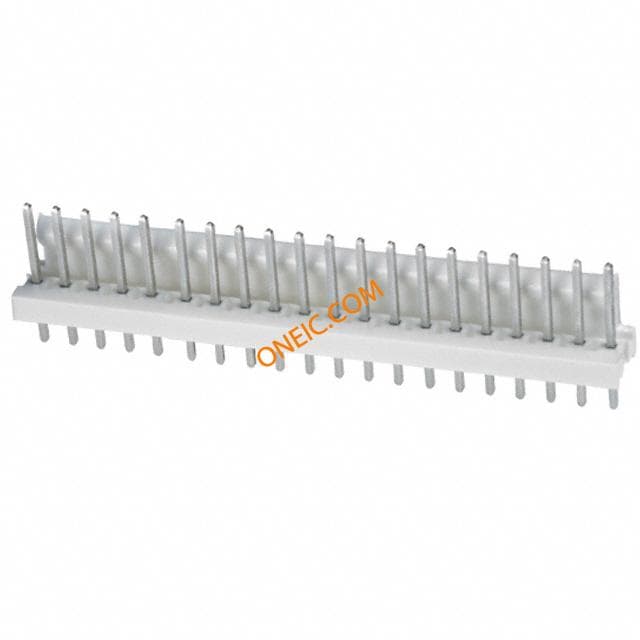

2-640456-0
