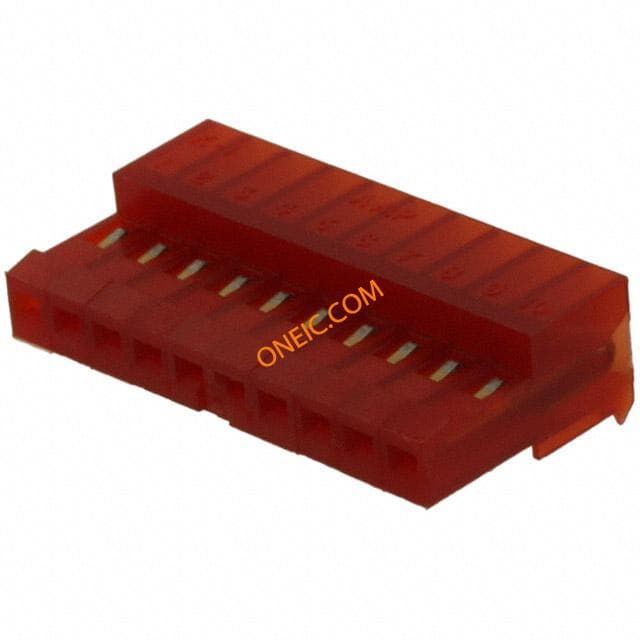

4-641214-0
| Manufacturer | |
| Description | Conn Wire to Board HDR 10 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A 10POS .100 30AU Headers & Wire Housings 10P HDR ASSY PO/RA Conn Wire to Board HDR 10 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 10Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 10P MTA100 HDR ASSY PO/RA LF |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | UL File Number | E28476 |
| CSA File Number | LR7189 | Standard Number | CSA, UL |
| CSA Classification | 已认证 | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 250 V | Voltage - Supply | 250 |
| Voltage - Rated AC | 250 | Connector Impedance | 焊接 |
| Current Rating (Max) | 5 | ||
Mechanical
| Color | Natural | Pitch | 2.54 mm |
| Height | 7.75 mm [ .305 in ] | Length | 25.4 mm [ 1 in ] |
| Packaging | Bulk | Shrouding | No |
| Body Color | 自然 | Lead Style | 正方形 |
| Termination | Solder | Contact Type | Male Pin |
| 2nd Connector | Without | Contact Shape | Square |
| Housing Color | White | Mounting Type | Right Angle |
| Connector Type | Header, Unshrouded | Contact Finish | Gold Over Nickel |
| Contact Timing | Without | Mounting Style | 不带 |
| Number of Rows | 1 | Shell Material | 极化 |
| Connector Usage | Header | Insert Material | 铜合金 |
| Contact Material | Copper Alloy | Housing Material | Polyester |
| Mounting Feature | Without | Package Quantity | 1 |
| Panel Mount Type | Without | Size / Dimension | 0.64 [.025] |
| Termination Style | Through Hole | 1st Contact Gender | Pin (Male) |
| Mating Orientation | With | Number of Contacts | 10 |
| Termination Finish | 不带 | Number of Positions | 10 |
| Actuator Orientation | 前部 | Backshell Interrupts | Without |
| Bushing, Grommet Type | 不带 | Compatible Shell Size | MTA .100 连接器组件 |
| Contact Length - Post | 3.56 mm [ .14 in ] | Mounting Hole Diameter | 不带 |
| Contact Finish - Mating | 锡 | Contact Layout, Typical | 2.54 [0.100] |
| Contact Length - Mating | 0.295" (7.49mm) | Contact Material - Post | Copper Alloy |
| Termination Post Length | 3.56 [0.140] | Contact Finish Thickness | 30µin (0.76µm) |
| Small Diameter Recovered | No | Static Discharge Shielding | 不带 |
| Jacket (Insulation) Thickness | 1.27 µm, 50 µin | ||
Product Info
| Type | Wire to Board | Gender | HDR |
| Series | MTA-100 | Features | Polarizing Key |
| Sealable | 否 | Manufacturer | AMP |
| Product Type | MTA-100 Connectors | Connection Type | Printed Circuit Board |
| Application Specifics | Wire-to-Board | Number of Positions Loaded | All |
| Number of Positions Omitted | None | ||
Environmental
| Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] | Thermal Resistance of Package | 1.6 mm [ .063 in ] |
Documents & Media
