2-640456-0
| Manufacturer | |
| Description | Conn Wire to Board HDR 20 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 20POS .100 TIN TE Connectivity MTA-100 Series 2.54mm Pitch 20 Way 1 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings HEADER 20 POS Conn Wire to Board HDR 20 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 20Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Header,FrictionLock;MTA-100;20;250VAC;Polyester;Tin;CopperAlloy;Tin TE Connectivity MTA-100 系列 2.54mm节距 20路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 20P MTA100 HDR ASSY F/L SQ STR |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 1000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | RoHSCompliant,ELVCompliant,UL94V-0 |
| UL Rating | 获得认可 | Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| UL File Number | E28476 | Approval Agency | CSA,UL |
| CSA File Number | LR7189 | Standard Number | CSA, UL |
| CSA Certification | Certified | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 250 V ac | Switch Function | Friction Lock |
| Voltage - Supply | 250 | Contact Resistance | 6 mohm |
| Voltage - Rated AC | 250 | Connector Impedance | 焊接 |
| Current Rating (Max) | 5A | Voltage - Supply (Min) | 250VAC |
Mechanical
| Color | Natural | Depth | 5.72 mm |
| Pitch | 2.54 mm | Height | 10.03 mm |
| Length | 50.8 mm [ 2 in ] | Packaging | Bulk |
| Port Size | 0.025in. | Shrouding | No |
| Body Color | 自然 | Orientation | 直 |
| Termination | Solder | Contact Type | Male Pin |
| Length - Pin | 0.295" | Polarization | Polarizing Slot |
| 2nd Connector | With | Contact Shape | Square |
| Housing Color | White | Mounting Type | Vertical |
| Angle of Throw | Straight | Connector Type | Header, Unshrouded |
| Contact Finish | Tin | Contact Timing | Without |
| Fastening Type | Friction Lock | Mounting Style | Through Hole |
| Number of Rows | 1 | Plating - Body | Tin |
| Shell Material | 摩擦锁 | Connector Usage | Header |
| Insert Material | 铜合金 | Locking Feature | Friction Lock |
| Contact Material | Copper Alloy | Housing Material | Polyester |
| Length - Overall | 50.8 mm | Mounting Feature | Without |
| Package Quantity | 1 | Panel Mount Type | Without |
| Primary Material | InterconnectSystem | Size / Dimension | 0.64 [.025] |
| Termination Rows | 焊接 | Pin Hole Diameter | 0.1" |
| Termination Style | Through Hole | 1st Contact Gender | Pin (Male) |
| Mating Orientation | With | Number of Contacts | 20 |
| Termination Finish | 不带 | Contact Termination | Tin |
| Number of Positions | 20 | Backshell Interrupts | Without |
| Compatible Shell Size | MTA .100 连接器组件 | Contact Length - Post | 3.56 mm [ .14 in ] |
| Center Contact Plating | 0.100in. | Length - Post (Mating) | 0.14in. |
| Mounting Hole Diameter | 0.04" | Contact Finish - Mating | 锡 |
| Contact Layout, Typical | 同轴 | Contact Length - Mating | 0.295" (7.49mm) |
| Contact Material - Post | Copper Alloy | Surface Mount Land Size | Without |
| Termination Post Length | 3.56 [0.140] | Contact Finish Thickness | 3.81 µm [ 150 µin ] |
| Small Diameter Recovered | No | Static Discharge Shielding | 不带 |
| Jacket (Insulation) Thickness | 1.27 µm, 50 µin | ||
Product Info
| Type | Wire to Board | Gender | HDR |
| Series | MTA-100 | Coverage | 无覆盖 |
| Features | Pinstrip | Sealable | 否 |
| Manufacturer | AMP | Product Type | MTA-100 Connectors |
| Connection Type | Printed Circuit Board | Application Specifics | Wire-to-Board |
| Number of Positions Loaded | All | Number of Positions Omitted | None |
Environmental
| Operating Temperature | -55C to 105C | Thermal Resistance of Package | 1.6 mm [ .063 in ] |
Documents & Media
Similar Parts
2-640623-0
te connectivity / amp
Conn IDC Connector F 20 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers MTA CONN ASSY 28 AWG STD 20POS Headers & Wire Housings 20P MTA100 CONN ASSY F/T GRN MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:Connector Assembly20 PositionsConnector Style = ReceptacleContact Type = ReceptacleConnector Design = Feed ThroughSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 20P MTA100 CONN ASSY F/T GRN
2-1375820-0
te connectivity / amp
Conn Housing RCP 20 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 20POS .100 CRIMP WHITE Headers & Wire Housings RCPT 20 POS .100 WHT CST-100 II Conn Housing RCP 20 POS 2.54mm Crimp ST Product Highlights:20 PositionsWithout ContactsHousing Gender = Connector - ReceptacleHousing Accepts Contact Type = ReceptacleCST-100 II Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CST-100IIHOUSING12POS CST-100 II HOUSING 20 POS

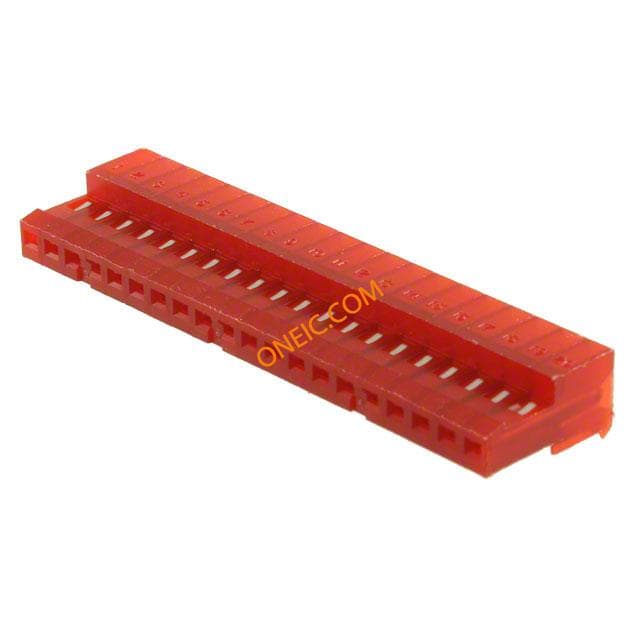

5-640440-0
