2-1445050-2
| Manufacturer | |
| Description | Conn Power HDR 2 POS 3mm Solder ST Thru-Hole 2 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 2POS TIN T/H TE Connectivity 3mm 2 Way 1 Row Straight Through Hole Male Multiway Connector Pin & Socket Connectors HDR VERT 2 POS TIN SINGLE ROW Conn Power HDR 2 POS 3mm Solder ST Thru-Hole 2 Terminal 1 Port Product Highlights:Header AssemblyNumber of Positions = 2Number of Rows = SingleVertical Mount AngleMount Style = Through-HoleSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp,
low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PLUG & SOCKET CONNECTOR, HEADER, 2POS, 3MM Header2waypinMicroMate-n-Lok Pin header Pitch3 mm Poles 2 Contact DesignMale MATE-N-LOK, 2-1445050-2, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 3mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 MICRO MNL HDR ASSY S/ROW LF |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Reflow solder capable to 245°C, Reflow solder capable to 260°C | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 250 V ac | Current Rating (Max) | 5A |
| Voltage - Supply (Min) | 250VAC | ||
Mechanical
| Color | Black | Depth | 5.67 mm |
| Pitch | 3 mm | Height | 9.24mm |
| Weight | 0.00001 | Packaging | Tray |
| Termination | Solder | Contact Type | Male Pin |
| Polarization | With | Housing Color | Black |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Matte Tin | Fastening Type | Locking Ramp |
| Mounting Style | Through-Hole | Number of Rows | Single |
| Contact Material | Brass | Housing Material | Nylon |
| Length - Overall | 3.00 [0.118] | Termination Style | Solder Pin |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 2 |
| Contact Termination | :Through Hole Vertical | Number of Positions | 2 |
| Contact Finish Thickness | 100µin (2.54µm) | 1st Connector Mounting Type | :PCB |
Product Info
| Type | Power | Gender | HDR |
| Series | Mate-N-Lok | Features | Board Guide |
| Product Type | Header Assembly | Number of Ports | 1 Port |
| Number of Positions Loaded | All | ||
Environmental
| Temperature Rating | High | Operating Temperature | -40C to 105C |
| Operating Temperature - Junction | 105C | ||
Documents & Media
Similar Parts
1445022-2
te connectivity / amp
Conn Housing RCP 2 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RECEPT 3MM 2POS MATE-N-LOK 2 way 1 row receptacle Mate-N-Lok Pin & Socket Connectors RECPT SINGLE ROW 2P Conn Housing RCP 2 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 2Number of Rows = Single3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PLUG & SOCKET HOUSING, RECEPTACLE, 2POS, 3MM RECEPTACLE, SINGLE ROW, 2WAY Connector,SoftShell;Nylon;Receptacle;Black;2;Single;0.118in.;UL94V-0 Crimp housing Pitch3 mm Poles 1 x 2 MATE-N-LOK Micro, 1445022-2, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 3mm 节距 2 路 直 母 压接连接器外壳 MICRO MNL RECEPT HSG SINGLE R

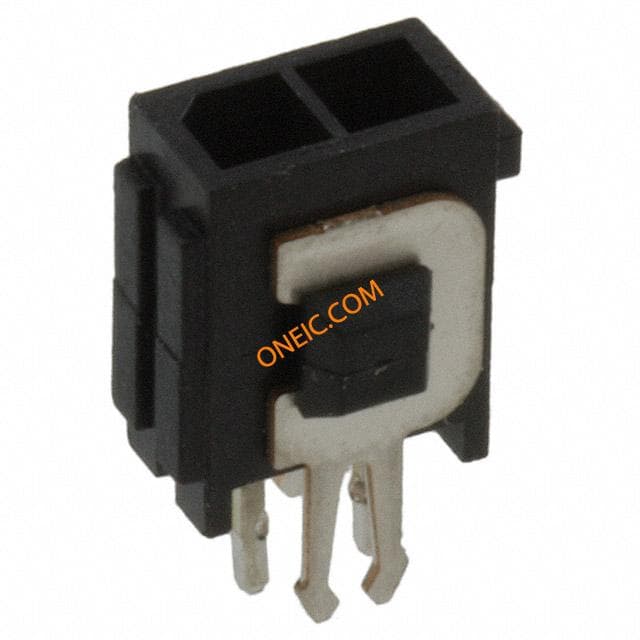

3-794680-2
