3-794680-2
| Manufacturer | |
| Description | Conn Power HDR 2 POS 3mm Solder ST Thru-Hole 2 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 2POS DUAL VERT TIN Pin & Socket Connectors 2P VERT HDR PLUG 3.18MM 250V 5A BLACK 3mm Centerline, 250V, 5 A max. Product Highlights:Header AssemblyNumber of Positions = 2Number of Rows = DualVertical Mount AngleMount Style = Through-HoleSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp,
low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PLUG & SOCKET CONNECTOR, PLUG, 2POS, 3MM 02P MICRO MNL ASSY,VRT,THRU LF |
| Category |
Business
| Standard Pack | 533 | Standard Package | Bulk |
| Factory Pack Quantity | 533 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366910 |
| Leadfree Defin | Reflow solder capable to 245°C, Reflow solder capable to 260°C | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 250 V | Current Rating (Max) | 5 A |
Mechanical
| Color | Black | Pitch | 3 mm |
| Weight | 0.002 | Plating | Tin |
| Packaging | Bulk | Row Spacing | 0.118" (3.00mm) |
| Termination | Solder | Contact Type | Male Pin |
| Polarization | Without | Housing Color | Black |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Matte Tin | Fastening Type | Locking Ramp |
| Mounting Style | Through-Hole | Number of Rows | Dual |
| Contact Material | Brass | Housing Material | High Temperature Nylon |
| Termination Style | Solder | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 2 | Contact Termination | :Through Hole Vertical |
| Number of Positions | 2 | Center Contact Material | 3.00 [0.118] |
| Contact Finish Thickness | 100µin (2.54µm) | 1st Connector Mounting Type | :PCB |
Product Info
| Note | Retention feature located on end contacts only. | Type | Power |
| Gender | HDR | Series | Micro Mate-N-Lok |
| Features | Board Lock | Manufacturer | AMP |
| Product Type | Header Assembly | Number of Positions Loaded | All |
Documents & Media
Similar Parts

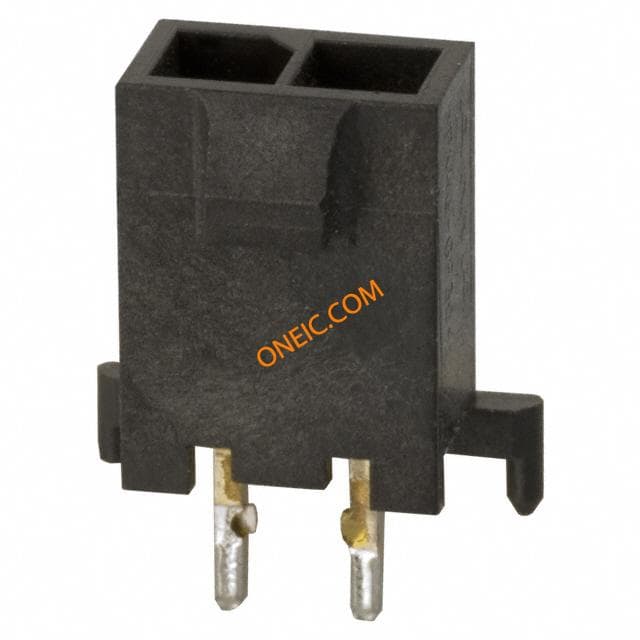

2-1445050-2
