1445022-2
| Manufacturer | |
| Description | Conn Housing RCP 2 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RECEPT 3MM 2POS MATE-N-LOK 2 way 1 row receptacle Mate-N-Lok Pin & Socket Connectors RECPT SINGLE ROW 2P Conn Housing RCP 2 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 2Number of Rows = Single3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp,
low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PLUG & SOCKET HOUSING, RECEPTACLE, 2POS, 3MM RECEPTACLE, SINGLE ROW, 2WAY Connector,SoftShell;Nylon;Receptacle;Black;2;Single;0.118in.;UL94V-0 Crimp housing Pitch3 mm Poles 1 x 2 MATE-N-LOK Micro, 1445022-2, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 3mm 节距 2 路 直 母 压接连接器外壳 MICRO MNL RECEPT HSG SINGLE R |
| Category |
Business
| Other Names | A30258 | Product Category | Pin & Socket Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | Approval Agency | :CSA, UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 250 V | Contact Resistance | :20mohm |
| Voltage - Breakdown | :1500V | Current Rating (Max) | 5 A |
| Insulation Resistance | :1000Mohm | Voltage - Supply (Min) | 250VAC |
Mechanical
| Color | Black | Depth | 14.04 mm |
| Pitch | 3 mm | Width | 8.7mm |
| Height | 8.7 mm | Length | 7mm |
| Weight | 0.002 | Material | :Nylon |
| Packaging | Bulk | Wire Gauge | (20-24)/(26-30) AWG |
| Contact Type | Female Socket | Body Material | :Nylon |
| Housing Color | Black | Mounting Type | Straight |
| Connector Type | Receptacle | Fastening Type | Latch Lock |
| Mounting Style | Wire | Number of Rows | 1 |
| Package / Case | Receptacle | Insertion Force | :6.67N |
| Contact Material | Phosphor Bronze | Housing Material | Nylon |
| Length - Overall | 7 mm | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Color - Connectors | :Black |
| Number of Contacts | 2 | Contact Termination | Crimp |
| Number of Positions | 2 | Center Contact Material | 3.00 [0.118] |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | MATE-N-LOK |
| Product Type | Housing | For Use With/Related Products | Centerline Soft Shell Pin & Socket Connector |
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
Similar Parts
2-1445051-2
te connectivity / amp
Conn Power HDR 2 POS 3mm Solder ST Thru-Hole 2 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 2POS VERT T/H TIN Pin & Socket Connectors MICRO MNL HDR ASSY S/ROW LF 3mm Centerline, 250V, 5 A max. Product Highlights:Header AssemblyNumber of Positions = 2Number of Rows = SingleVertical Mount AngleMount Style = Through-HoleSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector MICRO MNL HDR ASSY S/ROW LF
1445087-2
te connectivity / amp
Conn Power HDR 2 POS 3mm Solder ST SMD 2 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 2POS STR 15GOLD SMD Pin & Socket Connectors MICRO MNL HDR ASSY Conn Power HDR 2 POS 3mm Solder ST SMD 2 Terminal 1 Port Product Highlights:HeaderConnector Type = Header - PinSurface Mount Contact Termination TypeNumber of Positions = 2Number of Rows = 1Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
1445055-2
te connectivity / amp
Conn Power HDR 2 POS 3mm Solder RA Thru-Hole 2 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 2POS R/A TIN Pin & Socket Connectors HDR ASSY 2 POS R/A SINGLE ROW TIN Conn Power HDR 2 POS 3mm Solder RA Thru-Hole 2 Terminal 1 Port Product Highlights:Header AssemblyNumber of Positions = 2Number of Rows = SingleRight Angle Mount AngleMount Style = Through-HoleSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
2-1445094-2
te connectivity / amp
Conn Power HDR 2 POS 3mm Solder ST Thru-Hole 2 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 2POS VERT T/H 30GOLD Pin & Socket Connectors MICRO MNL HDR ASSY S/ROW AU LF Conn Power HDR 2 POS 3mm Solder ST Thru-Hole 2 Terminal 1 Port Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector MICRO MNL HDR ASSY S/ROW AU LF
1445094-2
te connectivity / amp
Conn Power HDR 2 POS 3mm Solder ST Thru-Hole 2 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 2POS STR 30GOLD T/H Pin & Socket Connectors MICRO MNL HDR ASSY S 3mm Centerline, 250V, 5 A max. Product Highlights:Header AssemblyNumber of Positions = 2Number of Rows = SingleVertical Mount AngleMount Style = Through-HoleSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
1445100-2
te connectivity / amp
Conn Power HDR 2 POS 3mm Solder RA SMD 2 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 2POS R/A GOLD SMD Pin & Socket Connectors HDR ASSY 2 POS R/A SINGLE ROW 30 AU MICRO MNL HDR ASSY SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
1445053-2
te connectivity / amp
Conn Power HDR 2 POS 3mm Solder ST SMD 2 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 2POS TIN SMD Pin & Socket Connectors HDR VERT 2 POS TIN SINGLE ROW Conn Power HDR 2 POS 3mm Solder ST SMD 2 Terminal 1 Port Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
2-1445056-2
te connectivity / amp
Conn Power HDR 2 POS 3mm Solder RA SMD 2 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 2POS RT ANG SMD TIN Pin & Socket Connectors MICRO MNL HDR ASSY SINGLE ROW 3mm Centerline, 250V, 5 A max. Product Highlights:ConnectorHeaderPreloadedHeader Gender = PlugContact Gender = PinSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector MICRO MNL HDR ASSY SINGLE ROW

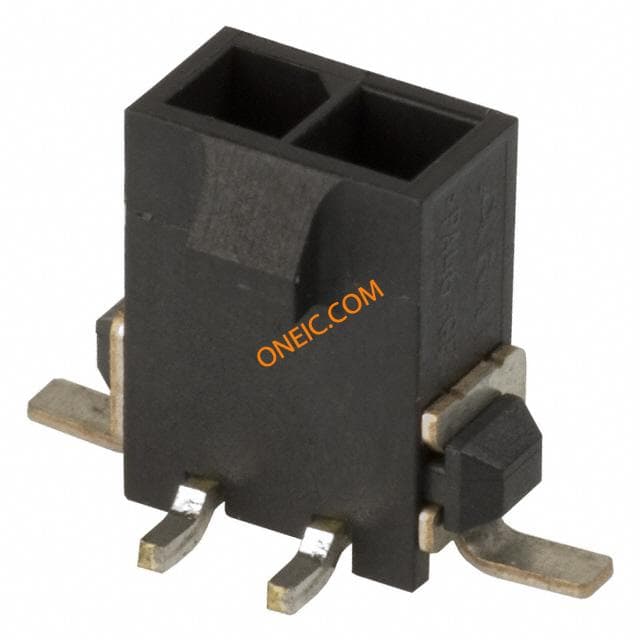

2-1445096-2
te connectivity / amp
Conn Power HDR 2 POS 3mm Solder ST SMD 2 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 2POS GOLD SMD Pin & Socket Connectors HDR VERT 2 POS 30AU SINGLE ROW 3mm Centerline, 250V, 5 A max. Product Highlights:ConnectorConnector Type = Header - PinSurface Mount Contact Termination Type2 PositionsNumber of Rows = 1Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector PLUG & SOCKET CONNECTOR, PLUG, 2POS, 3MM MICRO MNL HDR ASSY SINGLE ROW
2-1445053-2
te connectivity / amp
Conn Power HDR 2 POS 3mm Solder ST SMD 2 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 2POS TIN SMD TE Connectivity Micro MATE-N-LOK Series 3mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 5A Pin & Socket Connectors HDR VERT 2 POS TIN SINGLE ROW Conn Power HDR 2 POS 3mm Solder ST SMD 2 Terminal 1 Port Product Highlights:Header AssemblyNumber of Positions = 2Number of Rows = SingleVertical Mount AngleMount Style = Surface MountSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HEADERVERTPCB2WAYPIN Pin header Pitch3 mm Poles 2 Contact DesignMale MATE-N-LOK, 2-1445053-2, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 3mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 5A , 表面安装 MICRO MNL HDR ASSY S/ROW LF

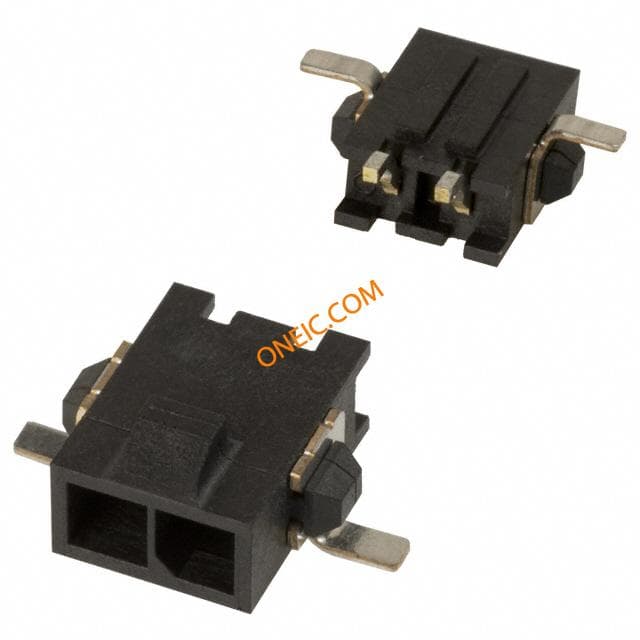

2-1445100-2
