4-1634688-0
| Manufacturer | |
| Description | Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 40POS .100 VERT GOLD TE Connectivity 4-1634688 Series 2.54mm Pitch 40 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings HDR STRAIGHT 40P Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 402.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, BOX, STRAIGHT, 40WAY 40way2rowverticalthroughholeheader Pin header DIN 41651 40P, 4-1634688-0, TE Connectivity |
| Category |
Business
| Tradename | AMP-LATCH | Product Category | Headers & Wire Housings |
| Standard Package | Trays | Factory Pack Quantity | 1500 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Approval Agency | :UL | Material Flammability Rating | UL 94 V-0 |
Electrical
| Range deg/s | :TE - AMP-LATCH Series | Dielectric Strength | :500V |
| Current Rating (Max) | 1A | Insulation Resistance | 5000 MOhms |
Mechanical
| Color | Black | Depth | 9 mm |
| Pitch | 2.54 mm | Height | 8.95 mm |
| Weight | 0.0469 | Material | :Polyester |
| Packaging | Bulk | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Type | Male Pin |
| Lead Spacing | :2.54mm | Housing Color | Black |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Gold Over Nickel | Mounting Style | Through Hole |
| Number of Rows | 2 | Contact Material | Brass |
| Housing Material | Thermoplastic | Length - Overall | 58.45 mm |
| Primary Material | PCB | 1st Contact Gender | Pin (Male) |
| Color - Connectors | :Black | Number of Contacts | 40 |
| Contact Termination | :Through Hole Vertical | Number of Positions | 40 |
| Contact Length - Mating | 0.228" (5.80mm) | Termination Post Length | 3.02 mm |
| Contact Finish Thickness | 10µin (0.25µm) | 1st Connector Mounting Type | :Straight |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | 4-1634688 | Manufacturer | 4-1634688Series |
| Product Type | Headers | Number of Positions Loaded | All |
Environmental
| Operating Temperature | - 40 C to + 105 C | ||
Similar Parts
1658623-9
te connectivity / amp
Conn IDC Connector RCP 40 POS 2.54mm IDT RA Cable Mount Tube Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 40POS GOLD AMP-LATCHNOVOReceptacleforRibbonCable Headers & Wire Housings .1CL IDC REC 2X20P MIL 30AU Conn IDC Connector RCP 40 POS 2.54mm IDT RA Cable Mount Tube Product Highlights:Connector Type = NOVONumber of Positions = 40ReceptacleMating Polarization Method = MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 40POS, 2.54MM AMP-LATCHNOVOReceptacleforRibbonCable,40position,.100X.100Centerline Amp-Latch 40 Position NOVO Ribbon Cable IDC Socket 40 NOVO MIL 30DP, LEAD FREE
1658624-9
te connectivity / amp
Conn IDC Connector F 40 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 40POS POLAR GOLD Headers & Wire Housings 40 NOVO DUAL 30DP, LEAD FREE Ribbon Cable Connectors (AMP-LATCH) Product Highlights:Connector Type = NOVONumber of Positions = 40ReceptacleMating Polarization Type = Dual Polarizing BarWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board 40 NOVO DUAL 30DP, LEAD FREE
1658622-9
te connectivity / amp
Conn IDC Connector RCP 40 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 40POS W/POL GOLD AMP-LATCH Novo IDC Receptacle 40P Headers & Wire Housings .1CL IDC REC 2X20P C&M 30AU Conn IDC Connector RCP 40 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 40ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 40POS, 2.54MM ReceptacleswithRecessedCovers,Center&MilitaryPolarized,40pos. AMP LATCH 40 Position 2.54 mm Pitch NOVO Cable to Board IDC Receptacle TE Connectivity AMP-LATCH Novo 系列 2行 40路 2.54mm节距 母 IDC 连接器 , 电缆安装 40 NOVO MIL/CTR 30DP,LEAD FREE

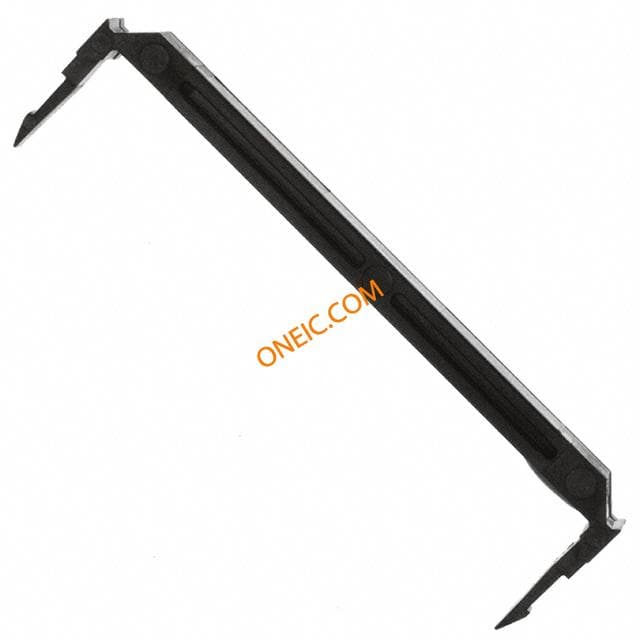

499252-1
