1375820-9
| Manufacturer | |
| Description | Conn Housing RCP 9 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT HSNG 9POS CST-100 II 9w housing CST-100 II Headers & Wire Housings 9P CST-100II HOUSING Conn Housing RCP 9 POS 2.54mm Crimp ST Product Highlights:CST-100 II HousingsNumber of Positions = 9Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CST-100IIHOUSING9POS TE Connectivity CST-100 II 系列 2.54mm 节距 9 路 直 母 PCB 壳体 CST-100 II HOUSING 9 POS |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Leadfree Defin | Not relevant for lead free process | UL File Number | E28476 |
| Approval Agency | CSA,UL | CSA File Number | LR 7189 |
| Standard Number | CSA, UL | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Approval Agency Marking | 已认证 | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage - Supply | 250 VAC | Connector Impedance | 压接 |
| Current Rating (Max) | 4/Contact A | Voltage - Supply (Min) | 250VAC |
Mechanical
| Color | White | Depth | 12.95mm |
| Pitch | 2.54 mm | Width | 6.6mm |
| Height | 6.6 mm | Length | 23.37mm |
| Lock Type | 不带 | Packaging | Bulk |
| Shrouding | No | Body Color | 自然 |
| Cable Exit | 180° | Wire Gauge | 22-28 AWG |
| Orientation | 直 | Contact Type | Female Socket |
| 2nd Connector | With | Housing Color | White |
| Mounting Type | Straight | Angle of Throw | Straight |
| Connector Type | Crimp | Contact Finish | 2.54 [0.100] |
| Fastening Type | Locking Ramp | Mounting Style | Wire |
| Number of Rows | 1 | Connector Usage | Receptacle |
| Housing Material | Polymer | Length - Overall | 23.37 mm |
| Mounting Feature | Without | Package Quantity | 1 |
| Panel Mount Type | Without | Primary Material | InterconnectSystem |
| Pin Hole Diameter | 0.1" | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Mating Orientation | With |
| Number of Contacts | 9 | Termination Finish | 不带 |
| Contact Termination | Crimp | Number of Positions | 9 |
| Compatible Shell Size | 配合指定的 MTA .100 接头、类似竞争性带缺口接头和 CST .100 带罩接头 | Mounting Hole Diameter | 带有 |
| Contact Layout, Typical | 同轴 | Static Discharge Shielding | 不带 |
Product Info
| Note | Not interchangeable with CST-100 contacts and housings.; Mates with all MTA-100 | Type | Housing |
| Gender | RCP | Series | CST-100 |
| Sealable | 否 | CAD Drawing | 3D CAD Model |
| Manufacturer | AMP | Product Type | CST-100 II Housings |
| Application Specifics | Wire-to-Board | For Use With/Related Products | Centerline Economy Power Connector |
Environmental
| Temperature - Test | 标准部件 - 非辉光导线 | Operating Temperature | -55C to 105C |
Similar Parts

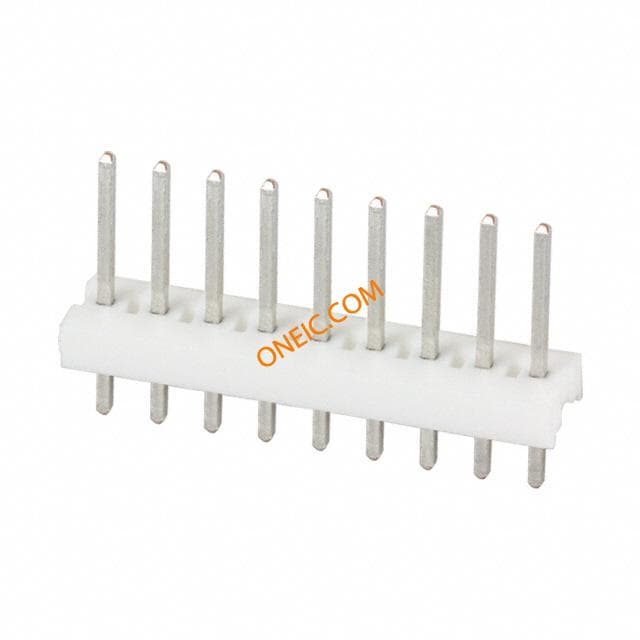

640452-9
te connectivity / amp
Conn Unshrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 9POS .100 TIN Headers & Wire Housings FLAT HEADER 9P Straight Post tin Conn Unshrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole Product Highlights:Header9 PositionsConnector Style = PlugContact Type = PinMTA-100 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER, 9WAY, 0.1IN 09P MTA100 HDR ASSY SQ STR
3-644695-9
te connectivity / amp
Conn Unshrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 9POS .100 TIN Headers & Wire Housings NARROW FLT HDR 9P Strt Post w/ret. leg Conn Unshrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 09P MTA100 STR HDR RETENTIVE

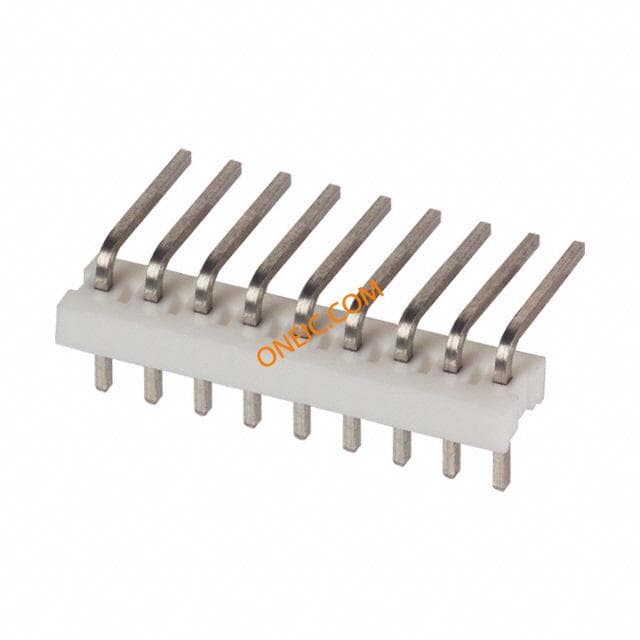

640453-9
te connectivity / amp
Conn Unshrouded Header HDR 9 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 9POS .100 TIN Headers & Wire Housings FLAT HEADER 9P Right Angle Post tin 640453-9 Conn Unshrouded Header HDR 9 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 9Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 9WR/AHEADER 09P MTA100 HDR ASSY SQ R/A

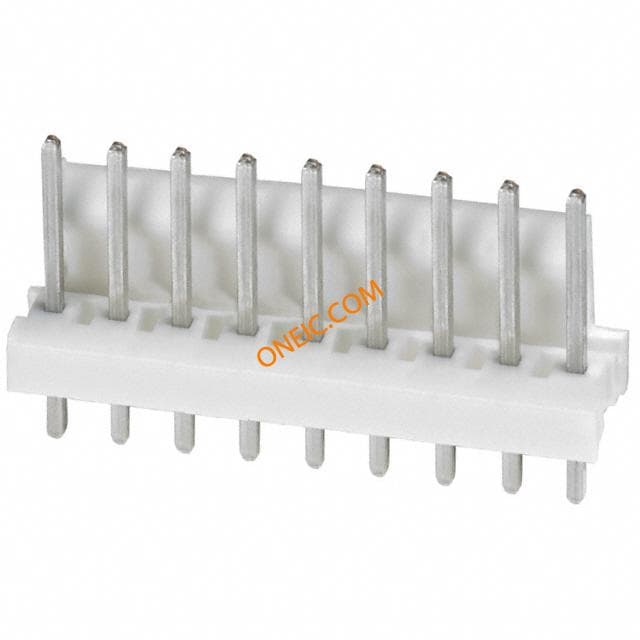

640456-9
