3-641216-9
| Manufacturer | |
| Description | Conn Wire to Board HDR 9 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A 9POS .100 30AU Headers & Wire Housings 09P MTA100 HDR ASSY FL/RA LF Conn Wire to Board HDR 9 POS 2.54mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 09P MTA100 HDR ASSY FL/RA LF |
| Category |
Business
| Other Names | A30801 | Product Category | Headers & Wire Housings |
| Standard Package | Trays | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | UL File Number | E28476 |
| CSA File Number | LR7189 | Standard Number | CSA, UL |
| CSA Classification | 已认证 | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 250 V | Switch Function | Friction Lock |
| Voltage - Supply | 250 | Contact Resistance | 6 mohm |
| Voltage - Rated AC | 250 | Connector Impedance | 焊接 |
| Current Rating (Max) | 5 A | Voltage - Supply (Min) | 250VAC |
Mechanical
| Color | Natural | Depth | 11.05 mm |
| Pitch | 2.54 mm | Height | 5.72 mm |
| Length | 22.86 mm [ .9 in ] | Packaging | Bulk |
| Shrouding | No | Body Color | 自然 |
| Lead Style | 正方形 | Termination | Solder |
| Contact Type | Male Pin | 2nd Connector | With |
| Contact Shape | Square | Housing Color | White |
| Mounting Type | Right Angle | Connector Type | Header, Unshrouded |
| Contact Finish | Gold Over Nickel | Contact Timing | Without |
| Fastening Type | Friction Lock | Mounting Style | Through Hole |
| Number of Rows | 1 | Shell Material | 摩擦锁 |
| Connector Usage | Header | Insert Material | 铜合金 |
| Locking Feature | Friction Lock | Contact Material | Copper Alloy |
| Housing Material | Polyester | Length - Overall | 22.86 mm |
| Mounting Feature | Without | Package Quantity | 1 |
| Panel Mount Type | Without | Size / Dimension | 0.64 [.025] |
| Termination Style | Through Hole | 1st Contact Gender | Pin (Male) |
| Mating Orientation | Without | Number of Contacts | 9 |
| Termination Finish | 不带 | Number of Positions | 9 |
| Actuator Orientation | 前部 | Backshell Interrupts | Without |
| Bushing, Grommet Type | 不带 | Compatible Shell Size | MTA .100 连接器组件 |
| Contact Length - Post | 3.56 mm [ .14 in ] | Mounting Hole Diameter | 不带 |
| Contact Finish - Mating | 锡 | Contact Layout, Typical | 同轴 |
| Contact Length - Mating | 0.295" (7.49mm) | Contact Material - Post | Copper Alloy |
| Termination Post Length | 3.56 [0.140] | Contact Finish Thickness | 30µin (0.76µm) |
| Small Diameter Recovered | No | Static Discharge Shielding | 不带 |
| Jacket (Insulation) Thickness | 1.27 µm, 50 µin | ||
Product Info
| Type | Wire to Board | Gender | HDR |
| Series | MTA-100 | Sealable | 否 |
| Manufacturer | AMP | Product Type | MTA-100 Connectors |
| Connection Type | Printed Circuit Board | Application Specifics | Wire-to-Board |
| Number of Positions Loaded | All | Number of Positions Omitted | None |
Environmental
| Operating Temperature | -55C to 105C | Thermal Resistance of Package | 1.6 mm [ .063 in ] |
Similar Parts
3-644043-9
te connectivity / amp
Conn IDC Connector RCP 9 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 9POS 26AWG .100 BLUE Headers & Wire Housings 09P MTA100 CONN ASSY LF 09P MTA100 CONN ASSY LF 09P MTA100 CONN ASSY LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
3-644702-9
te connectivity / amp
Conn IDC Connector F 9 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 9POS 22AWG .100 RED Headers & Wire Housings 09P MTA100 CONN ASSY F/T LF 09P MTA100 CONN ASSY F/T LF 09P MTA100 CONN ASSY F/T LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
3-643816-9
te connectivity / amp
Conn IDC Connector F 9 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 9POS 28AWG MTA100 Headers & Wire Housings 09P MTA100 CONN ASSY POL RIB 09P MTA100 CONN ASSY POL RIB 09P MTA100 CONN ASSY POL RIB Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
3-640469-9
te connectivity / amp
Conn IDC Connector F 9 POS 2.54mm IDT RA Cable Mount T/R MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 9POS 24AWG .100 WHITE Headers & Wire Housings 09P MTA100 CONN ASSY ON TAPE 09P MTA100 CONN ASSY ON TAPE
3-641314-9
te connectivity / amp
Conn IDC Connector F 9 POS 2.54mm IDT RA Cable Mount T/R MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 9POS 28AWG .100 GREEN
3-644313-9
te connectivity / amp
Conn IDC Connector F 9 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 9POS 26AWG MTA-100 Headers & Wire Housings 09P MTA100 CONN ASSY BLK LF 09P MTA100 CONN ASSY BLK LF
3-641198-9
te connectivity / amp
Conn IDC Connector F 9 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 9POS 22AWG .100 RED Headers & Wire Housings 09P MTA100 CONN ASSY RED LF 09P MTA100 CONN ASSY RED LF

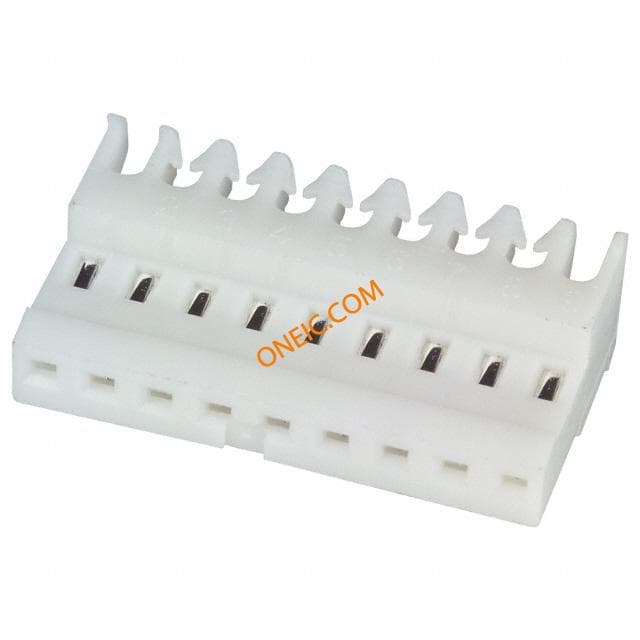

3-640621-9
