644874-9
| Manufacturer | |
| Description | Conn Wire to Board HDR 9 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 9POS VERT .100 TIN Headers & Wire Housings 09P MTA100 HDR ASSY SPCL BEND 09P MTA100 HDR ASSY,SPCL BEND 09P MTA100 HDR ASSY,SPCL BEND Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP |
| Category |
Business
| Standard Pack | 1 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | UL File Number | E28476 |
| CSA File Number | LR7189 | Standard Number | CSA, UL |
| CSA Certification | Certified | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 250 V | Switch Function | Friction Lock |
| Voltage - Supply | 250 | Voltage - Rated AC | 250 |
| Connector Impedance | 焊接 | Current Rating (Max) | 5 |
Mechanical
| Color | Natural | Pitch | 2.54 mm |
| Height | 10.03 mm [ .395 in ] | Length | 22.86 mm [ .9 in ] |
| Packaging | Bulk | Shrouding | No |
| Body Color | 自然 | Termination | Solder |
| Contact Type | Male Pin | 2nd Connector | With |
| Contact Shape | Square | Housing Color | Natural |
| Mounting Type | Vertical | Connector Type | Header, Unshrouded |
| Contact Finish | Tin | Contact Timing | Without |
| Fastening Type | Friction Lock | Mounting Style | 带有 |
| Number of Rows | 1 | Plating - Body | Tin |
| Rotation Angle | 34° | Shell Material | 摩擦锁 |
| Connector Usage | Header | Insert Material | 铜合金 |
| Locking Feature | Friction Lock | Contact Material | Copper Alloy |
| Housing Material | 聚酯 - GF | Mounting Feature | Without |
| Package Quantity | 1 | Panel Mount Type | Without |
| Termination Style | Through Hole | 1st Contact Gender | Pin (Male) |
| Mating Orientation | Without | Number of Contacts | 9 |
| Termination Finish | 不带 | Number of Positions | 9 |
| Backshell Interrupts | Without | Compatible Shell Size | MTA .100 连接器组件 |
| Contact Length - Post | 电源 | Mounting Hole Diameter | 不带 |
| Contact Finish - Mating | 锡 | Contact Layout, Typical | 2.54 [0.100] |
| Contact Length - Mating | 0.295" (7.49mm) | Termination Post Length | 7.49 mm [ .295 in ] |
| Contact Finish Thickness | 3.81 µm [ 150 µin ] | Small Diameter Recovered | No |
| Static Discharge Shielding | 不带 | Jacket (Insulation) Thickness | 1.27 µm, 50 µin |
Product Info
| Note | 配合 CST-100 连接器 | Type | Wire to Board |
| Gender | HDR | Series | MTA-100 |
| Sealable | 否 | Manufacturer | AMP |
| Product Type | MTA-100 Connectors | Connection Type | Printed Circuit Board |
| Application Specifics | Wire-to-Board | Number of Positions Loaded | All |
| Number of Positions Omitted | None | ||
Environmental
| Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] | Thermal Resistance of Package | 1.6 mm [ .063 in ] |
Documents & Media
Similar Parts
3-644043-9
te connectivity / amp
Conn IDC Connector RCP 9 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 9POS 26AWG .100 BLUE Headers & Wire Housings 09P MTA100 CONN ASSY LF 09P MTA100 CONN ASSY LF 09P MTA100 CONN ASSY LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
3-644702-9
te connectivity / amp
Conn IDC Connector F 9 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 9POS 22AWG .100 RED Headers & Wire Housings 09P MTA100 CONN ASSY F/T LF 09P MTA100 CONN ASSY F/T LF 09P MTA100 CONN ASSY F/T LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
3-643816-9
te connectivity / amp
Conn IDC Connector F 9 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 9POS 28AWG MTA100 Headers & Wire Housings 09P MTA100 CONN ASSY POL RIB 09P MTA100 CONN ASSY POL RIB 09P MTA100 CONN ASSY POL RIB Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
3-640469-9
te connectivity / amp
Conn IDC Connector F 9 POS 2.54mm IDT RA Cable Mount T/R MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 9POS 24AWG .100 WHITE Headers & Wire Housings 09P MTA100 CONN ASSY ON TAPE 09P MTA100 CONN ASSY ON TAPE
3-641314-9
te connectivity / amp
Conn IDC Connector F 9 POS 2.54mm IDT RA Cable Mount T/R MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 9POS 28AWG .100 GREEN
3-644313-9
te connectivity / amp
Conn IDC Connector F 9 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 9POS 26AWG MTA-100 Headers & Wire Housings 09P MTA100 CONN ASSY BLK LF 09P MTA100 CONN ASSY BLK LF
3-641198-9
te connectivity / amp
Conn IDC Connector F 9 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 9POS 22AWG .100 RED Headers & Wire Housings 09P MTA100 CONN ASSY RED LF 09P MTA100 CONN ASSY RED LF

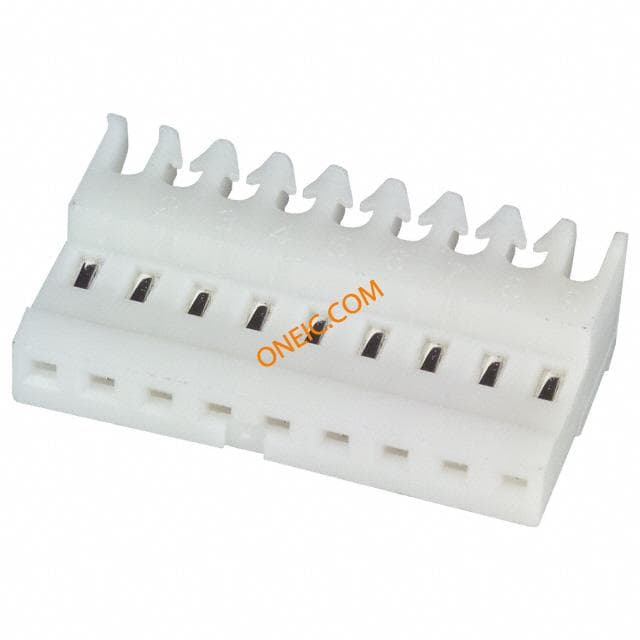

3-640621-9
