103311-2
| Manufacturer | |
| Description | Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 14POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 14 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings HDR R.A. DOUBLE 14P low profile Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, Headerhoriz14way2.54mmAmpLatch TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 014 LOPRO HDR RA 30DP |
| Category |
Business
| Tradename | AMP-LATCH | Product Category | Headers & Wire Housings |
| Standard Package | Rail / Tube | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS non-compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Resistance - Input | 5000 | Current Rating (Max) | 1A |
| Insulation Resistance | 5000 MOhms | Connector - Voltage Input | 浸焊 |
Mechanical
| Color | Black | Depth | 10.04 mm |
| Pitch | 2.54 mm | Height | 9.14 mm |
| Length | 25.4 mm [ 1 in ] | Base Type | 不带 |
| Lock Type | 不带 | Packaging | Bulk |
| Body Color | 黑色 | Lead Style | 正方形 |
| Orientation | 直角 | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Type | Male Pin |
| Housing Color | Black | Mounting Type | Through Hole, Right Angle |
| Connector Type | Header, Shrouded | Contact Finish | Gold Over Palladium Nickel Over Nickel|Gold Over Nickel |
| Flange Feature | 是 | Mounting Style | Through Hole |
| Number of Rows | 2 | Shell Material | 4 面 |
| Actuation Force | 不带 | Insert Material | 铜合金 |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Length - Overall | 25.4 mm | Package Quantity | 100 |
| Panel Mount Type | 通孔 - 焊接 | Primary Material | Connector |
| Termination Rows | 焊接 | Termination Style | Through Hole |
| 1st Connector Type | 插针接头 | 1st Contact Gender | Pin (Male) |
| Diameter - Outside | .64 mm [ .025 in ] | Number of Contacts | 14 |
| Number of Positions | 14 | Contact Length - Post | 信号（数据） |
| Mounting Hole Diameter | 带有 | Contact Finish - Mating | 钯镍打底镀薄金 |
| Contact Length - Mating | 0.240" (6.10mm) | Termination Post Length | 3.43 mm |
| Contact Finish Thickness | 30µin (0.76µm) | Shell Size, Connector Layout | 3.81 mm [ .15 in ] |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | AMP LATCH | Coverage | 覆盖 |
| Polarity | 带有 | Manufacturer | AMP-LATCH |
| Product Type | Header Assemblies | DigiKey Programmable | 带有 |
| Number of Positions Loaded | All | ||
Environmental
| Temperature - Test | 标准 | Operating Temperature | - 65 C to + 105 C |
Documents & Media
Similar Parts
104483-9
te connectivity / amp
Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 14POS .100 POL DUAL Headers & Wire Housings CONN HOUSING 14 POS POLARIZED Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount Product Highlights:ConnectorNot PreloadedHousing Gender = Connector - ReceptacleAccepts Contact Gender = Receptacle2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 14POS, 2.54MM 14 SHORT PT RCPT HSG DR .100CL
102387-2
te connectivity / amp
Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount Headers & Wire Housings CNTR PLRZD HG 14 DBL .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 14POS .100 POL DUAL 2.54mm,housing,14W,Mod IV,DR,snap in Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 14Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONNECTOR HOUSING, RECEPTACLE 14POS, 2.54MM Housing,Connector;ModIV;Dual;14;250VAC;3A;750VNo Crimp housing Pitch2.54 mm Poles 14 Double row / straight / with polarization AMPMODU MOD IV, 102387-2, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 14 路 直 母 电缆安装 PCB 壳体 14 MODIV HSG COMP DR .100 POL
487223-2
te connectivity / amp

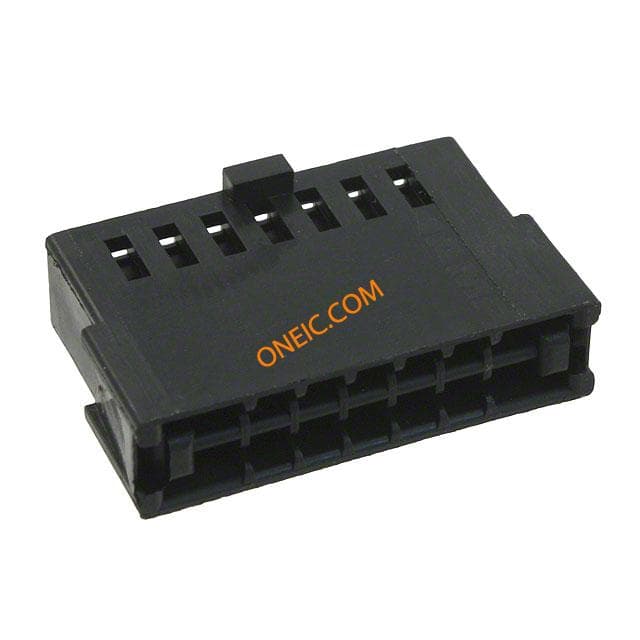

Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors 014 HOUSING FFC RCPT 100CL DR FFC & FPC Connectors FFC RECPT HSG 14P 487223-2 Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = StandardNumber of Positions = 14Number of Rows = DualSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector
