6-5535512-3

Manufacturer	TE Connectivity Ltd.
Description	Conn Socket Strip SKT 8 POS 2.54mm Solder RA Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 8POS .100 RT/A DUAL Headers & Wire Housings RECEPT 8POS .100 R/A DUAL Conn Socket Strip SKT 8 POS 2.54mm Solder RA Thru-Hole Gang of Tubes Product Highlights:ConnectorHousing Gender = Connector - ReceptacleContact Gender = ReceptacleMod II8 PositionsSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 08 MODII HORZ DR CE EESS .100
Category	Connector SolutionsBoard to Board ConnectorsBoard-to-Board Connectors

对参数有疑问？问 AI 助手

Business

Tradename	AMPMODU	Product Category	Headers & Wire Housings
Standard Package	Rail / Tube	Factory Pack Quantity	56

Compliance

RoHS	Lead free / RoHS Compliant	Standards	CSA LR7189, UL E28476
MIL-C-55032	No	Material Flammability Rating	UL 94V-0

Electrical

Contact Resistance	12 mohm	Resistance - Input	5000
Voltage - Rated AC	333	Connector Impedance	Closed Entry, Side
Current Rating (Max)	2 A	Resistance - Initial (Ri) (Min)	12

Mechanical

Color	Black	Depth	8.13 mm
Pitch	2.54 mm	Height	6.05 mm
Packaging	Tube	Body Color	黑色
Shaft Size	不带	Row Spacing	0.100" (2.54mm)
Termination	Solder	Contact Form	Female Socket
Contact Type	Female Socket	Lead Spacing	0.100" (2.54mm)
Housing Color	Black	Mounting Type	Through Hole, Right Angle
Connector Type	Receptacle	Contact Finish	Gold Over Nickel
Mounting Style	Through Hole	Number of Rows	2
Insert Material	磷青铜	Operating Force	High, Standard
Contact Material	Phosphor Bronze	Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT)
Length - Overall	10.16 mm	Package Quantity	56
Panel Mount Type	通孔 - 焊接	Pitch - Connector	.31
Termination Style	Through Hole	Number of Contacts	8
Number of Positions	8	Compatible Shell Size	公端
Contact Length - Post	2.92 mm [ .115 in ]	Contact Layout, Typical	Short Point
Surface Mount Land Size	Without	Termination Post Length	2.92 mm [ .115 in ]
Contact Finish Thickness	30µin (0.76µm)	Number of Positions/Bay/Row	All

Product Info

Note	TE 建议使用接合金或带双层电镀母端配件的双层电镀公端。, 停止使用最小为 6.50 [.256] 的正极插针，以防止行与行之间发生短路。	Type	Socket Strip
Gender	SKT	Series	AMPMODU MOD II
Sealable	否	Stackable	Yes
Product Type	Receptacles / Sockets - PCB	Output Configuration	Through Hole, Right Angle
Assembly Configuration	Board Standoff	Number of Positions Loaded	All

Environmental

Temperature Range	是	Operating Temperature	- 55 C to + 125 C
Thermal Resistance of Package	1.4 – 2.4 mm [ .055 – .094 in ]

Documents & Media

Online Document

6-5535512-3?RQPN=6-5535512-3

Similar Parts

104350-4

te connectivity / amp

Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 8POS DUAL 30AU Headers & Wire Housings 08 MODII HDR DRST B/A W/HD .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = StandardNumber of Rows = DualNumber of Positions = 8Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 08 MODII HDR DRST B/A W/HD

6-5535512-3

Business

Compliance

Electrical

Mechanical

Product Info

Environmental

Documents & Media

Similar Parts

104350-4

104354-4

104355-4

146134-3

104351-4

104353-4

4-103801-0-04

9-103330-0-04

4-103777-0-04

4-103328-0-04

9-146254-0-04

9-103795-0-04

9-146256-0-04

4-103186-0-04

4-103240-0-04

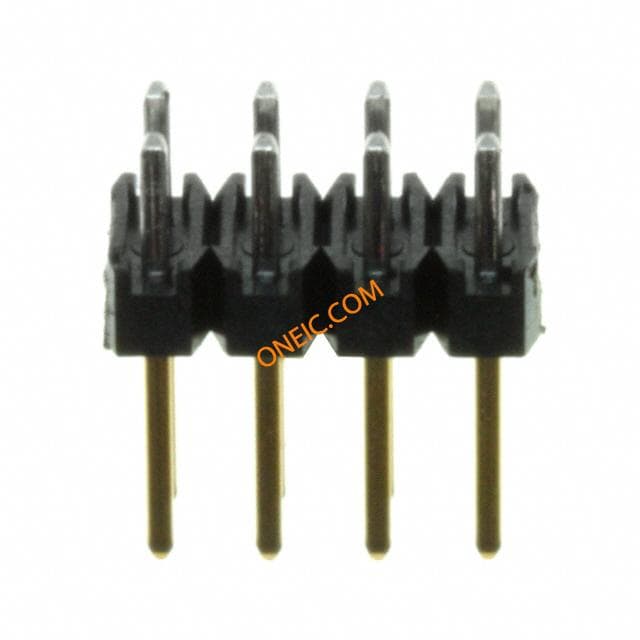

9-146257-0-04
