103673-4
| Manufacturer | |
| Description | Conn Shrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 5POS 15AU Headers & Wire Housings LATCHING HDR SHRD 5P with hold down Conn Shrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 5Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE AMPMODUMTER/AA/WHD,05MTEHDRSRRALATCHW/HLDWN 05 MTE HDR SRRA LATCH W/HLDWN |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Rail / Tube | Factory Pack Quantity | 35 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | Standard Number | CSA LR7189, UL E28476 |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Switch Function | Latched | Contact Resistance | 15 mohm |
| Connector Impedance | 刺破式压接 (IDC), 压接 | Current Rating (Max) | 3 A |
| Insulation Resistance | 5000 MOhms | Voltage - Protection Rating (VPR) | 600 V |
Mechanical
| Color | Black | Depth | 13.59 mm |
| Pitch | 2.54 mm | Height | 6.99 mm |
| Length | 15.24 mm [ .6 in ] | Packaging | Tube |
| Body Color | 黑色 | Lead Style | 正方形 |
| Row Spacing | 2.54 mm | Termination | Solder |
| Contact Type | Male Pin | Housing Color | Black |
| Mounting Type | Through Hole, Right Angle | Connector Type | Header, Shrouded |
| Contact Finish | Gold Over Nickel | Contact Timing | Without |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Insert Material | 黄铜 | Contact Material | Brass |
| Housing Material | Thermoplastic | Length - Overall | 15.24 mm |
| Mounting Feature | 压具 | Package Quantity | 35 |
| Panel Mount Type | 直角 | Primary Material | InterconnectSystem |
| Termination Style | Through Hole | 1st Connector Type | 带罩 |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 5 |
| Termination Finish | 带有 | Contact Tail Length | 2.54 µm [ 100 µin ] |
| Number of Positions | 5 | Compatible Shell Size | 母端护套组件 |
| Contact Length - Post | 3.3 mm [ .13 in ] | Mounting Hole Diameter | 带有 |
| Contact Finish - Mating | 锡铅 | Contact Length - Mating | 0.230" (5.84mm) |
| Termination Post Length | 5.84 mm [ .23 in ] | Contact Finish Thickness | 15µin (0.38µm) |
| Static Discharge Shielding | 不带 | ||
Product Info
| Note | 使用 91417-1 号键控工具来拆卸用于键控的柱体。 | Type | Shrouded Header |
| Gender | HDR | Series | AMPMODU MTE |
| Features | Board Lock | Manufacturer | AMPMODU/MTESeries |
| Pattern Type | 否 | Product Type | Headers |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | - 65 C to + 105 C | Thermal Resistance of Package | 1.57 mm [ .062 in ] |
Documents & Media
Similar Parts
104257-4
te connectivity / amp
Conn Housing RCP 5 POS 2.54mm Crimp ST .100 AMPMODU Headers, Housings & Contacts CONN RECPT 5POS .1" POL UNLOAD 5 way MTE Receptacle Housing Headers & Wire Housings RECEPTACLE ASSY 5P Conn Housing RCP 5 POS 2.54mm Crimp ST Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 5Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, RECEPTACLE, 5WAY ReceptacleAssembly;Thermoplastic;Receptacle;Single;0.100in.;MTE(IDC) Plug; wire-board; female; PIN:5; w/o terminals; 2.54mm; for cable TE Connectivity AMPMODU MTE 系列 1 行 2.54mm 节距 5 路 直 母 PCB 壳体 05 MTE RCPT HSG SR LATCH .100
103958-4
te connectivity / amp
Conn IDC Connector RCP 5 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 5POS .100 POLAR 30AU Headers & Wire Housings RECEPTACLE ASSY 5P Conn IDC Connector RCP 5 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 5Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 4X5 MTE RCPT SR LATCH .100CL
5-103956-4
te connectivity / amp
Conn IDC Connector RCP 5 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 5POS .100 POLAR TIN Headers & Wire Housings RECEPTACLE ASSY 5P Conn IDC Connector RCP 5 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 5Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE, 5POS, 2.54MM 4X5 MTE RCPT SR LATCH .100CL
103648-4
te connectivity / amp
Conn Housing RCP 5 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 5POS .100 UNLOADED Headers & Wire Housings 05 MTE RCPT HSG SR R Conn Housing RCP 5 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 5Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE AMPMODU05MTERCPTHSGSRRIB.100CL TE Connectivity AMPMODU MTE 系列 5路 2.54mm节距 母 IDC 连接器 , 电缆安装 05 MTE RCPT HSG SR RIB .100CL
487526-4
te connectivity / amp

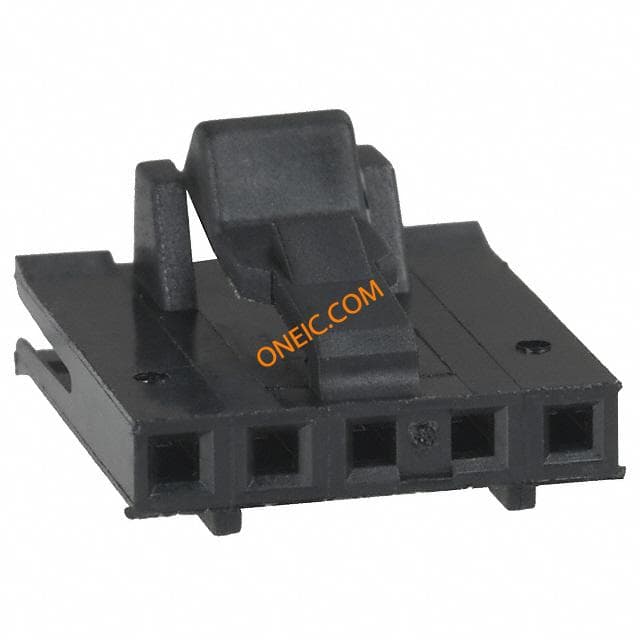

Conn Housing RCP 5 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors CONN RCPT 5POS.100 SLIM W/LATCH FFC .100,housing,rcp,2.54mm,5way FFC & FPC Connectors 100X100 REC 1X05P Conn Housing RCP 5 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = SlimlineNumber of Positions = 5Number of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector FFC/FPC CONNECTOR, PLUG, 5POS, 1ROW CONNECTOR,RECEPTACLEHOUSING,FLEXIBLEFILM,5POS,2.54MM,SLIMLINE,SINGLER TE Connectivity 2.54mm 节距 5 路 直 母 PCB 壳体 005 HOUSING FFC RCPT 100CL SR
103969-4
te connectivity / amp
Conn IDC Connector RCP 5 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 5POS .100 22-26 15AU Headers & Wire Housings 4X5 MTE RCPT SR RIBBED .100CL Conn IDC Connector RCP 5 POS 2.54mm IDT ST Cable Mount Strip Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 4X5 MTE RCPT SR RIBBED .100CL
103960-4
te connectivity / amp
Conn IDC Connector RCP 5 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 5POS .100 26-30 15GOLD Headers & Wire Housings IDC LATCHED RECPT 5P 924 4X5 MTE RCPT SR LATCH .100CL
5-103957-4
te connectivity / amp
Conn IDC Connector RCP 5 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 5POS .100 POLAR 15AU Headers & Wire Housings RECEPTACLE ASSY 5P Conn IDC Connector RCP 5 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 5Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE, 5POS, 2.54MM MTERECPASSY,4X5MTERCPTSRLATCH.100CL 4X5 MTE RCPT SR LATCH .100CL
5-103961-4
te connectivity / amp
Conn IDC Connector RCP 5 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 5POS .100 30-26AWG Conn IDC Connector RCP 5 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingHousing Type = Housing - ReceptacleHousing Accepts Contact Type = Receptacle2.54 mm CenterlineRow-to-Row Spacing = 2.54 mmSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 4X5 MTE RCPT SR LATCH .100CL
103957-4
te connectivity / amp
Conn IDC Connector RCP 5 POS 2.54mm IDT ST Cable Mount Strip Headers & Wire Housings RECEPTACLE ASSY 5P .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 5POS .100 POLAR 15AU Conn IDC Connector RCP 5 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 5Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE MTERECPASSY,4X5MTERCPTSRLATCH.100CL 4X5 MTE RCPT SR LATCH .100CL
5-103958-4
te connectivity / amp
Conn IDC Connector RCP 5 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 5POS .100 POLAR 30AU Headers & Wire Housings RECEPTACLE ASSY 5P Conn IDC Connector RCP 5 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 5Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE, 5POS, 2.54MM TE Connectivity AMPMODU MTE 系列 1 行 2.54mm 节距 5 路 直 母 电缆安装 PCB 连接器外壳 4X5 MTE RCPT SR LATCH .100CL
103961-4
te connectivity / amp
Conn IDC Connector RCP 5 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 5POS .100 26-30 30GOLD Headers & Wire Housings IDC SNGL RECPT 5P 924 4X5 MTE RCPT SR LATCH .100CL
5-103960-4
te connectivity / amp
Conn IDC Connector RCP 5 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 5POS .100 26-30 15GOLD Headers & Wire Housings HSG&REC 1X05C P/L 30-26AWG Conn IDC Connector RCP 5 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 5Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, RECEPTACLE, 2.54MM, 5WAY 4X5 MTE RCPT SR LATCH .100CL
487769-3
te connectivity / amp
Conn Housing RCP 5 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors 005 HOUSING FFC RCPT 100CL SR FFC & FPC Connectors 005 HOUSING FFC RCPT Conn Housing RCP 5 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = Slimline5 PositionsNumber of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector
103968-4
te connectivity / amp
Conn IDC Connector RCP 5 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 5POS .100 POLAR TIN Headers & Wire Housings 4X5 MTE RCPT SR RIBBED .100CL 4X5 MTE RCPT SR RIBBED .100CL 4X5 MTE RCPT SR RIBBED .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
5-103959-4
te connectivity / amp
Conn IDC Connector RCP 5 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN HOUSING PRELOADED 5POS MTE housing 2.5mm receptacle,5way Headers & Wire Housings 4X5 MTE RCPT SR LATCH .100CL Conn IDC Connector RCP 5 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingHousing Type = Housing - ReceptacleHousing Accepts Contact Type = Receptacle2.54 mm CenterlineRow-to-Row Spacing = 2.54 mmSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE MTEhousing2.5mmreceptacle,5way TE Connectivity AMPMODU MTE 系列 5路 2.54mm节距 母 IDC 连接器 , 电缆安装 4X5 MTE RCPT SR LATCH .100CL
103959-4
te connectivity / amp
Conn IDC Connector RCP 5 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 5POS .100 26-30 TIN Headers & Wire Housings 4X5 MTE RCPT SR LATCH .100CL Conn IDC Connector RCP 5 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 5Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 4X5 MTE RCPT SR LATCH .100CL
103956-4
te connectivity / amp
Conn IDC Connector RCP 5 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 5POS .100 POLAR TIN Conn IDC Connector RCP 5 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 5Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Receptacle,AMPMODU,5Position,Preloaded 4X5 MTE RCPT SR LATCH .100CL
487378-4
te connectivity / amp

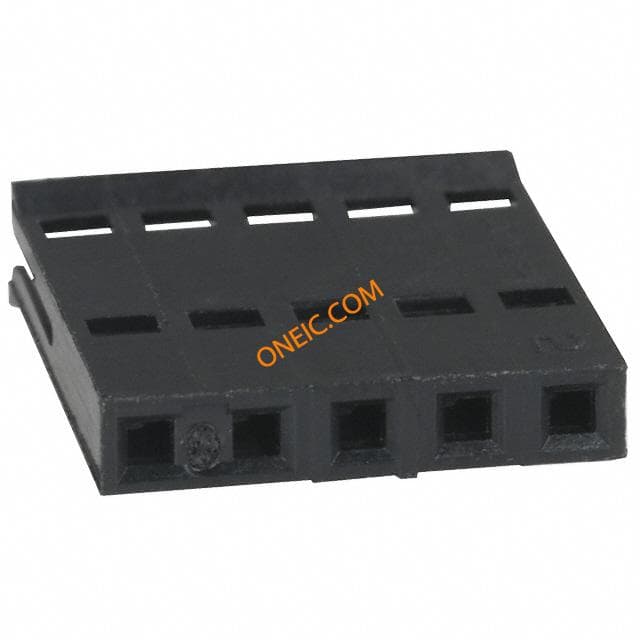

Conn Housing RCP 5 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors CONN RECEPT 5POS .100 SLIMLINE FFC & FPC Connectors HOUSING 5 POS SLIMLINE Conn Housing RCP 5 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = Slimline5 PositionsNumber of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector 005 HOUSING FFC RCPT 100CL SR
