487769-3
| Manufacturer | |
| Description | Conn Housing RCP 5 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors 005 HOUSING FFC RCPT 100CL SR FFC & FPC Connectors 005 HOUSING FFC RCPT Conn Housing RCP 5 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = Slimline5 PositionsNumber of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector |
| Category |
Business
| Other Names | 4877693 | Product Category | FFC & FPC Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | Yes |
Electrical
| Voltage Rating | 300V | Voltage - Supply | 300 VAC |
| Resistance - Input | 5000 | Voltage - Clamping | 720 |
| Connector Impedance | 制动器窗口 | Current Rating (Max) | 2A |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Lock Type | 带有 | Packaging | Bulk |
| Body Color | 黑色 | Cable Type | FFC |
| 2nd Connector | With | Mounting Type | Straight |
| Connector Type | Slimline | Number of Rows | 1 |
| Connector Usage | Receptacle | Locking Feature | Detent |
| Housing Material | Thermoplastic | Length - Overall | 2.54 [0.100] |
| Mounting Feature | Without | Package Quantity | 1 |
| Panel Mount Type | Without | Termination Style | SMD |
| FFC, FCB Thickness | 0.05-0.13mm | Mating Orientation | Without |
| Number of Contacts | 5 | Number of Positions | 5 |
| Mounting Hole Diameter | 带有 | ||
Product Info
| Type | Housing | Gender | RCP |
| Features | Detent Lock | Product Type | Housing |
| Connection Type | FFC Cable | ||
Environmental
| Operating Temperature | -65°C ~ 105°C | ||
Documents & Media
Similar Parts

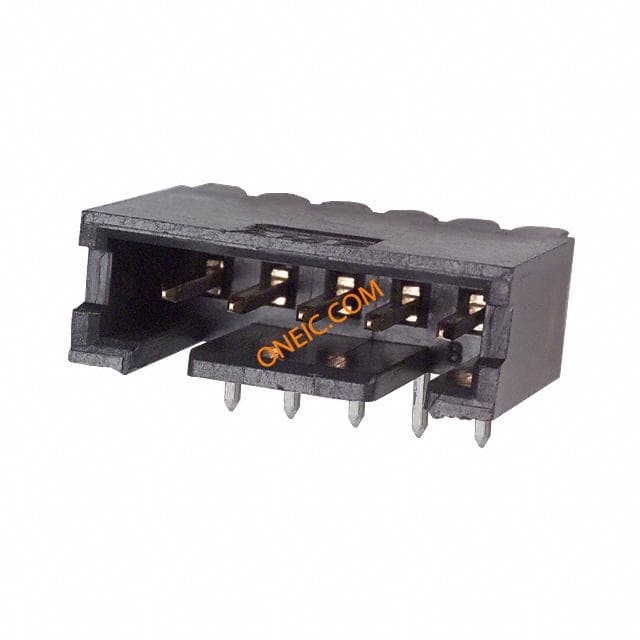

5-103361-3
