103653-4
| Manufacturer | |
| Description | Conn Housing PL 5 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN PLUG 5POS .1" POL UNLOAD 5 way MTE Pin Housing Headers & Wire Housings PIN ASSEMBLY 5P Conn Housing PL 5 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 5Housing Type = PinNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, PIN, 5WAY Housing;Thermoplastic;Pin;Single;0.1in.;UL94V-0;Black;5 TE Connectivity AMPMODU MTE 系列 1 行 2.54mm 节距 5 路 直 公 电缆安装 PCB 壳体 05 MTE SHRD PIN HSG SR LATCH |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | RoHSCompliant,ELVCompliant |
| Tariff No | 85369010 | Leadfree Defin | Not relevant for lead free process |
| Approval Agency | CSA,UL | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Range deg/s | :TE - AMPMODU MTE Series | Switch Function | Detent Latching |
| Current Rating (Max) | 3 A | ||
Mechanical
| Color | Black | Depth | 24.13mm |
| Pitch | 2.54 mm | Width | 6.6mm |
| Height | 6.6 mm | Length | 15.11mm |
| Weight | 0.001 | Packaging | Bulk |
| Wire Gauge | 22-30 AWG | Row Spacing | 2.54 mm |
| Shell Style | Pin | Termination | :Crimp |
| Contact Type | Male Pin | Lead Spacing | :2.54mm |
| Polarization | Latched | 2nd Connector | With |
| Housing Color | Black | Mounting Type | Straight |
| Angle of Throw | Straight | Connector Type | Crimp, Insulation Displacement Crimp (IDC) |
| Contact Finish | :- | Number of Rows | 1 |
| Package / Case | Pin | Locking Feature | Detent Latching |
| Contact Material | :- | Housing Material | Thermoplastic |
| Length - Overall | 15.11 mm | Primary Material | InterconnectSystem |
| Pin Hole Diameter | 0.1" | 1st Contact Gender | Pin (Male) |
| Mating Orientation | With | Number of Contacts | 5 |
| Contact Termination | Crimp | Number of Positions | 5 |
| Center Contact Material | 2.54 [.100] | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Series | MTE |
| Preloaded | No | CAD Drawing | 3D CAD Model |
| Coded, Keyed | No | Manufacturer | AMPMODU/MTESeries |
| Product Type | Housing | Matrix (Columns x Rows) | 0.1in. |
| For Use With/Related Products | Centerline Single-Row Connector | ||
Environmental
| Operating Temperature | -65C to 105C | ||
Documents & Media
Similar Parts
104505-6
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Contacts-AMPMODU Machine Applied CONN PIN 22-26AWG 30GOLD CRIMP Headers & Wire Housings MTE PIN 22-26AWG 104505-6 Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.12-0.40² [26-22] mm [AWG]Wire Insulation Diameter = .91 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU MTE PIN 22-26 AWG PLTD
104505-8
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Contacts-AMPMODU Machine Applied CONN PIN 26-22 AWG TIN Headers & Wire Housings PIN 26-22 AWG TIN 104505-8 Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.12-0.40² [26-22] mm [AWG]Wire Insulation Diameter = .91 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU MTE PIN 22-26 AWG PLTD
104257-4
te connectivity / amp
Conn Housing RCP 5 POS 2.54mm Crimp ST .100 AMPMODU Headers, Housings & Contacts CONN RECPT 5POS .1" POL UNLOAD 5 way MTE Receptacle Housing Headers & Wire Housings RECEPTACLE ASSY 5P Conn Housing RCP 5 POS 2.54mm Crimp ST Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 5Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, RECEPTACLE, 5WAY ReceptacleAssembly;Thermoplastic;Receptacle;Single;0.100in.;MTE(IDC) Plug; wire-board; female; PIN:5; w/o terminals; 2.54mm; for cable TE Connectivity AMPMODU MTE 系列 1 行 2.54mm 节距 5 路 直 母 PCB 壳体 05 MTE RCPT HSG SR LATCH .100
103648-4
te connectivity / amp
Conn Housing RCP 5 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 5POS .100 UNLOADED Headers & Wire Housings 05 MTE RCPT HSG SR R Conn Housing RCP 5 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 5Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE AMPMODU05MTERCPTHSGSRRIB.100CL TE Connectivity AMPMODU MTE 系列 5路 2.54mm节距 母 IDC 连接器 , 电缆安装 05 MTE RCPT HSG SR RIB .100CL
104505-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Contacts-AMPMODU Machine Applied CONN PIN 22-26AWG TIN CRIMP Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.12-0.40² [26-22] mm [AWG]Wire Insulation Diameter = .91 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU MTEPINCONTSTRIP,MTEPINLP AMPMODU 50 Tin Over Nickel 26-22 AWG Crimp Pin IDC Contact MTE PIN LP
5-103969-4
te connectivity / amp
Conn IDC Connector RCP 5 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts 4X5 MTE RCPT SR RIBBED .100CL Headers & Wire Housings 4X5 MTE RCPT SR RIBBED .100CL Conn IDC Connector RCP 5 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 5Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 4X5 MTE RCPT SR RIBBED .100CL
104505-5
te connectivity / amp

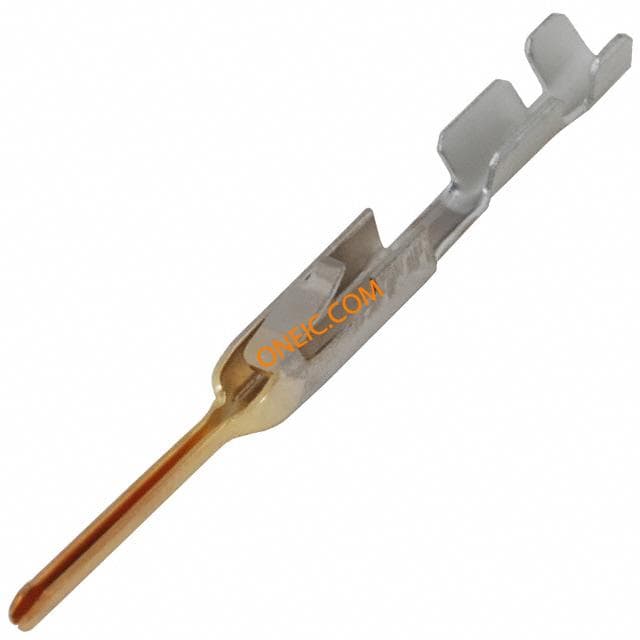

Contact PIN Crimp ST Cable Mount Loose Piece Contacts-AMPMODU Machine Applied CONN PIN 22-26AWG 15GOLD CRIMP Headers & Wire Housings PIN 26-22 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.12-0.40² [26-22] mm [AWG]Wire Insulation Diameter = .91 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU MTEPINCONTSTRIP,MTEPINLP MTE PIN LP
5-104506-5
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Contacts-AMPMODU Machine Applied CONN PIN 28-32AWG 15GOLD CRIMP Headers & Wire Housings PIN 32-28 AWG 5-104506-5 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.03-0.09² [32-28] mm [AWG]Wire Insulation Diameter = .64 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU Contact;Pin;MTE(IDC);PhosphorBronze;32-28AWG;300VAC;3A(Contact) MTE PIN LP
5-103968-4
te connectivity / amp
Conn IDC Connector RCP 5 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts 4X5 MTE RCPT SR RIBBED .100CL Headers & Wire Housings 4X5 MTE RCPT SR RIBBED .100CL 4X5 MTE RCPT SR RIBBED .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
104506-8
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Contacts-AMPMODU Machine Applied CONN PIN 32-28 AWG GOLD Headers & Wire Housings PIN 32-28 AWG GOLD Contacts-AMPMODU Machine Applied Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.03-0.09² [32-28] mm [AWG]Wire Insulation Diameter = .64 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU MTE PIN 28-32 AWG PLTD
5-103973-4
te connectivity / amp
4X5 MTE RCPT SR RIBBED .100CL Headers & Wire Housings 4X5 MTE RCPT SR RIBBED .100CL 4X5 MTE RCPT SR RIBBED .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
5-103971-4
te connectivity / amp
Conn IDC Connector RCP 5 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts 4X5 MTE RCPT SR RIBBED .100CL Headers & Wire Housings 4X5 MTE RCPT SR RIBBED .100CL 4X5 MTE RCPT SR RIBBED .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
5-104505-6
te connectivity / amp

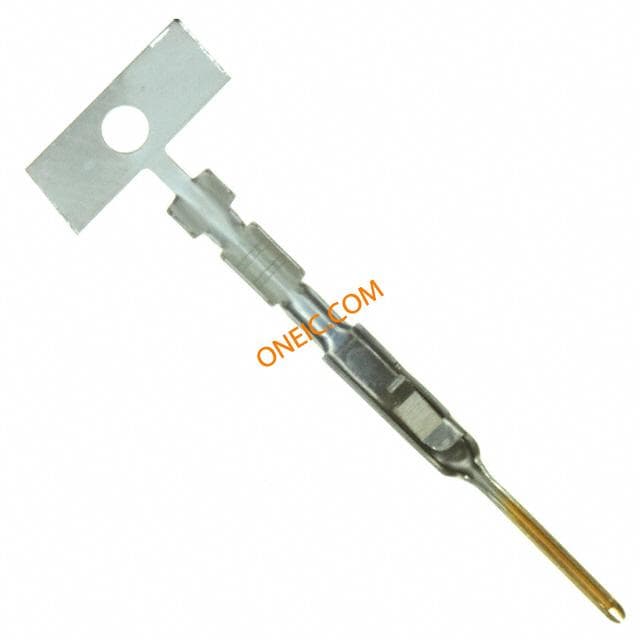

Contact PIN Crimp ST Cable Mount Strip Contacts-AMPMODU Machine Applied CONN PIN 22-26AWG 30GOLD CRIMP MTE Contact,pin,0.12-0.40mm² Headers & Wire Housings PIN 26-22 PHBZ/AU Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.12-0.40² [26-22] mm [AWG]Wire Insulation Diameter = .91 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU MTEPINCONTSTRIP,MTEPIN22-26AWGPLTD TE Connectivity AMPMODU MTE 系列 公 压接接线端子, 压接, 镀金镀镍触点 MTE PIN 22-26 AWG PLTD
5-104505-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Contacts-AMPMODU Machine Applied CONN PIN 22-26AWG TIN CRIMP Contact male crimp 26-22AWG AmpModu Headers & Wire Housings PIN 26-22 PHBZ/SN Conn Contact PIN 1 POS Crimp ST Cable Mount Strip Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.12-0.40² [26-22] mm [AWG]Wire Insulation Diameter = .91 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU CONTACT, SOCKET, 26-22AWG, CRIMP Contactmalecrimp26-22AWGAmpModu TE Connectivity AMPMODU MTE 系列 公 压接接线端子, 压接, 镀锡镀镍触点 MTE PIN 22-26 AWG PLTD
5-104505-3
te connectivity / amp

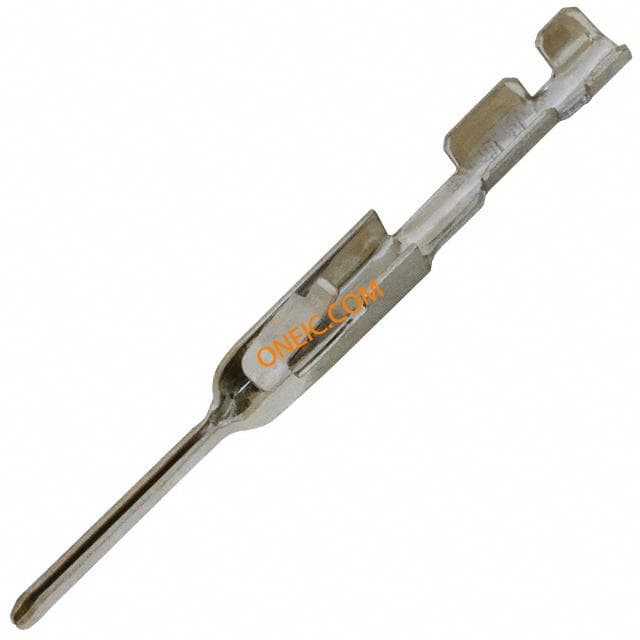

Contact PIN Crimp ST Cable Mount Loose Piece Contacts-AMPMODU Machine Applied CONN PIN 22-26AWG TIN CRIMP Contact male crimp 26-22AWG AmpModu Headers & Wire Housings PIN 26-22 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.12-0.40² [26-22] mm [AWG]Wire Insulation Diameter = .91 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU CONTACT, PIN, 26-22AWG, CRIMP AMPMODUPinContact,MTE(IDC)Series,26-22AWG TE Connectivity AMPMODU MTE 系列 公 压接接线端子, 压接, 镀金镀镍触点 MTE PIN LP
