5-103968-4
| Manufacturer | |
| Description | Conn IDC Connector RCP 5 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts 4X5 MTE RCPT SR RIBBED .100CL Headers & Wire Housings 4X5 MTE RCPT SR RIBBED .100CL 4X5 MTE RCPT SR RIBBED .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE |
| Category |
Business
| Tradename | AMPMODU | Standard Pack | 44 |
| Product Category | Headers & Wire Housings | Standard Package | 176 |
| Factory Pack Quantity | 44 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | CSA LR7189, UL E28476 |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage - Supply | 267 V | Resistance - Input | 5000 |
| Connector Impedance | 刺破式压接 (IDC), 压接 | Current Rating (Max) | 3 A |
| Voltage - Protection Rating (VPR) | 600 V | ||
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Height | 2.49 mm [ .098 in ] | Length | 50.55 mm [ 1.99 in ] |
| Packaging | Bulk | Wire Type | Discrete |
| Body Color | 黑色 | Wire Gauge | 22-26 AWG |
| Row Spacing | 2.54 mm | Termination | IDT |
| Contact Type | Female Socket | 2nd Connector | Without |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Contact Finish | Tin Over Nickel | Mounting Style | Wire |
| Number of Rows | 1 | Insert Material | 磷青铜 |
| Operating Force | Standard | Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic | Package Quantity | 44 |
| Panel Mount Type | 不带 | Cable Termination | IDC |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 5 | Insulation Diameter | 1.37 mm [ .054 in ] |
| Number of Positions | 5 | Compatible Shell Size | 与接头配合 |
| Mounting Hole Diameter | 带有 | Contact Layout, Typical | 同轴 |
| Contact Finish Thickness | 100µin (2.54µm) | Static Discharge Shielding | 带有 |
Product Info
| Note | 带状电缆带缺口把手 22-28 AWG, 气动终结器的最大绝缘直径为 1.14 [0.045]。 | Type | IDC Connector |
| Gender | RCP | Series | AMPMODU MTE |
| Product Type | Headers | ||
Environmental
| Temperature - Test | 标准部件 - 非辉光导线 | Operating Temperature | - 65 C to + 105 C |
Documents & Media
Similar Parts
103653-4
te connectivity / amp
Conn Housing PL 5 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN PLUG 5POS .1" POL UNLOAD 5 way MTE Pin Housing Headers & Wire Housings PIN ASSEMBLY 5P Conn Housing PL 5 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 5Housing Type = PinNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, PIN, 5WAY Housing;Thermoplastic;Pin;Single;0.1in.;UL94V-0;Black;5 TE Connectivity AMPMODU MTE 系列 1 行 2.54mm 节距 5 路 直 公 电缆安装 PCB 壳体 05 MTE SHRD PIN HSG SR LATCH
5-103904-4
te connectivity / amp
Conn Shrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 5POS 30AU Header horizontal 5 way pin AmpModu Conn Shrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 5Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Headerhorizontal5waypinAmpModu TE Connectivity AMPMODU MTE 系列 2.54mm节距 5路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔 5 MTE HDR SRRA LATCH W/HLDWN
5-103944-4
te connectivity / amp
Conn IDC Connector RCP 5 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN PLUG 5POS .100 POLAR TIN Headers & Wire Housings PIN ASSEMBLY 5P Conn IDC Connector RCP 5 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 5Housing Type = PinContact Type = PinSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 4X5 MTE SHRD PIN SR POL .100CL
5-147324-4
te connectivity / amp
Conn Shrouded Header HDR 5 POS 2.54mm Solder RA SMD T/R .100 AMPMODU Headers, Housings & Contacts CONN HEADER 5POS R/A TIN SMD Headers & Wire Housings 05 MTE HDR SRRA SMT.100CL .100 AMPMODU Headers, Housings & Contacts Product Highlights:HeaderNumber of Positions = 5Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 05 MTE HDR SRRA SMT.100CL
5-147323-4
te connectivity / amp
Conn Shrouded Header HDR 5 POS 2.54mm Solder RA SMD T/R .100 AMPMODU Headers, Housings & Contacts CONN HEADER 5POS SL R/A SMD GOLD Headers & Wire Housings 05 MTE HDR SRRA SMT.100CL .100 AMPMODU Headers, Housings & Contacts Product Highlights:HeaderNumber of Positions = 5Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 05 MTE HDR SRRA SMT.100CL

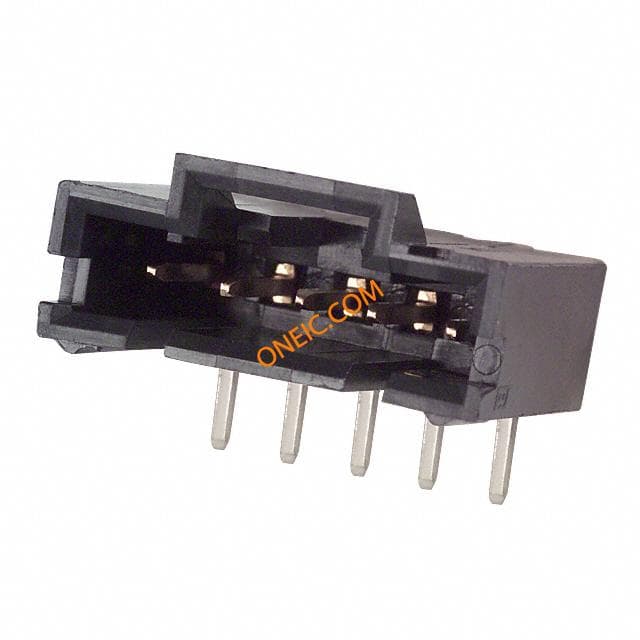

5-104935-6
