1-1586037-2
| Manufacturer | |
| Description | Conn Power HDR 12 POS 4.2mm Solder ST Thru-Hole 12 Terminal 1 Port Tray VAL-U-LOK Series Connector System CONN HEADER 12POS VERT W/O PEGS TE Connectivity PE Series 4.2mm Pitch 12 Way Straight Heavy Duty Power Connector, Solder Termination, 9A Pin & Socket Connectors VERT HDR NO PEGS 12P Conn Power HDR 12 POS 4.2mm Solder ST Thru-Hole 12 Terminal 1 Port Tray Product Highlights:Pin HeaderNumber of Circuits = 12UL 94V-2Number of Rows = DualVertical Mount AngleSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HEADER,VERTICAL,VAL-U-LOK,12POS,DUALROW,UL94V-2,W/OPEGS TE Connectivity VAL-U-LOK 系列 4.2mm节距 12路 直 RJ45-Rangierfeld, 焊接端接, 9A , 通孔 12P VERT HDR VAL-U-LOK V2 |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Trays |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | Leadfree Defin | Wave solder capable to 240°C |
| CSA File Number | 208567 | Standard Number | CSA, UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | UL Flammability Rating | UL 94V-2 |
| Approval Agency Marking | 否 | Material Flammability Rating | UL 94V-2 |
Electrical
| Voltage Rating | 600 V ac | Voltage - Supply | 600 |
| Frequency - Center | 带有 | Current Rating (Max) | 9A |
Mechanical
| Pitch | 4.2 mm | Width | 9.75 mm [ .384 in ] |
| Height | 12.8 mm [ .504 in ] | Length | 26.4 mm [ 1.0394 in ] |
| Sealed | Not Sealed | Packaging | Bulk |
| Orientation | 直 | Row Spacing | 0.165" (4.20mm) |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Tin | Fastening Type | Locking Ramp |
| Mounting Style | Through Hole | Number of Pins | 12 |
| Number of Rows | Dual | Package / Case | Plug |
| Contact Material | Brass | Housing Material | Nylon |
| Package Quantity | 255 | Panel Mount Type | 通孔 - 焊接 |
| Primary Material | InterconnectSystem | Termination Rows | 焊接 |
| Termination Style | Solder | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 12 | Insulation Diameter | 1.2 – 3.1 mm [ .047 – .122 in ] |
| Number of Positions | 12 | Mounting Hole Diameter | 带有 |
| Contact Finish - Mating | 锡 | Contact Layout, Typical | 直插式, 矩阵 |
| Termination Post Length | 3.5 mm [ .138 in ] | Contact Finish Thickness | 80 µm [ 2.03 µin ] |
Product Info
| Type | Power | Gender | HDR |
| Series | PE | Coverage | 覆盖 |
| Manufacturer | VAL-U-LOK | Product Type | Pin Header |
| Number of Circuits | 12 | Selectively Loaded | No |
| Application Specifics | Power | Number of Positions Loaded | All |
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -40 – 105 °C [ -40 – 221 °F ] |
| Thermal Resistance of Package | .063 mm [ 1.6 in ] | ||
Similar Parts

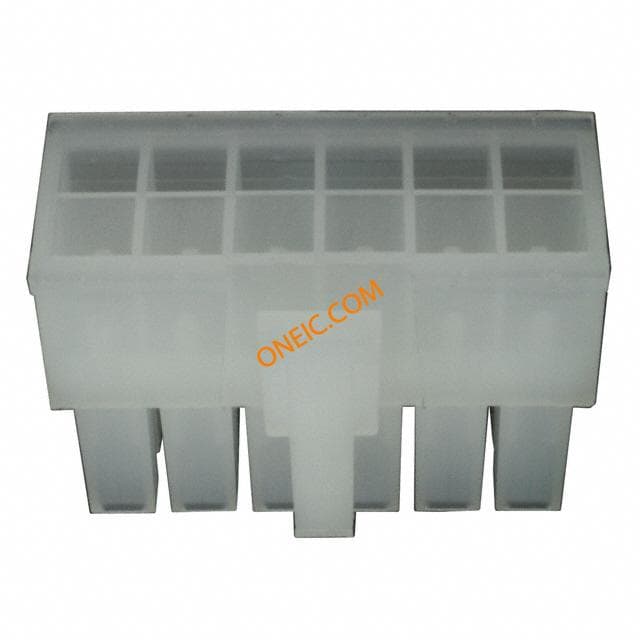

1-106527-2
