1-640456-2
| Manufacturer | |
| Description | Conn Wire to Board HDR 12 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 12POS .100 TIN TE Connectivity MTA-100 Series 2.54mm Pitch 12 Way 1 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings FRICTION LCK HDR 12P Straight Post tin Conn Wire to Board HDR 12 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 12Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, VERTICAL, 0.1", 12WAY Header,FrictionLock;MTA-100;12;250VAC;Polyester;Tin;CopperAlloy;Tin Pin header 12P, 1-640456-2, TE Connectivity TE Connectivity MTA-100 系列 2.54mm节距 12路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 12P MTA100 HDR ASSY F/L SQ STR |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 1000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Standards | RoHSCompliant,ELVCompliant,UL94V-0 | Tariff No | 85369010 |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | Approval Agency | CSA,UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Range deg/s | :TE - MTA-100 Series | Voltage Rating | 250 V ac |
| Switch Function | Friction Lock | Contact Resistance | 6 mohm |
| Voltage - Rated AC | 250 | Current Rating (Max) | 5A |
| Voltage - Input (Min) | 250VAC | Voltage - Supply (Min) | 250VAC |
Mechanical
| Color | Natural | Depth | 5.72 mm |
| Pitch | 2.54 mm | Height | 10.03 mm |
| Weight | 0.01 | Packaging | Bulk |
| Port Size | 0.025in. | Shrouding | No |
| Termination | Solder | Contact Type | Male Pin |
| Lead Spacing | :2.54mm | Length - Pin | 0.14" |
| Polarization | Polarizing Slot | 2nd Connector | With |
| Contact Shape | Square | Housing Color | White |
| Mounting Type | Through Hole | Angle of Throw | Straight |
| Connector Type | Header, Unshrouded | Contact Finish | Tin |
| Fastening Type | Friction Lock | Mounting Style | Through Hole |
| Number of Rows | 1 | Connector Usage | Header |
| Locking Feature | Friction Lock | Contact Material | Copper Alloy |
| Housing Material | Polyester | Length - Overall | 30.48 mm |
| Mounting Feature | Without | Package Quantity | 500 |
| Panel Mount Type | Without | Primary Material | InterconnectSystem |
| Size / Dimension | 0.64 [.025] | Pin Hole Diameter | 0.1" |
| Termination Style | Through Hole | 1st Contact Gender | Pin (Male) |
| Color - Connectors | :White | Mating Orientation | With |
| Number of Contacts | 12 | Contact Termination | :Through Hole Vertical |
| Number of Positions | 12 | Backshell Interrupts | Without |
| Center Contact Plating | 0.100in. | Length - Post (Mating) | 0.14in. |
| Mounting Hole Diameter | 0.04" | Contact Length - Mating | 0.295" (7.49mm) |
| Contact Material - Post | Copper Alloy | Termination Post Length | 3.56 [0.140] |
| Small Diameter Recovered | No | ||
Product Info
| Type | Wire to Board | Gender | HDR |
| Series | MTA-100 | CAD Drawing | 3D CAD Model |
| Manufacturer | AMP | Product Type | MTA-100 Connectors |
| Connection Type | Printed Circuit Board | Application Specifics | Wire-to-Board |
| Number of Positions Loaded | All | Number of Positions Omitted | None |
Environmental
| Operating Temperature | -55C to 105C | ||
Documents & Media
Similar Parts

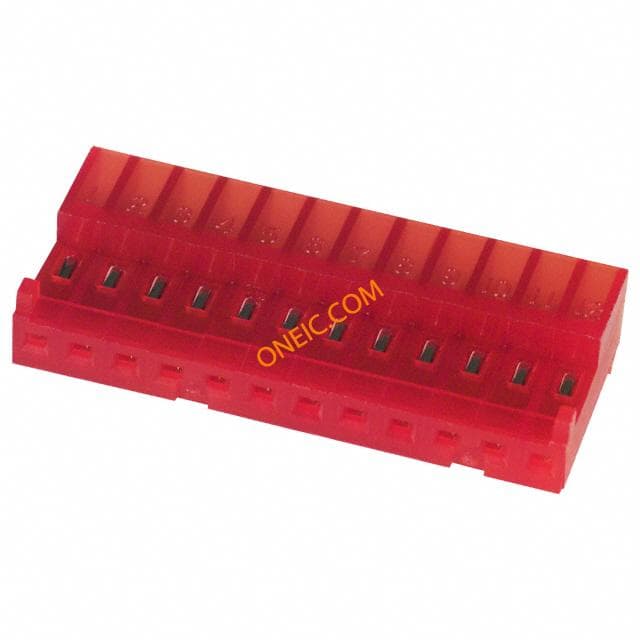

4-643813-2
te connectivity / amp
Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 12POS 22AWG MTA100 Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:Connector12 PositionsConnector Type = ReceptacleConnector Style = Closed EndMTA-100 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE 12POS, 2.54MM MTA-100CONNECTORTIN,12PMTA100CONNASSYPOLRIB 12P MTA100 CONN ASSY POL RIB
1-640620-2
te connectivity / amp
Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 12POS 22AWG MTA100 Headers & Wire Housings 12P MTA100 CONN ASSY F/T RED Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 12Mating Type = ReceptacleConnector Type = Feed ThruWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 12P MTA100 CONN ASSY F/T RED
1-641190-2
te connectivity / amp
Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 12POS .100 GOLD Headers & Wire Housings 12P HDR RED 22AWG
1-641237-2
te connectivity / amp
Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 12POS RED 22AWG MTA100 Headers & Wire Housings 12P MTA100 CONN ASSY RED 30AU
1-644574-2
te connectivity / amp
Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece CONN RCPT 12POS .100 TIN
1-641238-2
te connectivity / amp
Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 12POS 24AWG MTA-100 Headers & Wire Housings 12P MTA100 CONN ASSY NATL 30AU MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-100 ConnectorsNumber of Positions = 12Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
1-644038-2
te connectivity / amp
Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 12POS 22AWG MTA-100 Headers & Wire Housings 12P MTA100 CONN ASSY POL 15AU MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-100 ConnectorsNumber of Positions = 12Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 12P MTA100 CONN ASSY POL 15AU
1-643815-2
te connectivity / amp
Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece CONN RECEPT 12POS 26AWG MTA100 Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 12Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board Application
4-640623-2
te connectivity / amp
Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 12POS 28AWG MTA100 Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 12P MTA100 CONN ASSY GRN LF
4-643816-2
te connectivity / amp
Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 12POS 28AWG MTA100 Headers & Wire Housings 12P MTA100 CONN ASSY POL RIB Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:Connector12 PositionsConnector Type = ReceptacleConnector Style = Closed EndMTA-100 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 12P MTA100 CONN ASSY POL RIB
4-640443-2
te connectivity / amp
Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece Headers & Wire Housings REC 12P C/E 28AWG W/O TABS MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 12POS 28AWG MTA100 Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 12Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 12P MTA100 CONN ASSY GRN
1-644511-2
te connectivity / amp
Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount T/R MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 12POS .100 POLAR TIN 12P MTA100 CONN ASSY ON TAPE 12P MTA100 CONN ASSY ON TAPE Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
1-644020-2
te connectivity / amp
Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 12POS 24AWG MTA-100 12P MTA100 CONN ASSY 30AU 12P MTA100 CONN ASSY 30AU Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

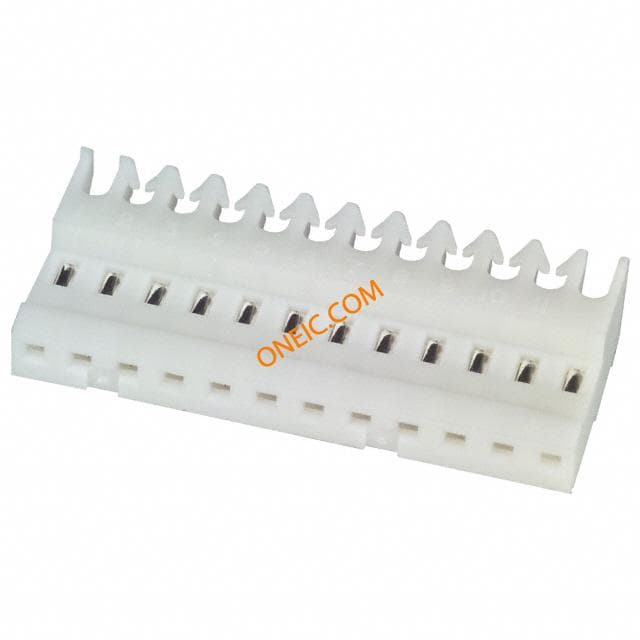

4-640621-2
te connectivity / amp
Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 12POS 24AWG MTA100 Headers & Wire Housings 12P MTA100 CONN ASSY F/T NATL 12P MTA100 CONN ASSY F/T NATL 12P MTA100 CONN ASSY F/T NATL Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
4-640622-2
te connectivity / amp
Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 12POS 26AWG MTA100 Headers & Wire Housings 12P ASSY F/T BLU Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 12P MTA100 CONN ASSY F/T BLU
1-644540-2
te connectivity / amp
Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 12POS 22AWG MTA100 Headers & Wire Housings 12P MTA100 CONN ASSY F/T POL 12P MTA100 CONN ASSY F/T POL 12P MTA100 CONN ASSY F/T POL Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
4-640441-2
te connectivity / amp
Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 12POS 24AWG MTA100 MTA 12 way cable SKT 2.54mm Headers & Wire Housings REC 12P C/E 24AWG W/O TABS Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 12Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HOUSING, 24AWG, 12WAY MTA-100Receptacle,12Position,ClosedEnd,IDC,24AWG,White TE Connectivity MTA-100 系列 12路 2.54mm节距 直角 电缆安装 母 IDC 连接器 12P MTA100 CONN ASSY WHT

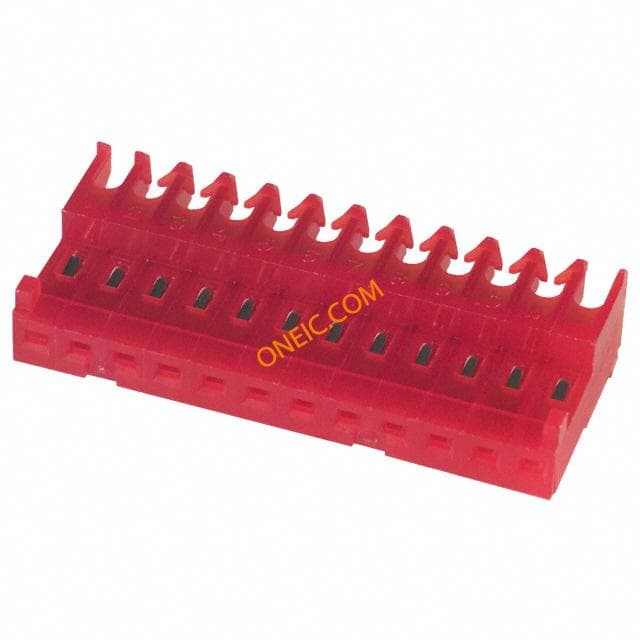

4-644540-2
