1-644540-2
| Manufacturer | |
| Description | Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 12POS 22AWG MTA100 Headers & Wire Housings 12P MTA100 CONN ASSY F/T POL 12P MTA100 CONN ASSY F/T POL 12P MTA100 CONN ASSY F/T POL Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP |
| Category |
Business
| Standard Pack | 500 | Standard Package | Bulk |
| Factory Pack Quantity | 500 | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | UL Rating | 获得认可 |
| Leadfree Defin | Not relevant for lead free process | UL File Number | E28476 |
| CSA File Number | LR7189 | Standard Number | CSA, UL |
| CSA Certification | Certified | RoHSELV Compliance | Not ELV/RoHS compliant |
| Material Flammability Rating | UL 94V-2 | ||
Electrical
| Voltage Rating | 250 VAC | Voltage - Supply | 250 |
| Voltage - Rated AC | 250 | Connector Impedance | IDC |
| Current Rating (Max) | 5 | ||
Mechanical
| Color | Red | Pitch | 2.54 mm |
| Height | 7.75 mm [ .305 in ] | Length | 30.48 mm [ 1.2 in ] |
| Packaging | Bulk | Shrouding | No |
| Wire Type | Discrete or Ribbon Cable | Body Color | 白色 |
| Cable Exit | 90° | Cable Type | 分离式导线, 绞线 |
| Wire Gauge | 22 AWG | Termination | IDT |
| Contact Type | Female Socket | Polarization | Polarizing Tab |
| 2nd Connector | With | Housing Color | Red |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Feed Thru |
| Contact Finish | Tin-Lead Over Nickel | Contact Timing | Without |
| Fastening Type | Locking Ramp | Mounting Style | Wire |
| Number of Rows | 1 | Shell Material | 标准 |
| Connector Usage | Receptacle | Insert Material | 铜合金 |
| Contact Material | Copper Alloy | Housing Material | Nylon |
| Mounting Feature | Without | Package Quantity | Loose Piece |
| Panel Mount Type | Without | Cable Termination | IDC |
| Termination Style | IDC | 1st Contact Gender | Socket (Female) |
| Mating Orientation | With | Number of Contacts | 12 |
| Termination Finish | 带有 | Contact Termination | Locking Lance |
| Insulation Diameter | 1.52 mm [ .06 in ] | Number of Positions | 12 |
| Compatible Shell Size | MTA .100 头 | Mounting Hole Diameter | 带有 |
| Contact Finish - Mating | 锡铅 | Contact Layout, Typical | 2.54 [0.100] |
| Contact Finish Thickness | 80µin (2.03µm) | Small Diameter Recovered | No |
| Wire Gauge or Range - mm2 | 0.3-0.4² [22] | Static Discharge Shielding | 带有 |
Product Info
| Note | 肋之间的条纹可能会减少 | Type | IDC Connector |
| Gender | F | Series | MTA-100 |
| Features | Feed Through, Polarizing Key | Sealable | 否 |
| Manufacturer | AMP | Product Type | MTA-100 Connectors |
| Connection Type | Wire | Number of Positions Omitted | None |
Environmental
| Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] | ||
Documents & Media
Similar Parts
1-640456-2
te connectivity / amp
Conn Wire to Board HDR 12 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 12POS .100 TIN TE Connectivity MTA-100 Series 2.54mm Pitch 12 Way 1 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings FRICTION LCK HDR 12P Straight Post tin Conn Wire to Board HDR 12 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 12Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, VERTICAL, 0.1", 12WAY Header,FrictionLock;MTA-100;12;250VAC;Polyester;Tin;CopperAlloy;Tin Pin header 12P, 1-640456-2, TE Connectivity TE Connectivity MTA-100 系列 2.54mm节距 12路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 12P MTA100 HDR ASSY F/L SQ STR
1-641216-2
te connectivity / amp
Conn Wire to Board HDR 12 POS 2.54mm Solder RA Thru-Hole CONN HEADER RT/A 12POS .100 30AU Conn Wire to Board HDR 12 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 12Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline Spacing
4-644456-2
te connectivity / amp
Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 12POS .100 TIN Headers & Wire Housings NARROW FLT HDR 12P Straight Post Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONN, HEADER, 12WAY, 0.1IN 12P MTA100 HDR ASSY (NARROW)
1-647166-2
te connectivity / amp
Conn Wire to Board HDR 12 POS 2.54mm Solder ST SMD MTA-100 CL Connectors CONN HEADER 12POS .100 STR TIN Headers & Wire Housings 12P MTA100 HDR ASSY SM,FL,SN MTA, CST-100 II, MT-6 and SL Connectors and Headers MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:12 PositionsPreloadedHousing Gender = Header - PinContact Gender = PinMTA-100 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 12P MTA100 HDR ASSY,SM,FL,SN
4-644457-2
te connectivity / amp
Conn Unshrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A 12POS .100 TIN Headers & Wire Housings 12P HDR ASSY R/A NARROW Conn Unshrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector12 PositionsConnector Type = Header - PinMTA-100 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 12P MTA100 HDR ASSY R/A NARROW
1-647116-2
te connectivity / amp
Conn Wire to Board HDR 12 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 12POS VERT .100 GOLD Headers & Wire Housings 12P MTA100 HDR HT FL STR 30AU 12P MTA100 HDR HT FL STR 30AU 12P MTA100 HDR HT FL STR 30AU Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
4-644695-2
te connectivity / amp
Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 12POS .100 TIN Headers & Wire Housings NARROW FLT HDR 12P Strt Post w/ret. leg 12P MTA100 STR HDR RETENTIVE 12P MTA100 STR HDR RETENTIVE Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
3-644486-2
te connectivity / amp
Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 12POS .100 TIN Headers & Wire Housings HDR 12P VRT SHROUD Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 12P MTA100 SHRDED HDR ASSY SN
1-647016-2
te connectivity / amp
Conn IDC Connector F 12 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 12POS .100 GOLD Headers & Wire Housings 12P MTA100 PSTD CONN ASSY 15AU MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-100 ConnectorsNumber of Positions = 12Mating Type = ReceptacleConnector Type = Closed EndWire-to-Wire ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 12P MTA100 PSTD CONN ASSY 15AU

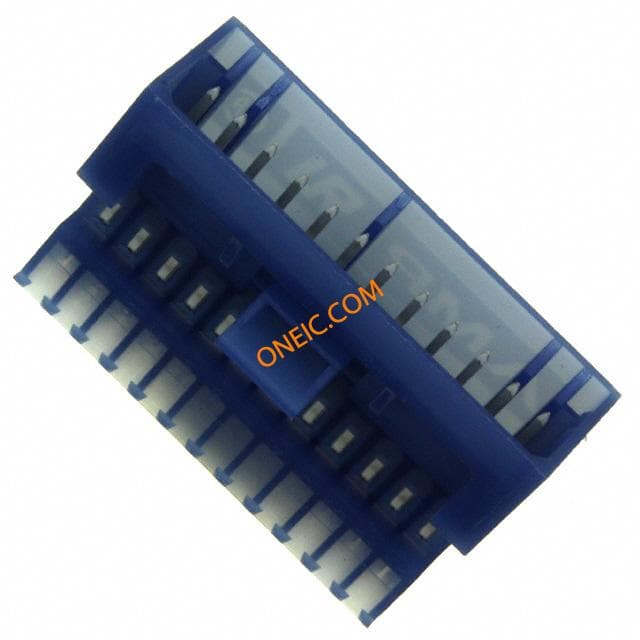

4-647002-2
