1-1375820-2
| Manufacturer | |
| Description | Conn Housing RCP 12 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT HSNG 12POS CST-100 II Headers & Wire Housings 12 POS HOUSING WHT Conn Housing RCP 12 POS 2.54mm Crimp ST Product Highlights:CST-100 II HousingsNumber of Positions = 12Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CST-100IIHOUSING12POS CST-100 II HOUSING 12 POS |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Leadfree Defin | Not relevant for lead free process | UL File Number | E28476 |
| Approval Agency | CSA,UL | CSA File Number | LR 7189 |
| Standard Number | CSA, UL | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Approval Agency Marking | 已认证 | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage - Supply | 250 VAC | Connector Impedance | 压接 |
| Current Rating (Max) | 4/Contact A | Voltage - Supply (Min) | 250VAC |
Mechanical
| Color | White | Depth | 12.95 mm |
| Pitch | 2.54 mm | Height | 6.6 mm |
| Length | 30.99 mm [ 1.22 in ] | Lock Type | 不带 |
| Packaging | Bulk | Shrouding | No |
| Body Color | 自然 | Cable Exit | 180° |
| Wire Gauge | 22-28 AWG | Contact Type | Female Socket |
| 2nd Connector | With | Housing Color | White |
| Mounting Type | Straight | Angle of Throw | Straight |
| Connector Type | Crimp | Contact Finish | 2.54 [0.100] |
| Fastening Type | Locking Ramp | Mounting Style | 不带 |
| Number of Rows | 1 | Connector Usage | Receptacle |
| Housing Material | Polymer | Length - Overall | 30.99 mm |
| Mounting Feature | Without | Package Quantity | 1 |
| Panel Mount Type | Without | Primary Material | InterconnectSystem |
| Pin Hole Diameter | 0.1" | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Mating Orientation | With |
| Number of Contacts | 12 | Termination Finish | 不带 |
| Contact Termination | Crimp | Number of Positions | 12 |
| Compatible Shell Size | 配合指定的 MTA .100 接头、类似竞争性带缺口接头和 CST .100 带罩接头 | Mounting Hole Diameter | 带有 |
| Contact Layout, Typical | 同轴 | Static Discharge Shielding | 不带 |
Product Info
| Note | Not interchangeable with CST-100 contacts and housings.; Mates with all MTA-100 | Type | Housing |
| Gender | RCP | Series | CST-100 |
| Sealable | 否 | Manufacturer | AMP |
| Product Type | CST-100 II Housings | Application Specifics | Wire-to-Board |
Environmental
| Temperature - Test | 标准部件 - 非辉光导线 | Operating Temperature | -55C to 105C |
Similar Parts
1-640456-2
te connectivity / amp
Conn Wire to Board HDR 12 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 12POS .100 TIN TE Connectivity MTA-100 Series 2.54mm Pitch 12 Way 1 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings FRICTION LCK HDR 12P Straight Post tin Conn Wire to Board HDR 12 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 12Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, VERTICAL, 0.1", 12WAY Header,FrictionLock;MTA-100;12;250VAC;Polyester;Tin;CopperAlloy;Tin Pin header 12P, 1-640456-2, TE Connectivity TE Connectivity MTA-100 系列 2.54mm节距 12路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 12P MTA100 HDR ASSY F/L SQ STR
4-644456-2
te connectivity / amp
Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 12POS .100 TIN Headers & Wire Housings NARROW FLT HDR 12P Straight Post Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONN, HEADER, 12WAY, 0.1IN 12P MTA100 HDR ASSY (NARROW)

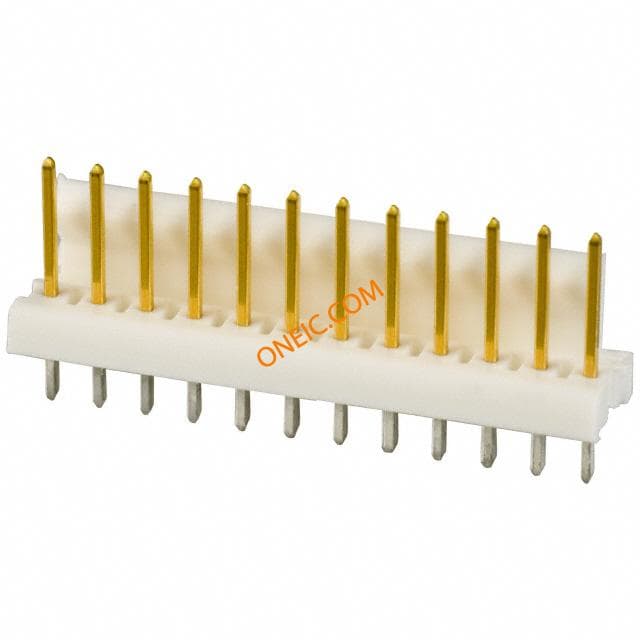

4-641215-2
