1-640453-4
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 14POS .100 TIN Headers & Wire Housings FLAT HEADER 14P Right Angle Post tin 14P MTA100 HDR ASSY SQ R/A 14P MTA100 HDR ASSY SQ R/A Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP |
| Category |
Business
| Standard Pack | 1 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | UL File Number | E28476 |
| CSA File Number | LR7189 | Standard Number | CSA, UL |
| CSA Certification | Certified | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 250 V | Voltage - Supply | 250 |
| Voltage - Rated AC | 250 | Connector Impedance | 焊接 |
| Current Rating (Max) | 5 A | ||
Mechanical
| Color | Natural | Pitch | 2.54 mm |
| Length | 35.56 mm [ 1.4 in ] | Packaging | Bulk |
| Shrouding | No | Body Color | 自然 |
| Termination | Solder | Contact Type | Male Pin |
| 2nd Connector | Without | Contact Shape | Square |
| Housing Color | White | Mounting Type | Right Angle |
| Connector Type | Header, Unshrouded | Contact Finish | Tin Over Nickel |
| Contact Timing | Without | Mounting Style | 不带 |
| Number of Rows | 1 | Plating - Body | Tin |
| Shell Material | 普通 | Connector Usage | Header |
| Insert Material | 铜合金 | Contact Material | Copper Alloy |
| Housing Material | Polyester | Mounting Feature | Without |
| Package Quantity | 1 | Panel Mount Type | Without |
| Size / Dimension | 0.64 [.025] | Termination Style | Through Hole |
| 1st Contact Gender | Pin (Male) | Mating Orientation | Without |
| Number of Contacts | 14 | Termination Finish | 不带 |
| Number of Positions | 14 | Backshell Interrupts | Without |
| Compatible Shell Size | MTA .100 连接器组件 | Contact Length - Post | 3.56 mm [ .14 in ] |
| Mounting Hole Diameter | 不带 | Contact Finish - Mating | 锡 |
| Contact Layout, Typical | 2.54 [0.100] | Contact Length - Mating | 0.295" (7.49mm) |
| Contact Material - Post | Copper Alloy | Surface Mount Land Size | Without |
| Termination Post Length | 3.56 [0.140] | Contact Finish Thickness | 3.81 µm [ 150 µin ] |
| Small Diameter Recovered | No | Static Discharge Shielding | 不带 |
| Jacket (Insulation) Thickness | 1.27 µm, 50 µin | ||
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Series | MTA-100 | Sealable | 否 |
| Manufacturer | AMP | Product Type | MTA-100 Connectors |
| Connection Type | Printed Circuit Board | Application Specifics | Wire-to-Board |
| Number of Positions Loaded | All | Number of Positions Omitted | None |
Environmental
| Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] | Thermal Resistance of Package | 1.6 mm [ .063 in ] |
Documents & Media
Similar Parts
4-643816-4
te connectivity / amp
Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 14POS 28AWG MTA100 Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:Connector Assembly14 PositionsConnector Style = ReceptacleContact Type = ReceptacleConnector Design = Closed EndSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 14P MTA100 CONN ASSY POL RIB
1-640443-4
te connectivity / amp
Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 14POS 28AWG MTA100 Headers & Wire Housings 14P ASSY GRN Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 14Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 14P MTA100 CONN ASSY GRN
4-641242-4
te connectivity / amp
Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 14POS 24AWG MTA100 Headers & Wire Housings 14P MTA100 CONN ASSY F/T NATL 14P MTA100 CONN ASSY F/T NATL 14P MTA100 CONN ASSY F/T NATL Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
1-640623-4
te connectivity / amp
Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 14POS 28AWG MTA100
1-641191-4
te connectivity / amp
Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 14POS .100 GOLD
1-644540-4
te connectivity / amp
Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 14POS .100 22AWG POLAR Headers & Wire Housings 14P MTA100 CONN ASSY MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:14 PositionsWith ContactsHousing Gender = PlugContact Gender = ReceptacleConnector Style = Feed ThroughSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 14P MTA100 CONN ASSY F/T POL
1-641242-4
te connectivity / amp
Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 14POS 24AWG FEED THRU Headers & Wire Housings 14P MTA100 CONN ASSY F/T NATL 14P MTA100 CONN ASSY F/T NATL 14P MTA100 CONN ASSY F/T NATL Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
1-641193-4
te connectivity / amp
Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece CONN RCPT 14POS .100 GOLD

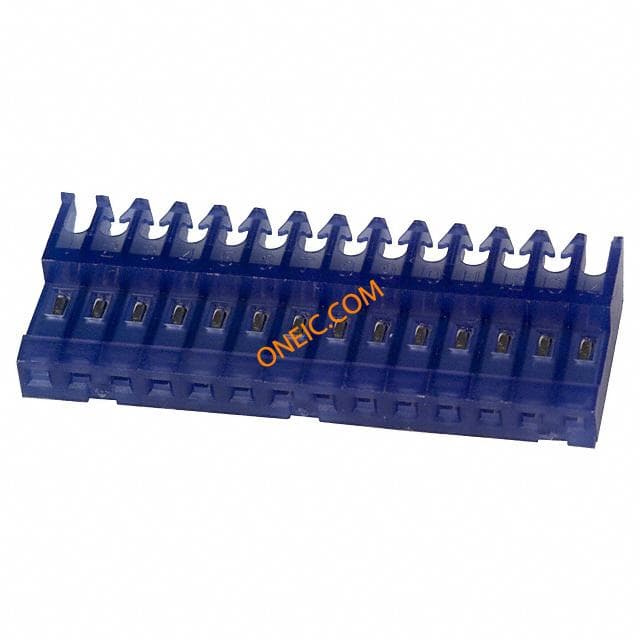

4-640622-4
te connectivity / amp
Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 14POS 26AWG MTA100 Headers & Wire Housings 14P FD THRU ASSY BLUE Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 14P MTA100 FD THRU ASSY BLUE
1-1375820-4
te connectivity / amp
Conn Housing RCP 14 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT HSNG 14POS CST-100 II Headers & Wire Housings RECPT HOUSING 14 POS CST-100 Conn Housing RCP 14 POS 2.54mm Crimp ST Product Highlights:CST-100 II HousingsNumber of Positions = 14Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CST-100 II HOUSING 14 POS
4-640442-4
te connectivity / amp
Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 14POS 26AWG MTA100 Headers & Wire Housings REC 14P C/E 26AWG W/O TABS Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:Connector14 PositionsConnector Type = ReceptacleConnector Style = Closed EndMTA-100 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE 14POS, 2.54MM 14P MTA100 CONN ASSY BLU

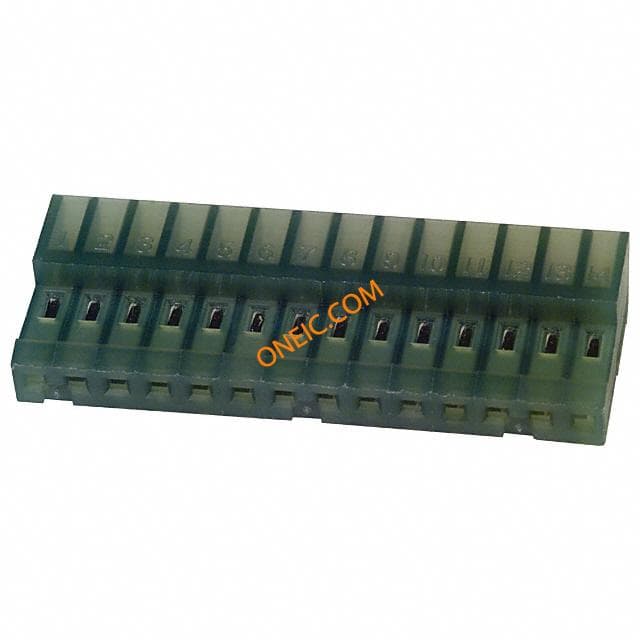

4-640443-4
te connectivity / amp
Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 14POS 28AWG MTA100 Headers & Wire Housings REC 14P C/E 28AWG W/O TABS Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 14Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE 14POS, 2.54MM 14P MTA100 CONN ASSY GRN
4-643813-4
te connectivity / amp
Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 14POS 22AWG MTA100 Headers & Wire Housings REC 14P C/E 22AWG W/ TABS Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 14Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONNECTOR, WIRE TO BOARD, RCPT, 14POS, 1ROW 14P MTA100 CONN ASSY POL RIB
4-644540-4
te connectivity / amp
Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece Headers & Wire Housings 14P MTA100 CONN ASSY F/T POL MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 14POS 22AWG MTA100 14P MTA100 CONN ASSY F/T POL 14P MTA100 CONN ASSY F/T POL Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
4-644563-4
te connectivity / amp
Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 14POS 24AWG MTA100 Headers & Wire Housings 14P MTA100 CONN ASSY F/T 24AWG 14P MTA100 CONN ASSY F/T 24AWG 14P MTA100 CONN ASSY F/T 24AWG Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

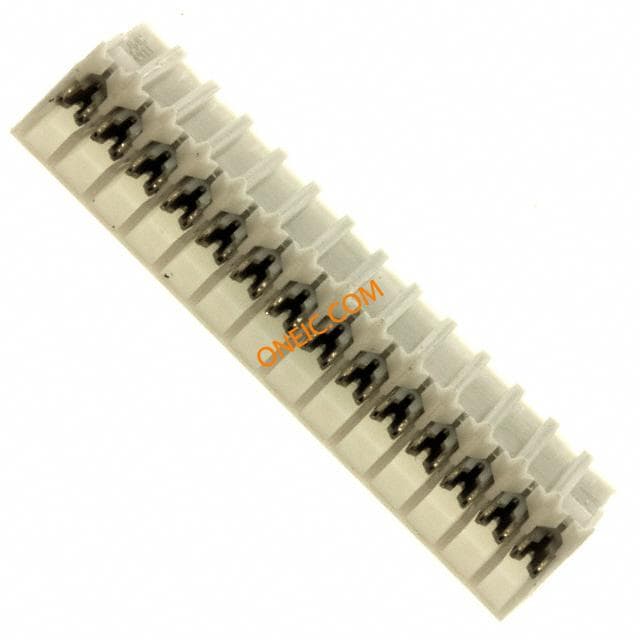

4-643814-4
