4-640442-4
| Manufacturer | |
| Description | Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 14POS 26AWG MTA100 Headers & Wire Housings REC 14P C/E 26AWG W/O TABS Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:Connector14 PositionsConnector Type = ReceptacleConnector Style = Closed EndMTA-100 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE 14POS, 2.54MM 14P MTA100 CONN ASSY BLU |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366910 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-2 | ||
Electrical
| Voltage Rating | 250 VAC | Switch Function | Ramp Lock |
| Contact Resistance | 6 mohm | Voltage - Rated AC | 250 |
| Current Rating (Max) | 5 A | Voltage - Supply (Min) | 250VAC |
Mechanical
| Color | Blue | Depth | 6.99 mm |
| Pitch | 2.54 mm | Height | 13.21 mm |
| Weight | 0.00001 | Packaging | Bulk |
| Shrouding | No | Wire Type | Discrete or Ribbon Cable |
| Cable Exit | 90° | Wire Gauge | 26 AWG |
| Termination | IDT | Contact Type | Female Socket |
| 2nd Connector | With | Housing Color | Blue |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Closed End |
| Contact Finish | Tin Over Nickel | Fastening Type | Locking Ramp |
| Mounting Style | Wire | Number of Rows | 1 |
| Connector Usage | Receptacle | Contact Material | Copper Alloy |
| Housing Material | Nylon | Length - Overall | 35.56 mm |
| Mounting Feature | Without | Package Quantity | Loose Piece |
| Panel Mount Type | Without | Cable Termination | IDC |
| Termination Style | IDC | 1st Contact Gender | Socket (Female) |
| Mating Orientation | Without | Number of Contacts | 14 |
| Contact Termination | :IDC / IDT | Number of Positions | 14 |
| Contact Layout, Typical | 2.54 [0.100] | Contact Finish Thickness | 80µin (2.03µm) |
| Small Diameter Recovered | No | Wire Gauge or Range - mm2 | 0.12-0.15² [26] |
Product Info
| Type | IDC Connector | Gender | F |
| Series | MTA-100 | Features | Closed End |
| Manufacturer | AMP | Product Type | MTA-100 Connectors |
| Connection Type | Wire | Number of Positions Omitted | None |
Environmental
| Operating Temperature | -55C to 105C | ||
Documents & Media
Similar Parts
1-644487-4
te connectivity / amp
Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 14POS VERT GOLD Headers & Wire Housings 14P MTA100 SHRD HDR ASSY 30AU Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 14Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 14P MTA100 SHRD HDR ASSY 30AU

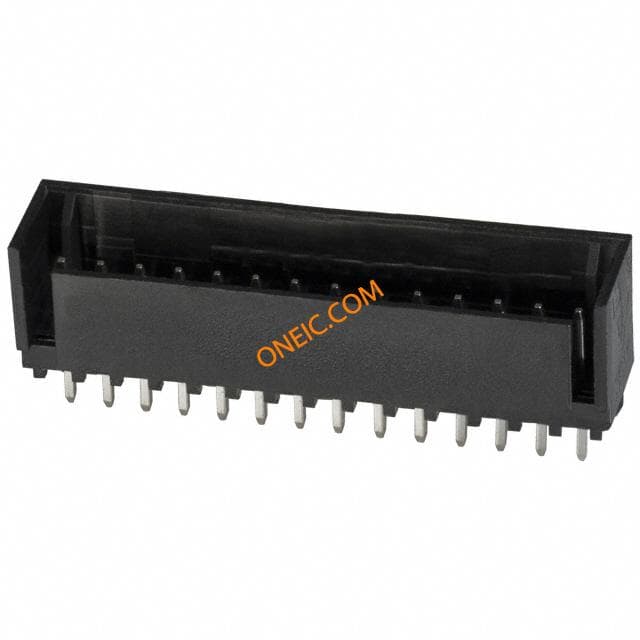

3-644486-4
