1-1375820-4
| Manufacturer | |
| Description | Conn Housing RCP 14 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT HSNG 14POS CST-100 II Headers & Wire Housings RECPT HOUSING 14 POS CST-100 Conn Housing RCP 14 POS 2.54mm Crimp ST Product Highlights:CST-100 II HousingsNumber of Positions = 14Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CST-100 II HOUSING 14 POS |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Leadfree Defin | Not relevant for lead free process | UL File Number | E28476 |
| CSA File Number | LR 7189 | Standard Number | CSA, UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Approval Agency Marking | 已认证 |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage - Supply | 250 VAC | Connector Impedance | 压接 |
| Current Rating (Max) | 4/Contact A | Voltage - Supply (Min) | 250VAC |
Mechanical
| Color | White | Depth | 12.95 mm |
| Pitch | 2.54 mm | Height | 6.6 mm |
| Length | 36.07 mm [ 1.42 in ] | Lock Type | 不带 |
| Packaging | Bulk | Shrouding | No |
| Body Color | 自然 | Cable Exit | 180° |
| Wire Gauge | 22-28 AWG | Contact Type | Female Socket |
| 2nd Connector | With | Housing Color | White |
| Mounting Type | Straight | Connector Type | Crimp |
| Contact Finish | 2.54 [0.100] | Fastening Type | Locking Ramp |
| Mounting Style | 不带 | Number of Rows | 1 |
| Connector Usage | Receptacle | Housing Material | Polymer |
| Length - Overall | 36.07 mm | Mounting Feature | Without |
| Package Quantity | 1 | Panel Mount Type | Without |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Mating Orientation | With | Number of Contacts | 14 |
| Termination Finish | 不带 | Contact Termination | Crimp |
| Number of Positions | 14 | Compatible Shell Size | 配合指定的 MTA .100 接头、类似竞争性带缺口接头和 CST .100 带罩接头 |
| Mounting Hole Diameter | 带有 | Contact Layout, Typical | 同轴 |
| Static Discharge Shielding | 不带 | ||
Product Info
| Note | Not interchangeable with CST-100 contacts and housings.; Mates with all MTA-100 | Type | Housing |
| Gender | RCP | Series | CST-100 |
| Sealable | 否 | Manufacturer | AMP |
| Product Type | CST-100 II Housings | Application Specifics | Wire-to-Board |
Environmental
| Temperature - Test | 标准部件 - 非辉光导线 | Operating Temperature | -55C to 105C |
Documents & Media
Similar Parts
1-640456-4
te connectivity / amp
Conn Wire to Board HDR 14 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 14POS .100 TIN TE Connectivity MTA-100 Series 2.54mm Pitch 14 Way 1 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings FRICTION LCK HDR 14P Straight Post tin Conn Wire to Board HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 14Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONN, HEADER, 14POS, 2.54MM Header,FrictionLock;MTA-100;14;250VAC;Polyester;Tin;CopperAlloy;Tin 14P MTA100 HDR ASSY F/L SQ STR
1-644884-4
te connectivity / amp
Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 14POS VERT .100 GOLD Headers & Wire Housings 14P HDR NARROW AU 14P MTA100 HDR ASSY,NARROW AU
1-641216-4
te connectivity / amp
Conn Wire to Board HDR 14 POS 2.54mm Solder RA Thru-Hole Headers & Wire Housings FRICTION LCK HDR 14P R.A. Post gold MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A 14POS .100 30AU Conn Wire to Board HDR 14 POS 2.54mm Solder RA Thru-Hole Product Highlights:Header14 PositionsPreloadedHeader Gender = PlugContact Gender = PinSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 14P MTA100 HDR ASSY FL/RA 30AU
1-641214-4
te connectivity / amp
Conn Wire to Board HDR 14 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A 14POS .100 30AU Headers & Wire Housings POLARIZED HEADER 14P R.A. Post gold 14P MTA100 HDR ASSY PO/RA 30AU 14P MTA100 HDR ASSY PO/RA 30AU Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
4-644694-4
te connectivity / amp

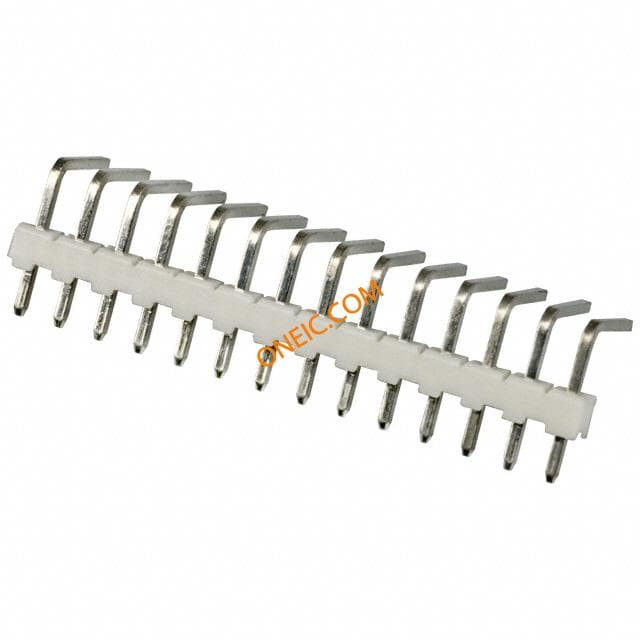

Conn Unshrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG .100 14POS TIN Headers & Wire Housings 14P RA HDR RETENTIVE Conn Unshrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 14Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 14P MTA100 R/A HDR RETENTIVE
1-641215-4
te connectivity / amp
Conn Wire to Board HDR 14 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 14POS .100 30AU Headers & Wire Housings FRICTION LCK HDR 14P Straight Post gold 14P MTA100 HDR ASSY FL/ST 30AU
1-640453-4
te connectivity / amp
Conn Unshrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 14POS .100 TIN Headers & Wire Housings FLAT HEADER 14P Right Angle Post tin 14P MTA100 HDR ASSY SQ R/A 14P MTA100 HDR ASSY SQ R/A Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
1-640452-4
te connectivity / amp
Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 14POS VERT .100 TIN Headers & Wire Housings FLAT HEADER 14P Straight Post tin Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 14Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 14P MTA100 HDR ASSY SQ STR
1-640455-4
te connectivity / amp
Conn Wire to Board HDR 14 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A 14POS .100 TIN Headers & Wire Housings POLARIZED HEADER 14P Right Angle Post tin Conn Wire to Board HDR 14 POS 2.54mm Solder RA Thru-Hole Product Highlights:14 PositionsWith ContactsHousing Gender = Header - PinContact Gender = PinMTA-100 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 14P MTA100 HDR ASSY SQ R/A POL
1-644894-4
te connectivity / amp
Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 14POS R/A TIN Headers & Wire Housings 14P CST100 SHRD HDR ASSM R/A Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Product Highlights:CST-100 ConnectorsNumber of Positions = 14Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
4-641213-4
te connectivity / amp

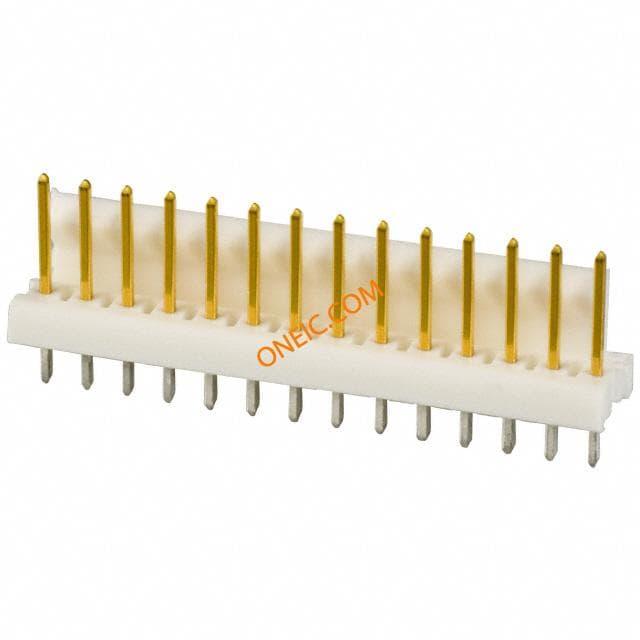

Conn Wire to Board HDR 14 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 14POS .100 30AU Headers & Wire Housings POLARIZED HEADER 14P Straight Post gold Conn Wire to Board HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:Header14 PositionsPreloadedHeader Gender = PlugContact Gender = PinSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 14P MTA100 HDR ASSY PO/ST LF
4-644695-4
te connectivity / amp

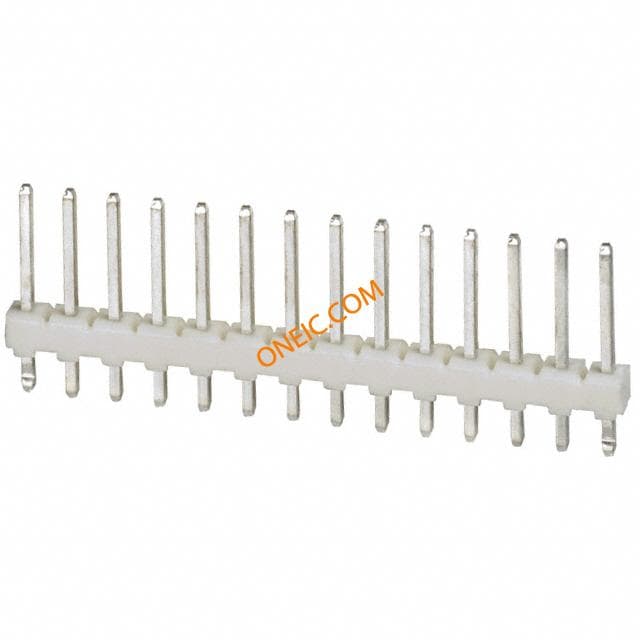

Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 14POS .100 TIN Headers & Wire Housings NARROW FLT HDR 14P Strt Post w/ret. leg Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 14P MTA100 STR HDR RETENTIVE
4-641214-4
te connectivity / amp

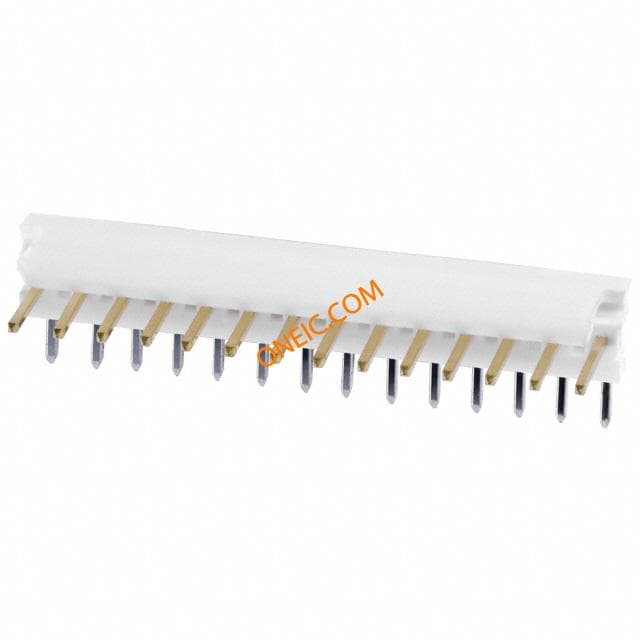

Conn Wire to Board HDR 14 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A 14POS .100 30AU Headers & Wire Housings 14P HDR ASSY PO/RA 14P MTA100 HDR ASSY PO/RA LF
