点击放大查看
1-350778-9
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Power to the Board | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | CSA File Number | LR7189 |
| Standard Number | CSA, UL | CSA Certification | Certified |
| UL Flammability Rating | UL 94V-0 | Approval Agency Marking | 是 |
Electrical
| Voltage Rating | 600 V | Voltage - Supply | 600 |
| Current Rating (Max) | 19 A | Connector - Voltage Input | Crimp |
Mechanical
| Color | Black | Pitch | 6.35 mm |
| Sealed | Not Sealed | Packaging | Bulk |
| Body Color | 黑色 | Size - Body | .76 – 2.29 mm [ .03 – .09 in ] |
| Contact Form | Male or Female | Contact Type | Male or Female |
| Mounting Type | Straight | Connector Type | Receptacle |
| Contact Finish | Without | Fastening Type | Locking Ramp |
| Mounting Style | Panel Mount, Free Hanging | Number of Rows | 2 |
| Package / Case | Receptacle | Housing Material | Polyamide (PA) |
| Package Quantity | 1 | Panel Mount Type | 带有 |
| Termination Style | Quick Connect | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 2 | Contact Termination | Crimp |
| Number of Positions | 2 | Compatible Shell Size | 适当的通用 MATE-N-LOK 插头 |
| Contact Layout, Typical | 直插式 | 1st Connector Mounting Type | Panel |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Product Type | Housings |
| Output Configuration | Panel Mount, Snap-In | Assembly Configuration | Without |
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] |
Documents & Media
Online Document
Similar Parts
350547-7
te connectivity / amp
$3.2640
Details
1-480698-9
te connectivity / amp
$2.1733
Details

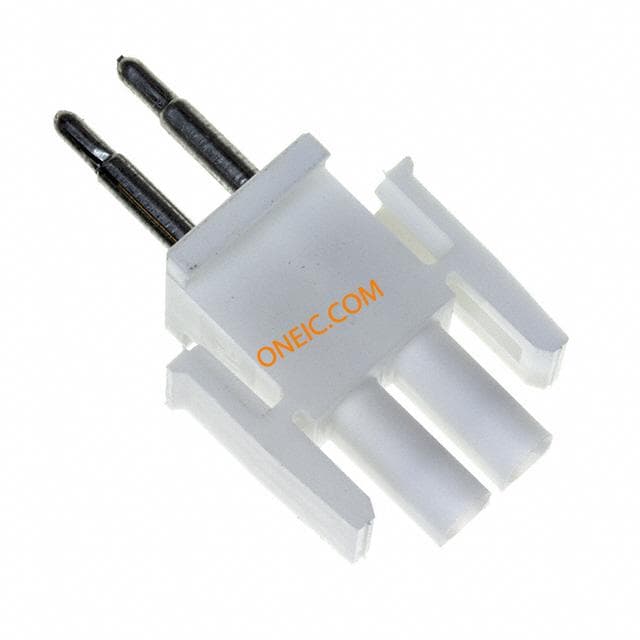

350848-2
te connectivity / amp
$377.8882
Details
1-480698-0
te connectivity / amp
$0.7575
Details
350851-7
te connectivity / amp
$1.3056
Details

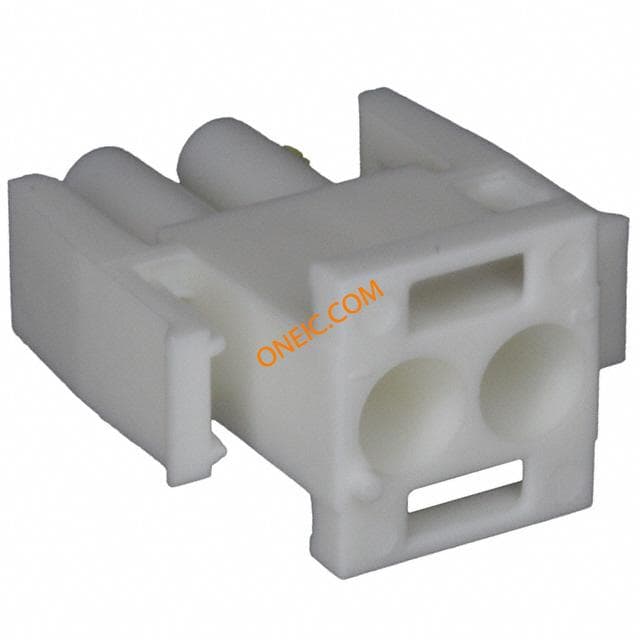

350777-1
