350777-1
| Manufacturer | |
| Description | Conn Housing PL 2 POS 6.35mm ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 2POS 94V-0 UNI-MATE 2 way white plug housing Pin & Socket Connectors PLUG HOUSE 2 POS Conn Housing PL 2 POS 6.35mm ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 2Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG HOUSING, 2WAY Connector,SoftShell;UniversalMATE-N-LOK;2;Plug;Nylon;White;19A Plug; wire-wire/PCB; male/female; w/o terminals; 6.35mm; PIN:2 Crimp housing Pitch6.35 mm Poles 2 Single row / Free hanging/cable mount MATE-N-LOK Universal, 350777-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 1 行 6.35mm 节距 2 路 直 公 压接连接器外壳 02P UMNL PLUG HSG |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | Material Flammability Rating | :UL94V-0 |
Electrical
| Voltage Rating | 600 V | Voltage - Working | :600V |
| Contact Resistance | :3.5mohm | Dielectric Strength | :5000V |
| Current Rating (Max) | 19 A | Insulation Resistance | :1000Mohm |
| Voltage - Input (Min) | 600VAC | Voltage - Supply (Min) | 600VAC |
| Connector - Voltage Input | w/o terminals | ||
Mechanical
| Color | Natural | Depth | 27.43mm |
| Pitch | 6.35 mm | Width | 14.73mm |
| Height | 14.73 mm | Weight | 0.002 |
| Material | :Nylon | Packaging | Loose Piece |
| Wire Gauge | 10-30 AWG | Contact Type | Male or Female |
| Pitch - Post | 6.35mm | Housing Color | White |
| Mounting Type | Straight | Connector Type | Plug |
| Fastening Type | Latch Lock | Mounting Style | Free Hanging |
| Number of Rows | 1 | Locking Feature | lock |
| Material Finish | :- | Contact Material | Phosphor Bronze |
| Housing Material | Nylon | Package Quantity | 350 |
| Connector - Cable | plug | Termination Style | Crimp |
| 1st Contact Gender | Pin (Male) | Color - Connectors | :Opaque |
| Number of Contacts | 2 | Contact Termination | Crimp |
| Number of Positions | 2 | 1st Connector Mounting Feature | 1x2 |
Product Info
| Spg | 350 | Note | Contacts Not Provided |
| Type | Housing | Gender | PL |
| Series | MATE-N-LOK | CAD Drawing | 3D CAD Model |
| Product Type | Receptacle Housings | Adapter Series | Universal MATE-N-LOK |
| Number of Units | 1 | For Use With/Related Products | Wire-to-Board Connector |
Environmental
| Mating Cycles | :50 | Operating Temperature | -55C to 105C |
Documents & Media
Similar Parts
350824-2
te connectivity / amp
Conn Power SKT 2 POS 6.35mm Solder ST Thru-Hole 2 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 2POS VERT .250 AU Pin & Socket Connectors HEADER 2 POS 2 Position 6.35mm Universal Mate-N-Lok Vertical Receptacle
350428-4
te connectivity / amp
Conn Power HDR 2 POS 6.35mm Solder ST Thru-Hole 2 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 2POS VERT .250 AU Power to the Board HDR PIN 1X02C VRT V2 Conn Power HDR 2 POS 6.35mm Solder ST Thru-Hole 2 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 2Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UNIVM-N-LHEADER,02PUMNLPINHDRASSYNATLAU 02P UMNL PIN HDR ASSY NATL AU
173924-2
te connectivity / amp
Conn Wire to Board HDR 2 POS 6.35mm Solder ST Thru-Hole CONN PIN HEADER 2POS ACTION UMNL
350824-1
te connectivity / amp
Conn Power SKT 2 POS 6.35mm Solder ST Thru-Hole 2 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 2POS VERT .250 TIN MATE-N-LOK 2 Male Straight Heavy Duty Power Connector, Through Hole 19A,600V ac Pin & Socket Connectors 2 POS STD TAIL SOCKT Conn Power SKT 2 POS 6.35mm Solder ST Thru-Hole 2 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 2Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HEADER, 2 WAY UNIVM-N-LHEADER,02PUMNLHDRASSYPC94VO TE Connectivity Universal MATE-N-LOK 系列 2路 直 6.35mm节距 通孔 公 RJ45-Rangierfeld, 功率 02P UMNL HDR ASSY PC 94VO
1-641964-1
te connectivity / amp
Conn Power HDR 2 POS 6.35mm Solder ST Thru-Hole 2 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 2POS .250 VERT AU Pin & Socket Connectors HDR PIN 1X02C VRT V0 Conn Power HDR 2 POS 6.35mm Solder ST Thru-Hole 2 Terminal 1 Port Product Highlights:ConnectorConnector Type = Header - PinUniversal MATE-N-LOK Product LineIn-Line Contact Layout6.35 mm CenterlineSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 02P UMNL HDR ASSY POL BLK
1-480699-0
te connectivity / amp
Conn Housing RCP 2 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN CAP 2POS 94V-2 UNI-MATE Pin & Socket Connectors CAP HOUSE 2 POS Conn Housing RCP 2 POS 6.35mm Crimp ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 2Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HOUSING, RECEPTACLE, SINGLE ROW, 2 WAY Connector,SoftShell;UniversalMATE-N-LOK;2;Receptacle(Cap);Nylon;19A Socket; wire-board; male/female; w/o terminals; PIN:2; 600V Receptacle housing Pitch6.35 mm Poles 2 Single row / for panel mount MATE-N-LOK Universal, 1-480699-0, TE Connectivity 02P UMNL CAP HSG NATL
641963-1
te connectivity / amp
Conn Power HDR 2 POS 6.35mm Solder ST Thru-Hole 2 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 2POS VERT .250 TIN TE Connectivity Universal MATE-N-LOK Series 6.35mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 15A Pin & Socket Connectors HEADER ASSY 2 POS Conn Power HDR 2 POS 6.35mm Solder ST Thru-Hole 2 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 2Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UNIVM-N-LHEADER,02PUMNLPINHDRASSYPOLNATL TE Connectivity Universal MATE-N-LOK 系列 6.35mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 15A , 通孔 02P UMNL PIN HDR ASSY POL NATL
350787-2
te connectivity / amp
Conn Power HDR 2 POS 6.35mm Solder ST Thru-Hole 2 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 2POS VERT .250 AU Power to the Board VERT PCB PIN HDR 2P
350824-4
te connectivity / amp
Conn Power SKT 2 POS 6.35mm Solder ST Thru-Hole 2 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 2POS VERT UMNL GOLD Power to the Board HDR SKT 1X02C VRT V0 Conn Power SKT 2 POS 6.35mm Solder ST Thru-Hole 2 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 2Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONNECTOR, HEADER, MATE-N-LOK, 2WAY 02P UMNL HDR ASSY PC LF
641964-3
te connectivity / amp
Conn Wire to Board HDR 2 POS 6.35mm Solder ST Thru-Hole Pin & Socket Connectors HDR PIN 1X02C VRT V0 .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 2POS VERT UMNL WHITE .250" Centerline, 600 V, 19 - 36 A max Product Highlights:ConnectorUniversal MATE-N-LOK Product LineHousing Gender = Header - PinPreloadedContact Gender = PinSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 02P UMNL PIN HDR ASSY POL LF
1-480699-6
te connectivity / amp
Conn Housing RCP 2 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN CAP 2POS UNIV-M-N-L BLUE Power to the Board CAP HOUSE 2 POS BLUE UL94V-2 Conn Housing RCP 2 POS 6.35mm Crimp ST Individual Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 02P UMNL CAP HSG BLU
1-480699-5
te connectivity / amp
Conn Housing RCP 2 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN CAP 2POS UNIV-M-N-L GREEN Power to the Board CAP HOUSE 2 POS GREEN UL94V-2 .250" Centerline, 600 V, 19 - 36 A max Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 2Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 02P UMNL CAP HSG GRN
1-480699-2
te connectivity / amp
Conn Housing RCP 2 POS 6.35mm Crimp ST Cable Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL CAP 2POS 94V-2 RED Power to the Board CAP HOUSE 2 POS RED UL94V-2 Conn Housing RCP 2 POS 6.35mm Crimp ST Cable Mount Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 2Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG & SOCKET HOUSING, RECEPTACLE, NYLON UNIVMATE-N-LOKHSG,02PUMNLCAPHSGRED 02P UMNL CAP HSG RED
643412-1
te connectivity / amp
Conn Power SKT 2 POS 6.35mm Solder ST Thru-Hole 2 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 2POS VERT .250 TIN Power to the Board 02P UMNL HDR ASSY PO Conn Power SKT 2 POS 6.35mm Solder ST Thru-Hole 2 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 2Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Conn;Header;Socket;2Pos;UnivMATE-N-LOK;Vertical;White 02P UMNL HDR ASSY POL 94VO

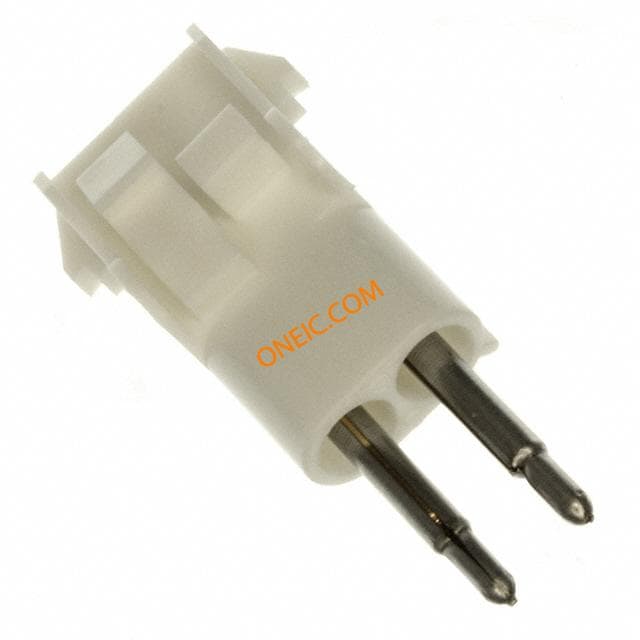

350849-2
