5499786-6
| Manufacturer | |
| Description | Conn Ejector Header HDR 26 POS 2.54mm Solder RA Thru-Hole Headers & Wire Housings 26 POS HDR 15AU R/A W/LONG LATCHES Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 26POS .100 GOLD Conn Ejector Header HDR 26 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 262.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, RIGHT ANGLE, 26WAY A/L UNIV HDR 26P RA LG LAT |
| Category |
Business
| Tradename | AMP-LATCH | Product Category | Headers & Wire Housings |
| Standard Package | Trays | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | Approval Agency | :CSA, UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Range deg/s | :TE - AMP-LATCH Series | Switch Function | Ejection |
| Current Rating (Max) | :1A | Insulation Resistance | :1Gohm |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Length | :52.42mm | Weight | 0.008 |
| Packaging | Tray | Shrouding | Yes |
| Row Spacing | 0.100" (2.54mm) | Termination | Solder |
| Contact Type | Male Pin | Lead Spacing | :1.27mm |
| Pitch - Post | 2.54 x 2.54 [.100 x .100] | Polarization | Center, Dual Polarizing Bar, Military |
| 2nd Connector | With | Contact Shape | Square |
| Housing Color | Black | Mounting Type | Right |
| Shell Plating | :Tin/lead over nickel | Connector Type | Universal Ejection Pin Headers |
| Contact Finish | Gold Over Nickel | Fastening Type | Latch, Long/Eject Hooks |
| Number of Rows | 2 | Package / Case | 4-Sided |
| Board Thickness | 1.57 [0.062] | Locking Feature | Latch |
| Profile (W x H) | Standard | Contact Material | :Copper |
| Housing Material | Thermoplastic | Size / Dimension | 0.64 [.025] |
| Termination Style | Solder | 1st Contact Gender | Pin (Male) |
| Color - Connectors | :Black | Mating Orientation | With |
| Number of Contacts | 26 | Contact Termination | :Through Hole Right Angle |
| Number of Positions | 26 | Contact Length - Mating | 0.240" (6.10mm) |
| Termination Post Length | 2.79 [0.110] | Contact Finish Thickness | 15µin (0.38µm) |
| Mounting Panel Thickness | :42.16mm | 1st Connector Mounting Type | :Right Angle |
Product Info
| Type | Ejector Header | Gender | HDR |
| Series | AMP-LATCH | Polarity | :Bump/Clip |
| Product Type | Headers - Universal Ejection Pin | Other Specifications | With |
| Number of Positions Loaded | All | ||
Environmental
| Mating Cycles | :50 | Temperature Rating | Standard |
| Operating Temperature | :105°C | ||
Similar Parts
1658623-6
te connectivity / amp
Conn IDC Connector RCP 26 POS 2.54mm IDT RA Cable Mount Tube Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 26POS GOLD Connector,Receptacle,Novo,26,Gold(30) Connector; Receptacle; Novo; 26; Gold (30); Tin-Lead; 0.100 in. x 0.100 in. Headers & Wire Housings .1CL IDC REC 2X13P MIL 30AU Conn IDC Connector RCP 26 POS 2.54mm IDT RA Cable Mount Tube Product Highlights:Connector Type = NOVONumber of Positions = 26ReceptacleMating Polarization Method = MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 26POS, 2.54MM Connector,Receptacle;Novo;26;Gold(30);Tin-Lead;0.100in.x0.100in. TE Connectivity AMP-LATCH Novo 系列 2行 26路 2.54mm节距 母 IDC 连接器 , 电缆安装 26 NOVO MIL 30DP, LEAD FREE
1-1658526-6
te connectivity / amp
Conn IDC Connector F 26 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN RECEPT 26POS .100 30GOLD 26 Way HE10 Skt w/ Strain Relief Headers & Wire Housings IDC RCPT 26P W/STR RLF Conn IDC Connector F 26 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = AMP-LATCHNumber of Positions = 26ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 26WAY CONNECTOR,RECEPTACLE,AMP-LATCH609,26POSITION,MATINGPOLARIZATION TE Connectivity AMP-LATCH 609 系列 2行 26路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 609-2641LF FEM SOCKT,LEAD FREE
1658620-6
te connectivity / amp
Conn IDC Connector F 26 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 26POS 15 GOLD CONNECTOR, RECEPTACLE, NOVA, AMP-LATCH Headers & Wire Housings MLTRY PLRZD RECPT 26 NOVO Conn IDC Connector F 26 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 26ReceptacleMating Polarization Method = MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board CONNECTOR,RECEPTACLE,NOVA,AMP-LATCH,26POSITION,WITHMATINGPOLARIZATION 26 NOVO MIL 15DP, LEAD FREE
1658621-6
te connectivity / amp
Conn IDC Connector F 26 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 26POS W/POL 15 GOLD 26way polarised skt w/o strain relief Headers & Wire Housings CNTR PLRZD RECPT 26P NOVO Conn IDC Connector F 26 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 26ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board CONNECTOR, HEADER, IDC, 2.54MM, 26WAY Connector,Receptacle;Novo;26;Gold(15);Tin-Lead;0.100in.x0.100in. Plug; IDC; female; PIN:26; IDC; for ribbon cable; 1.27mm Multipole socket DIN 41651 26P, 1658621-6, TE Connectivity TE Connectivity AMP-LATCH Novo 系列 2行 26路 2.54mm节距 直角 电缆安装 母 IDC 连接器 26 NOVO MIL/CTR 15DP,LEAD FREE
5499922-6
te connectivity / amp
Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 26POS .100 15AU TE Connectivity 5499922 Series 2.54mm Pitch 26 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings 26 POS HDR 15AU W/LONG LATCHES Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 262.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 26WAY HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,26POS,2.54X2.54,PCB,VERTICAL TE Connectivity AMP-LATCH 系列 26路 2.54mm节距 (2排) 直 PCB 针座 , 焊接端接, 1A, 通孔 A/L UNIV HDR 26P VERT LG LAT
1658622-6
te connectivity / amp
Conn IDC Connector F 26 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 26POS W/POL GOLD AMP-Latch receptacle,0.08-0.15mm²,26way Headers & Wire Housings .1CL IDC REC 2X13P C&M 30AU Conn IDC Connector F 26 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 26ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 26POS, 2.54MM Connector,Receptacle;Novo;26;Gold(30);Tin-Lead;0.100in.x0.100in. TE Connectivity AMP-LATCH Novo 系列 2行 26路 2.54mm节距 直角 电缆安装 母 IDC 连接器 26 NOVO MIL/CTR 30DP,LEAD FREE
2-1634689-6
te connectivity / amp
Conn Shrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole AMP-LATCH Novo Receptacle Connectors TE Connectivity 2-1634689 Series 2.54mm Pitch 26 Way 2 Row Right Angle PCB Header, Solder Termination Headers & Wire Housings BOX HEADER R/A 26P Conn Shrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole Product Highlights:PreloadedHousing Gender = Header - PinHeader Type = Pin HeaderAMP-LATCH Product LineLow ProfileSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, BOX, RIGHT ANGLE, 26WAY BOX HEADER RIGHT ANGLE 26 WAY 26wayIDClowprofileboxr/aheader,1A Pin header DIN 41651 26P, 2-1634689-6, TE Connectivity TE Connectivity 2.54mm节距 26路 (2排) 直角 PCB 针座, 焊接端接
1-1658526-5
TE Connectivity / AMP
Headers & Wire Housings IDC RCPT 26P Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 26POS VERT GOLD Conn IDC Connector F 26 POS 2.54mm IDT RA Cable Mount Conn IDC Connector F 26 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = AMP-LATCHNumber of Positions = 26ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 26WAY CONNECTOR,RECEPTACLE,AMP-LATCH609,26POSITION,MATINGPOLARIZATION 609-2630LF FEM SOCKT,LEAD FREE
2-1634688-6
te connectivity / amp
Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) TE Connectivity 2-1634688 Series 2.54mm Pitch 26 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings HDR STRAIGHT 26P Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 262.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, THT, VERTICAL, 2.54MM, 26WAY BOX HEADER STRAIGHT 26 WAY 26way2rowverticalthroughholeheader Pin header DIN 41651 26P, 2-1634688-6, TE Connectivity
499252-3
te connectivity / amp

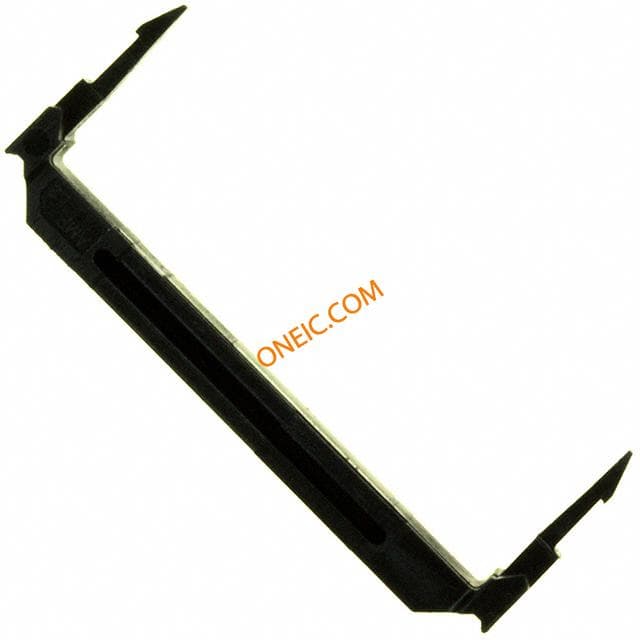

Connector Accessories 26 POS Receptacle Flat Cable Connector Strain Relief Thermoplastic Black Accessories (AMP-LATCH) STRAIN RELIEF 26POS SOCKET CONN 26 way IDC strain relief Headers & Wire Housings STRAIN RELIEF 26POS Connector Accessories 26 POS Receptacle Flat Cable Connector Strain Relief Thermoplastic Black Product Highlights:Strain ReliefNumber of Positions = 26Search Keywords:input/output, paddleboard, paddle board StrainRelief,CableConnector;26;Thermoplastic;UL94V-0;Black Strain relief 26P, 499252-3, TE Connectivity TE Connectivity 26路 应力释放支架, 使用于 AMPLATCH Novo 系列 带状电缆 026 STRAIN RELIEF A-L RCPT
