5102153-6
| Manufacturer | |
| Description | Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 26POS .100 GOLD Header; Universal Ejection Pin Header Headers & Wire Housings 26 POS HDR 15AU W/OUT LATCHES Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard Profile26 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 26POS, 2.54MM Header;UniversalEjectionPinHeader;26;0.100x0.100in.;Vertical(PCB) A/L UNIV HDR 26P VERT |
| Category |
Business
| Tradename | AMP-LATCH | Product Category | Headers & Wire Housings |
| Standard Package | Trays | Factory Pack Quantity | 60 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366930 |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Range deg/s | :TE - AMP-LATCH Series | Current Rating (Max) | 1/Contact A |
| Voltage - Supply (Min) | 250VAC | ||
Mechanical
| Color | Black | Depth | 8.53 mm |
| Pitch | 2.54 mm | Height | 13.94 mm |
| Weight | 0.005 | Packaging | Bulk |
| Shrouding | Yes | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Type | Male Pin |
| Polarization | Center, Dual Polarizing Bar, Military | 2nd Connector | Without |
| Contact Shape | Square | Housing Color | Black |
| Mounting Type | Vertical | Connector Type | Universal Ejection Pin Headers |
| Contact Finish | Gold Over Palladium Nickel|Gold Over Nickel | Mounting Style | Through Hole |
| Number of Rows | 2 | Package / Case | 4-Sided |
| Board Thickness | 1.57 [0.062] | Profile (W x H) | Standard |
| Contact Material | Brass, Phosphor Bronze | Housing Material | Thermoplastic |
| Length - Overall | 42.16 mm | Size / Dimension | 0.64 [.025] |
| Termination Style | Through Hole | 1st Contact Gender | Pin (Male) |
| Mating Orientation | With | Number of Contacts | 26 |
| Contact Termination | :Through Hole Vertical | Number of Positions | 26 |
| Center Contact Material | 2.54 x 2.54 [.100 x .100] | Contact Length - Mating | 0.240" (6.10mm) |
| Termination Post Length | 2.79 [0.110] | Contact Finish Thickness | 15µin (0.38µm) |
Product Info
| Type | Ejector Header | Gender | HDR |
| Series | AMP-LATCH | Product Type | Headers |
| Other Specifications | Without | Number of Positions Loaded | All |
Environmental
| Temperature Rating | Standard | Operating Temperature | +105°C |
Documents & Media
Similar Parts
102320-1
te connectivity / amp
Connector Accessories Latch Thermoplastic Black Accessories (AMP-LATCH) LOCK EJECTOR HOOKS FOR HDR LONG Latch Long Black AmpLatch Headers & Wire Housings UNIVERSAL HDR LATCH Connector Accessories Latch Thermoplastic Black Product Highlights:LatchSearch Keywords:ribbon cable connector system, hardware, EJECTOR LATCH, UNIVERSAL HEADER HeaderLatches,formatingreceptacleswithstrainrelief TE Connectivity 闩锁, 使用于AMPLATCH Novo 系列 UNIVERSAL HEADER LATCH
1658623-6
te connectivity / amp
Conn IDC Connector RCP 26 POS 2.54mm IDT RA Cable Mount Tube Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 26POS GOLD Connector,Receptacle,Novo,26,Gold(30) Connector; Receptacle; Novo; 26; Gold (30); Tin-Lead; 0.100 in. x 0.100 in. Headers & Wire Housings .1CL IDC REC 2X13P MIL 30AU Conn IDC Connector RCP 26 POS 2.54mm IDT RA Cable Mount Tube Product Highlights:Connector Type = NOVONumber of Positions = 26ReceptacleMating Polarization Method = MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 26POS, 2.54MM Connector,Receptacle;Novo;26;Gold(30);Tin-Lead;0.100in.x0.100in. TE Connectivity AMP-LATCH Novo 系列 2行 26路 2.54mm节距 母 IDC 连接器 , 电缆安装 26 NOVO MIL 30DP, LEAD FREE
1-1658526-6
te connectivity / amp
Conn IDC Connector F 26 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN RECEPT 26POS .100 30GOLD 26 Way HE10 Skt w/ Strain Relief Headers & Wire Housings IDC RCPT 26P W/STR RLF Conn IDC Connector F 26 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = AMP-LATCHNumber of Positions = 26ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 26WAY CONNECTOR,RECEPTACLE,AMP-LATCH609,26POSITION,MATINGPOLARIZATION TE Connectivity AMP-LATCH 609 系列 2行 26路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 609-2641LF FEM SOCKT,LEAD FREE
102312-1
te connectivity / amp
Connector Accessories Latch Thermoplastic Black Accessories (AMP-LATCH) LOCK EJECTOR HOOKS FOR HDR SHORT Latch accessory black Amp-Latch Headers & Wire Housings UNIVERSAL HDR LATCH Connector Accessories Latch Thermoplastic Black Product Highlights:LatchSearch Keywords:ribbon cable connector system, hardware, HeaderLatches,formatingreceptacleswithoutstrainrelief Ejector/latchP, 102312-1, TE Connectivity TE Connectivity 应力释放支架, 使用于 AMPLATCH Connector 带状电缆 UNIVERSAL HEADER LATCH
1658620-6
te connectivity / amp
Conn IDC Connector F 26 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 26POS 15 GOLD CONNECTOR, RECEPTACLE, NOVA, AMP-LATCH Headers & Wire Housings MLTRY PLRZD RECPT 26 NOVO Conn IDC Connector F 26 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 26ReceptacleMating Polarization Method = MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board CONNECTOR,RECEPTACLE,NOVA,AMP-LATCH,26POSITION,WITHMATINGPOLARIZATION 26 NOVO MIL 15DP, LEAD FREE
499991-2
te connectivity / amp
Connector Accessories Snap-In Polarizer Thermoplastic Black Bag Accessories (AMP-LATCH) CONN POLARIZER SNAP-IN Connector Accessories Snap-In Polarizer Thermoplastic Black Bag Product Highlights:Snap-In PolarizerSearch Keywords:input/output, paddleboard, paddle board SNAP-IN POLARIZER, AMP-LATCH HEADER POLARIZER,SNAP-IN,AMP-LATCH,BLACK TE Connectivity AMP-LATCH系列 军用偏振器, 使用于薄型管座 POLARIZER AMP-LATCH 50/BAG
1658621-6
te connectivity / amp
Conn IDC Connector F 26 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 26POS W/POL 15 GOLD 26way polarised skt w/o strain relief Headers & Wire Housings CNTR PLRZD RECPT 26P NOVO Conn IDC Connector F 26 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 26ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board CONNECTOR, HEADER, IDC, 2.54MM, 26WAY Connector,Receptacle;Novo;26;Gold(15);Tin-Lead;0.100in.x0.100in. Plug; IDC; female; PIN:26; IDC; for ribbon cable; 1.27mm Multipole socket DIN 41651 26P, 1658621-6, TE Connectivity TE Connectivity AMP-LATCH Novo 系列 2行 26路 2.54mm节距 直角 电缆安装 母 IDC 连接器 26 NOVO MIL/CTR 15DP,LEAD FREE
1658622-6
te connectivity / amp
Conn IDC Connector F 26 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 26POS W/POL GOLD AMP-Latch receptacle,0.08-0.15mm²,26way Headers & Wire Housings .1CL IDC REC 2X13P C&M 30AU Conn IDC Connector F 26 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 26ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 26POS, 2.54MM Connector,Receptacle;Novo;26;Gold(30);Tin-Lead;0.100in.x0.100in. TE Connectivity AMP-LATCH Novo 系列 2行 26路 2.54mm节距 直角 电缆安装 母 IDC 连接器 26 NOVO MIL/CTR 30DP,LEAD FREE
1-1658526-5
TE Connectivity / AMP
Headers & Wire Housings IDC RCPT 26P Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 26POS VERT GOLD Conn IDC Connector F 26 POS 2.54mm IDT RA Cable Mount Conn IDC Connector F 26 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = AMP-LATCHNumber of Positions = 26ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 26WAY CONNECTOR,RECEPTACLE,AMP-LATCH609,26POSITION,MATINGPOLARIZATION 609-2630LF FEM SOCKT,LEAD FREE
499252-3
te connectivity / amp

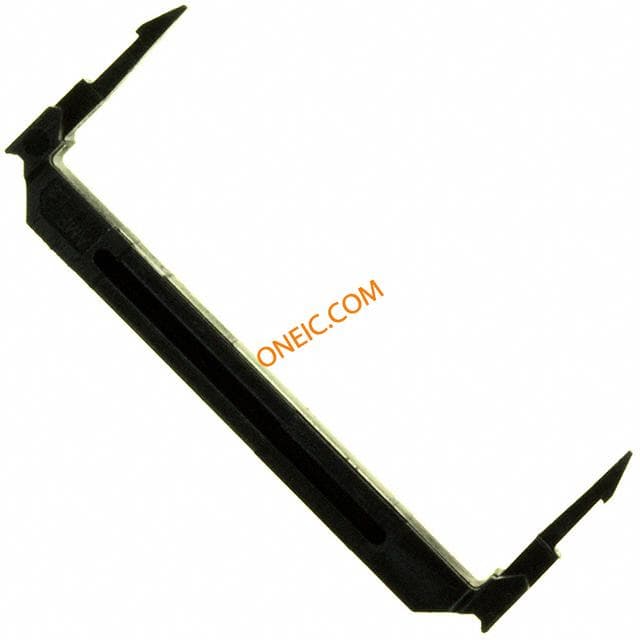

Connector Accessories 26 POS Receptacle Flat Cable Connector Strain Relief Thermoplastic Black Accessories (AMP-LATCH) STRAIN RELIEF 26POS SOCKET CONN 26 way IDC strain relief Headers & Wire Housings STRAIN RELIEF 26POS Connector Accessories 26 POS Receptacle Flat Cable Connector Strain Relief Thermoplastic Black Product Highlights:Strain ReliefNumber of Positions = 26Search Keywords:input/output, paddleboard, paddle board StrainRelief,CableConnector;26;Thermoplastic;UL94V-0;Black Strain relief 26P, 499252-3, TE Connectivity TE Connectivity 26路 应力释放支架, 使用于 AMPLATCH Novo 系列 带状电缆 026 STRAIN RELIEF A-L RCPT
