TB4M
| Manufacturer | |
| Description | XLR Connectors 4 PIN MALE RECEPT Conn Mini XLR Connector M 4 POS Solder Cup ST Panel Mount 4 Terminal 1 Port CONN RCPT 4POS PNL MNT PIN MINI PLUG, TINI, Q-G, PANEL, 4POLE DINPlug;Receptacle;4;Male;125;5A;0.010Ohms(Max.);CopperAlloy Mini XLR 4 Panel-mount male receptacle Tini-Q-G® / TB Soldering Connection nickel-plated, TB4M, Switchcraft |
| Category |
Business
| Lead Time | 44 Days | Other Names | Q1001125 |
| Subcategory | Connector Audio and Video | Product Category | XLR Connectors |
| Standard Package | 1 | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Voltage Rating | 125VAC | Voltage - Supply | Mini (Tiny) XLR |
| Voltage - Working | :125V | Contact Resistance | :10mohm |
| Current Rating (Max) | 5A | Voltage - Input (Min) | 125VAC |
| Voltage - Supply (Min) | 125VAC | ||
Mechanical
| Color | Black | Weight | 0.006 |
| Diameter | 11.9 mm | Material | :Brass, Nickel Plated |
| Packaging | Bulk | Orientation | Keyed |
| Termination | Solder Cup | Mounting Type | Panel Mount |
| Shell Plating | Nickel | Connector Type | Receptacle, Male Pins |
| Contact Finish | Silver | Fastening Type | Latch Lock |
| Mounting Style | Chassis (Panel) | Plating - Body | :Nickel |
| Material - Body | :Metal | Contact Material | Copper Alloy |
| Housing Material | Copper Alloy | Length - Overall | 17.9 mm |
| Termination Style | Solder | Color - Connectors | :Black |
| Number of Contacts | 4 | Panel Cutout Shape | :10.7mm |
| Contact Termination | :Solder | Number of Positions | 4 |
| Shell Size - Insert | Mini XLR | Shell Material, Finish | Copper, Nickel Plated |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Type | Mini XLR Connector | Gender | M |
| Series | TB | Features | Mounting Hardware |
| Product Type | Connectors | Number of Ports | 1 |
Environmental
| Operating Temperature | -55°C ~ 85°C | Operating Temperature - Junction | 85C |
Documents & Media
Similar Parts
TA4MX
Switchcraft
XLR Connectors 4 PIN MALE PLUG Conn Mini XLR Connector M 4 POS Solder ST Cable Mount 4 Terminal 1 Port CONN RCPT CORD 4POS MALE MINI Switchcraft Tini QG Series 4 Way Straight Male Cable Mount Miniature Connector, 5A DINPlug;Plug;4;Male;125;5A;510000Megohms(Min.)@500VDC(ROHS) Switchcraft Tini QG系列 4路 直向 电缆安装 插头, 5A

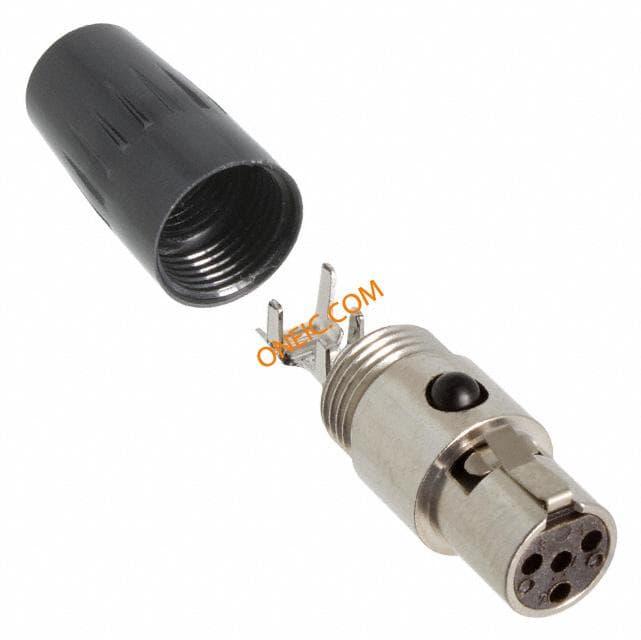

TA4FLX
