TA4FX
| Manufacturer | |
| Description | XLR Connectors 4 PIN FEMALE PLUG Conn Mini XLR Connector F 4 POS Solder ST Cable Mount 4 Terminal 1 Port CONN PLUG CORD 4POS FEMALE MINI SOCKET, TINI, Q-G, IN-LINE, 4POLE DINPlug;Plug;4;Female;125;5A;510000Megohms(Min.)@500VDC(Initial) Mini XLR 4 Cable socket / straight Tini-Q-G® / TA black and silver, TA4FX, Switchcraft Switchcraft Tini QG系列 4路 直向 电缆安装 插座, 5A |
| Category |
Business
| Product Category | XLR Connectors | Standard Package | 1 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Voltage Rating | 125VAC | Voltage - Supply | Mini (Tiny) XLR |
| Voltage - Working | :125V | Contact Resistance | :10mohm |
| Current Rating (Max) | 5A | Voltage - Input (Min) | 125VAC |
Mechanical
| Length | :48.3mm | Weight | 0.006 |
| Diameter | 10.5 | Material | :Brass, Nickel Plated |
| Packaging | Bulk | Orientation | Keyed |
| Termination | Solder | Mounting Type | Cable Mount |
| Shell Plating | Nickel | Connector Type | Plug, Female Sockets |
| Contact Finish | Silver | Fastening Type | Latch Lock |
| Mounting Style | Cable | Plating - Body | :Nickel |
| Material - Body | :Metal | Contact Material | Copper Alloy |
| Housing Material | Zinc Die Cast | Length - Overall | 48 |
| Termination Style | Solder | Color - Connectors | :Black |
| Number of Contacts | 4 | Contact Termination | :Solder |
| Number of Positions | 4 | Shell Size - Insert | Mini XLR |
| Shell Material, Finish | Copper, Nickel Plated | 1st Connector Mounting Type | :Free |
| Diameter - Outside, Non-Expanded | :3mm | ||
Product Info
| Type | Mini XLR Connector | Gender | F |
| Series | TA | Features | Strain Relief |
| Product Type | Connectors | Number of Ports | 1 |
Environmental
| Operating Temperature | -55°C ~ 85°C | ||
Documents & Media
Similar Parts

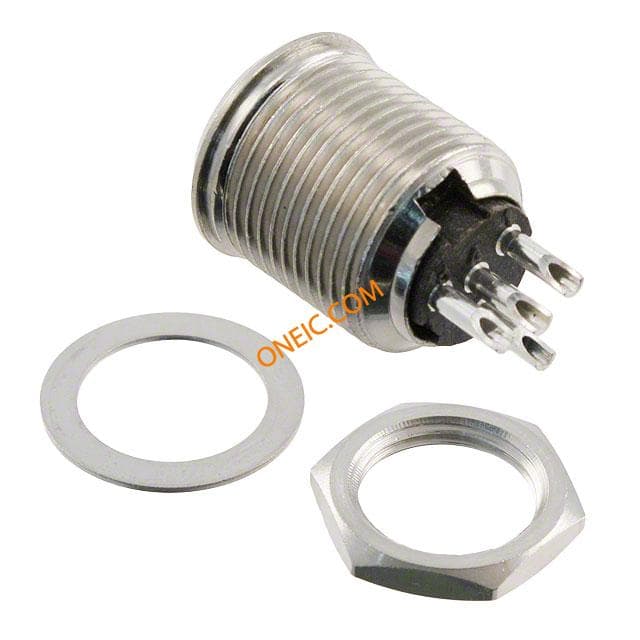

TB4M
